Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: CS500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: cartoon box
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Geometry: |
D/8 |
Light Source: |
LED(Full Band Balanced LED) |
Observer Angles: |
2 And 10 |
Calibration: |
AUTO |
Wavelength Interval: |
10nm |
Wavelength Range: |
400-700nm |
Reflectance Range: |
0-200% |
Reflectance Resolution: |
0.01% |
Repeatability: |
Chromaticity Value: Max. :dE*ab< 0.1 Average :dE*ab< 0.05 Standard Deviation Within ΔE*ab 0.03 (when A White Tile Is Measured 30 Times At 5-seconds Interval) Reflectance: Standard Deviation < 0.1% |
Screen: |
IPS Full Color Screen,2.4 Inches |
Pass Metrology: |
Yes, Metrology Level I |
Geometry: |
D/8 |
Light Source: |
LED(Full Band Balanced LED) |
Observer Angles: |
2 And 10 |
Calibration: |
AUTO |
Wavelength Interval: |
10nm |
Wavelength Range: |
400-700nm |
Reflectance Range: |
0-200% |
Reflectance Resolution: |
0.01% |
Repeatability: |
Chromaticity Value: Max. :dE*ab< 0.1 Average :dE*ab< 0.05 Standard Deviation Within ΔE*ab 0.03 (when A White Tile Is Measured 30 Times At 5-seconds Interval) Reflectance: Standard Deviation < 0.1% |
Screen: |
IPS Full Color Screen,2.4 Inches |
Pass Metrology: |
Yes, Metrology Level I |

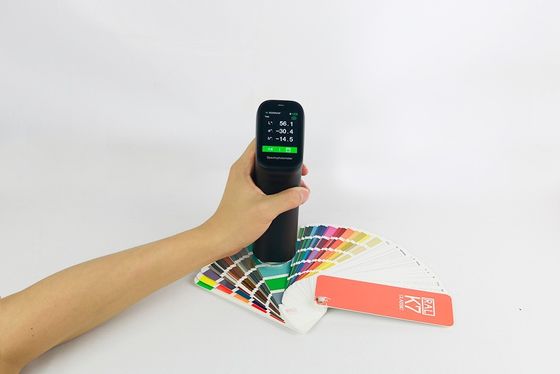

Portable Spectrophotometer CS-500
------Revolution in color measurement
Portable spectrophotometer CS-500 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation... it will fully upgrade the user experience.
Part 1. Product Features
1. 20 kinds of color indexes and 26 kinds of illuminants
Spectrophotometer CS-500 supports 26 kinds of illuminants such as D65/D50,etc. It can get the value of reflectance, CIE-Lab,CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.
2. Excellent inter-instrument Agreement
inter-instrument agreement ＜0.3 which ensures test results consistency of multiple devices.
3. Auto calibration
The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.
4. Multi-function calibration base
The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one. When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.
5. Connect to the mobile device App to expand more functions
Connect to APP to find the similar color from different color swatches. Personal color database can also be established in the cloud and samples saved in cloud can be set into target for color different test. From APP, we can also obtain instrument data or download data to the instrument.
Part 2. Technical Parameter
| Model | Spectrophotometer CS-500 |
| Geometry | D/8 (diffused illumination,8° viewing), Specular Component Included(SCI) |
| Light Source | LED(Full band balanced LED) |
| Color Spaces and Indices | Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313- |
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
| Observer Angles | 2°,10° |
| Sensor | 256 pixel CMOS sensor |
| Calibration | Auto |
| Wavelength Interval | 10nm |
| Wavelength Range | 400-700nm |
| Sphere Size | 40mm |
| Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Repeatability | Chromaticity value: |
| Illumination Area/Aperture | MAV:Φ8mm/Φ11mm |
| Inter-instrument agreement | ΔE*ab＜0.3 |
| Test Time | About 2s |
| Storage | APP mass storage |
| Battery | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
| Screen | IPS Full Color Screen,2.4 inches |
| Interface | USB,Bluetooth |
| Lamp Lifetime | 10 years, 1 million tests |
| Language | Chinese and English |
| Software | Android, IOS, Windows |
| Camera | without |
| Pass Metrology | Yes, metrology level I |
| Instrument Size | L x W x H (77.8mm x 53.2mm x 185.7mm) |
| Weight | About 300g |
| Packing Weight and Size | 1.5kgs |
Part 3. Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Cable |
| 1 | Operating Manual | 1 | Charger base |
Part 4. Application
Part 5. Warranty
1 year
a. One Year Warranty Time.
b. Every instrument comes with verification certification to ensure the accuracy of the test result and save first year calibration cost for customer.
