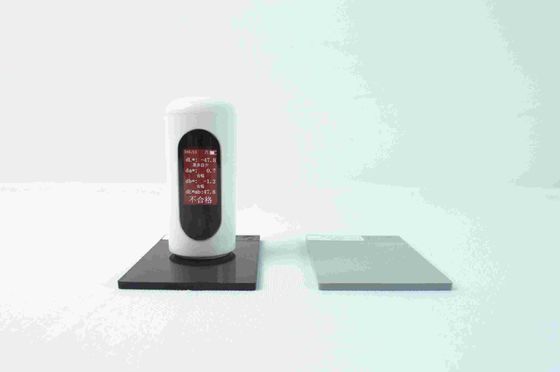

IPS Mini Screen 400-700nm Spectral Colorimeter CR20 Automatic Calibration

Place of Origin China
Brand Name CHNSpec
Certification CE
Model Number CR 20
Minimum Order Quantity 1
Price negotiable
Packaging Details cartoon box
Delivery Time 5-7days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 1000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Light Source LED (Full Wavelength Balanced LED Light Source) Measure Aperture 8mm
Wavelength Interval 10nm Wavelength Range 400-700nm
Repeatability ΔE≤0.1(Measure White Tile 30 Times With 5 Seconds Interval) Measurement Accuracy 0.1
Measure Time 1.0s Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer 2°,10° Display Screen IPS Full Color Screen(135*240,1.14inch)
Calibration Automatic Calibration Software Supported Andriod,IOS,Windows
Battery Rechargeable,5,000 Continuous Tests Interface USB,Bluetooth
Storage APP Mass Storage
High Light

portable spectrophotometer

,

handheld color spectrophotometer

,

Mini Screen Spectral Colorimeter

You can tick the products you need and communicate with us in the message board.
Model CR-10(No screen) CR-20(With screen)
Geometry 45/0
Measure RGB,Hex,Lab,LCh,HSB,LRV,CMYK(A,T,E,M)
index ,XYZ,Yxy,ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00
Light Source LED (Full Wavelength Balanced LED Light Source)
Measure Aperture 8mm
Wavelength Interval 10nm
Wavelength Range 400-700nm
Repeatability ΔE≤0.1(Measure white tile 30 times with 5 seconds interval)
Measurement Accuracy 0.1
Measure Time 1.0s
Interface USB,Bluetooth
Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer 2°,10°
Display Screen
Battery Rechargeable,5,000 continuous tests
Language Chinese ,English
Calibration Automatic Calibration
Software supported Andriod,IOS,Windows
Weight About 75g
Size Diameter:33mm,Height:84mm
Storage APP mass storage
Leave a Message
Model CR-10(No screen) CR-20(With screen)
Product Description

Spectral Colorimeter CR series

IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 0IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 1IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 2IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 3IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 4IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 5IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 6IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 7IPS Mini Screen  400-700nm Spectral Colorimeter  CR20 Automatic Calibration 8

1.Instrument Features

1.Automatic calibration, one-key measurement, get results in 1s

2.Adopt 45°/0 geometry that is more in line with the color evaluation

by the human eye

3.Can be used standalone or connect to App

4.Software supported: Android, iOS, Windows QC software

5.Magnetic calibration box

6.Lipstick-size, more convenient to carry



2.Technical parameter

Model CR-10(No screen) CR-20(With screen) CR-30(with screen)
Geometry 45/0

Measure

index



RGB,Hex,Lab,LCh,HSB,LRV,CMYK(A,T,E,M)

,XYZ,Yxy,ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00

RGB,Hex,Lab,LCh,HSB,LRV,Spectral reflectance,HunterLab,CIE-Luv,

XYZ,Yxy,Color Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),Whiteness

(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBerger

Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),

Blackness(My,dM),Staining Fastness,Color Fastness,

Tint(ASTM E313-00),Color Density CMYK(A,T,E,M),Metamerism Index

Milm,Munsell,Opacity,Color Strength

Light Source LED (Full Wavelength Balanced LED Light Source)
Measure Aperture 8mm
Wavelength Interval 10nm
Wavelength Range 400-700nm
Repeatability ΔE≤0.1(Measure white tile 30 times with 5 seconds interval) ΔE≤0.05(Measure white tile 30 times with 5 seconds interval)
Measurement Accuracy 0.1 0.01
Measure Time 1.0s
Interface USB,Bluetooth
Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer 2°,10°
Display Screen



No screen



IPS Full Color Screen(135*240,1.14inch)
Battery

Rechargeable,5,000 continuous tests



Rechargeable,10,000 continuous tests
Language

Chinese ,English



Calibration Automatic Calibration
Software supported

Andriod,IOS,Windows



Weight About 75g
Size Diameter:33mm,Height:84mm
Storage APP mass storage
