Home > Products > Portable Color Spectrophotometer > 45°/0 Small Spectral Colorimeter CR for 400-700nm color measurement

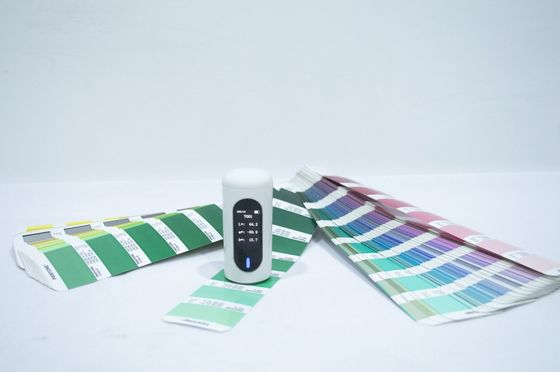

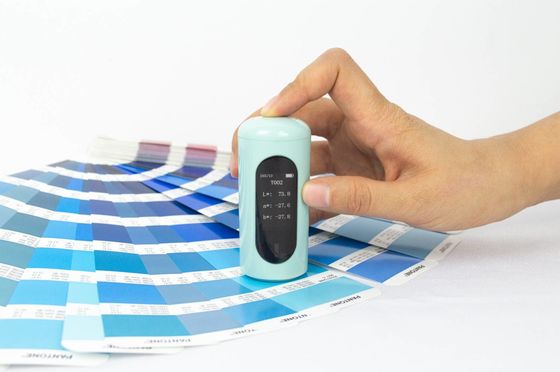

45°/0 Small Spectral Colorimeter CR for 400-700nm color measurement

Product Details

Place of Origin: China

Brand Name: CHNSpec

Certification: CE

Model Number: CR 20

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: cartoon box

Delivery Time: 5-7days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price
Product Details
High Light:

portable spectrophotometer

,

handheld color spectrophotometer

,

Small Spectral Colorimeter

Light Source:
LED (Full Wavelength Balanced LED Light Source)
Measure Aperture:
8mm
Wavelength Interval:
10nm
Wavelength Range:
400-700nm
Repeatability:
ΔE≤0.1(Measure White Tile 30 Times With 5 Seconds Interval)
Measurement Accuracy:
0.1
Measure Time:
1.0s
Illuminants:
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer:
2°,10°
Display Screen:
IPS Full Color Screen(135*240,1.14inch)
Calibration:
Automatic Calibration
Software Supported:
Andriod,IOS,Windows
Battery:
Rechargeable,5,000 Continuous Tests
Interface:
USB,Bluetooth
Storage:
APP Mass Storage
Light Source:
LED (Full Wavelength Balanced LED Light Source)
Measure Aperture:
8mm
Wavelength Interval:
10nm
Wavelength Range:
400-700nm
Repeatability:
ΔE≤0.1(Measure White Tile 30 Times With 5 Seconds Interval)
Measurement Accuracy:
0.1
Measure Time:
1.0s
Illuminants:
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer:
2°,10°
Display Screen:
IPS Full Color Screen(135*240,1.14inch)
Calibration:
Automatic Calibration
Software Supported:
Andriod,IOS,Windows
Battery:
Rechargeable,5,000 Continuous Tests
Interface:
USB,Bluetooth
Storage:
APP Mass Storage
Product Description

Spectral Colorimeter CR series

45°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 045°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 145°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 245°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 345°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 445°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 545°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 645°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 745°/0  Small Spectral Colorimeter CR for 400-700nm color measurement 8

1.Instrument Features

1.Automatic calibration, one-key measurement, get results in 1s

2.Adopt 45°/0 geometry that is more in line with the color evaluation

by the human eye

3.Can be used standalone or connect to App

4.Software supported: Android, iOS, Windows QC software

5.Magnetic calibration box

6.Lipstick-size, more convenient to carry



2.Technical parameter

Model CR-10(No screen) CR-20(With screen) CR-30(with screen)
Geometry 45/0

Measure

index



RGB,Hex,Lab,LCh,HSB,LRV,CMYK(A,T,E,M)

,XYZ,Yxy,ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00

RGB,Hex,Lab,LCh,HSB,LRV,Spectral reflectance,HunterLab,CIE-Luv,

XYZ,Yxy,Color Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),Whiteness

(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBerger

Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),

Blackness(My,dM),Staining Fastness,Color Fastness,

Tint(ASTM E313-00),Color Density CMYK(A,T,E,M),Metamerism Index

Milm,Munsell,Opacity,Color Strength

Light Source LED (Full Wavelength Balanced LED Light Source)
Measure Aperture 8mm
Wavelength Interval 10nm
Wavelength Range 400-700nm
Repeatability ΔE≤0.1(Measure white tile 30 times with 5 seconds interval) ΔE≤0.05(Measure white tile 30 times with 5 seconds interval)
Measurement Accuracy 0.1 0.01
Measure Time 1.0s
Interface USB,Bluetooth
Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer 2°,10°
Display Screen



No screen



IPS Full Color Screen(135*240,1.14inch)
Battery

Rechargeable,5,000 continuous tests



Rechargeable,10,000 continuous tests
Language

Chinese ,English



Calibration Automatic Calibration
Software supported

Andriod,IOS,Windows



Weight About 75g
Size Diameter:33mm,Height:84mm
Storage APP mass storage
