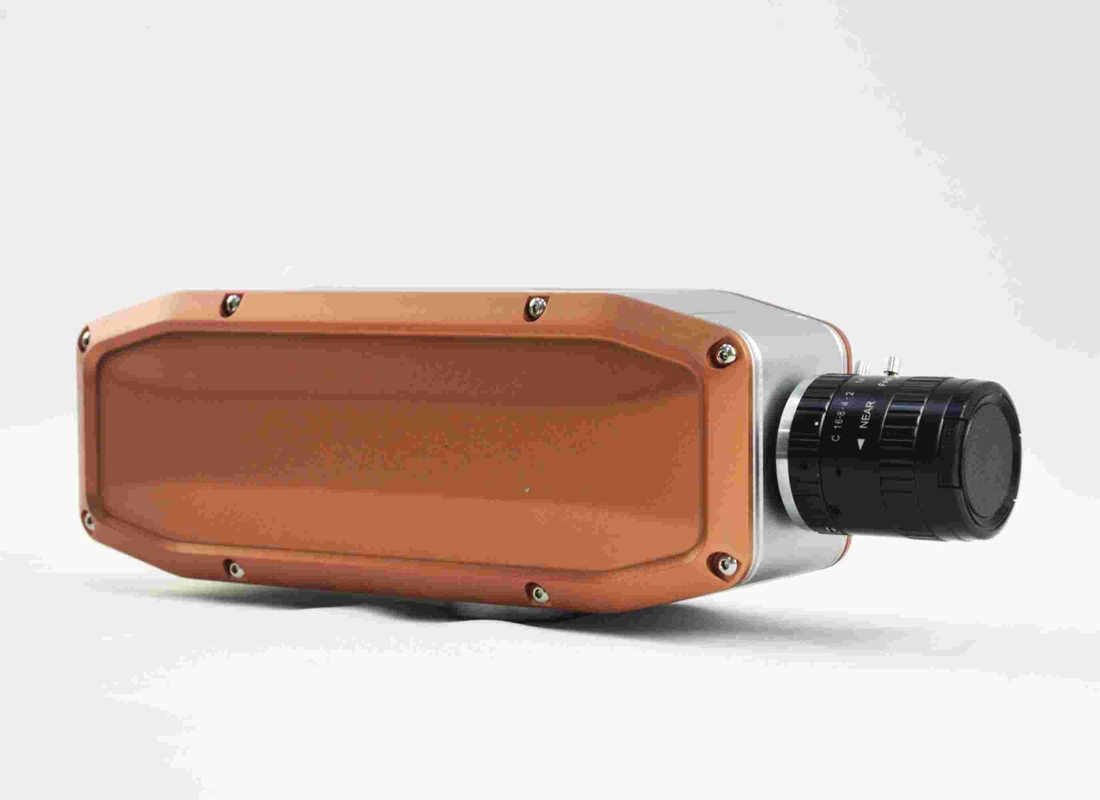

Orange Hyperspectral Camera 400 - 1000nm Wavelength Range

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number FS-13
Minimum Order Quantity 1
Price negotiable
Packaging Details Carton box
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Illuminant Passive (without Illuminant Inside Device) Spectroscopic Method Grating Spectroscopy
Wavelength Range 400-1000nm Spectral Bands 1200
Spectral Sampling/pixel 2.5nm (max. 1.5nm) Slit Width 25um
Transmission Efficiency >60% Spatial Pixel Number 1920
Imaging Speed Full Spectral Range 128Hz, 3300Hz After ROI SNR(Peak) 600/1
High Light

Orange Hyperspectral Camera


1000nm Wavelength Hyperspectral Camera


Hyperspectral Imaging Camera Orange

Leave a Message
Product Description

China Orange Hyperspectral Camera 400-1000nm Wavelength Range


FigSpec Series Cheap Hyperspectral Imaging Camera Price With Visible Wavelength Range 400-700nm

FigSpec FS Series Cheap Hyperspectral Imaging Camera Price with Visible / NIR Wavelength Range 400-700nm and 400-1100nm


Hyperspectral Camera Introdcution


The FX series hyperspectral camera adopts a high light transmittance optical design (F/1.7), which raises the camera's light-gathering ability to a new level.Only need a line light source to meet the equipment needs.However, other spectroscopic technologies (adjustable filters and linear filters, etc.) require a larger area of light source and tens of times the intensity of the light source when the data obtained has the same signal-to-noise ratio.Covering 400-100nm, using scan imaging method, the full-spectral imaging speed can reach 670FPS, and it has a band selection (ROI) function to achieve higher speed.


Hyperspectral camera FS series is designed for industrial and laboratory use. It work in a line-scan mode in the visible and near-infrared (VNIR) area. It is widely used to scan the sample and get its reflectance under each pixel. The result can be used for color quality control or material seperation by different content. It can be used in lab or installed in the production line. It is widely used in agriculture industry, food insutry, screen industry, textile industry and many other industries.


Orange Hyperspectral Camera 400 - 1000nm Wavelength Range 0


Hyperspectral Camera Advantages


1. Machine vision, color measurement, visible light / near-infrared detection hyperspectral solution

2. Spectral range:400-700nm / 400-1000nm, spectral sampling/pixel 2.5nm, max. 1.5nm (Changing the slit width can achieve higher spectral resolution, but will affect the signal strength)

3. Imaging speed: Full Spectral range 128Hz,3300Hz after ROI

4. Support multi-region ROI

5. Color difference test : print, textile and other industries surface color test, texture detection, with special light source and control system, the repeatability of single pixel of color measurement can reach dE*ab<0.1.


Hyperspectral Camera Working Principle


Orange Hyperspectral Camera 400 - 1000nm Wavelength Range 1



Hyperspectral Camera Technical Data


Orange Hyperspectral Camera 400 - 1000nm Wavelength Range 2
