Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: FS-63
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: gotiable
Packaging Details: carton box
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 1000 per month
Spectroscopic Method: |
Transmission Grating Spectroscopy |
Spectral Range: |
900-1700nm |
Number Of Spectral Channels: |
254 |
Spectral Resolution: |
8nm |
Slit Width: |
25um |
Transmission Efficiency: |
＞60% |
Stray Light: |
＜0.5% |
Number Of Spatial Pixels: |
320 |
Pixel Size: |
30um |
Imaging Speed: |
200fps |
Spectroscopic Method: |
Transmission Grating Spectroscopy |
Spectral Range: |
900-1700nm |
Number Of Spectral Channels: |
254 |
Spectral Resolution: |
8nm |
Slit Width: |
25um |
Transmission Efficiency: |
＞60% |
Stray Light: |
＜0.5% |
Number Of Spatial Pixels: |
320 |
Pixel Size: |
30um |
Imaging Speed: |
200fps |

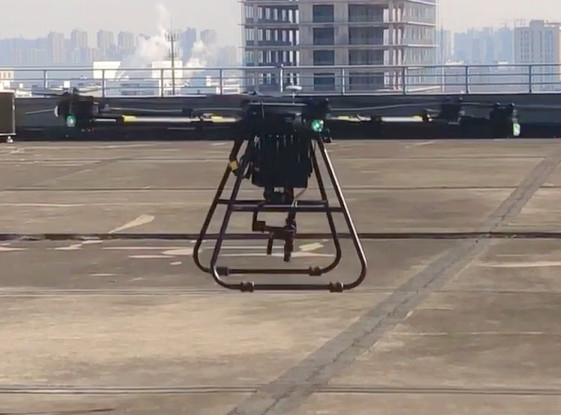

| Symmetrical motor wheelbase | 1133 mm |
| Weight(Including 6 TB47S batteries) | 9.5 kg |
| Weight(Including 6 TB47S batteries) | 10 kg |
| Recommended maximum takeoff weight | 15.5 kg |
| Overall dimension | 1668 mm × 1518 mm × 727 mm |
| (Propeller, boom and GPS support are all deployed with landing gear) | |
| 437 mm × 402 mm × 553 mm | |
| (The boom and GPS bracket are folded without landing gear) | |
| Hover accuracy(P-GPS) | Vertical: ± 0.5 m, horizontal: ± 1.5 m |
| Maximum rotation angular speed | Pitch axis: 300 °/s, heading axis: 150 °/s |
| Maximum pitch angle | 25° |
| Maximum rising speed | 5 m/s |
| Maximum descent speed | 3 m/s |
| Maximum allowable wind speed | 8 m/s |
| Maximum horizontal flight speed | 65 km/h(Windless environment) |
| Maximum takeoff altitude | 2170 slurry:2500 m,2195 slurry:4000 m |
| Hover time (6 TB47S batteries) | No load:32 min,Load 6 kg:16 min |
| Hover time (6 TB48S batteries) | No load:38 min,Load 5.5 kg:18 min |
| Operating ambient temperature | -10 ~ 40℃ |
| Spectroscopic method | Transmission grating spectroscopy |
| Spectral range | 900-1700nm |
| Number of spectral channels | 254 |
| Spectral resolution | 8nm |
| Slit width | 25um |
| Transmission efficiency | ＞60% |
| Stray light | ＜0.5% |
| Number of spatial pixels | 320 |
| Pixel size | 30um |
| Imaging speed | 200fps |
| Detector | InGaAs |
| SNR(Peak) | 600/1 |
| Output | Gigabit network interface |
| Interface | C-Mount |
| Parts | USB3.0 or Gigabit network |
| ROI | Single area |
| Software interface |
*The instrument can communicate with PLANTEYE ®, FIGSPEC ®, SCICHROMA ® One of the software carries out data communication and provides it in the annex of the response document. The authorization document of the brand owner and the trademark registration certificate of the brand owner. *With ROI function, it can achieve ROI in multiple regions |
| Technical certification |
※ Relevant technologies and products have won relevant awards and certificates of national instrument industry association ※ Relevant technologies and products have won relevant awards and certificates of national industry-university-research association ※ Relevant technologies and products have won the third prize (including) of the Provincial Science and Technology Progress Award ※ Relevant technologies have obtained domestic invention patents and American invention patents to ensure the international scope It has independent intellectual property rights. |
