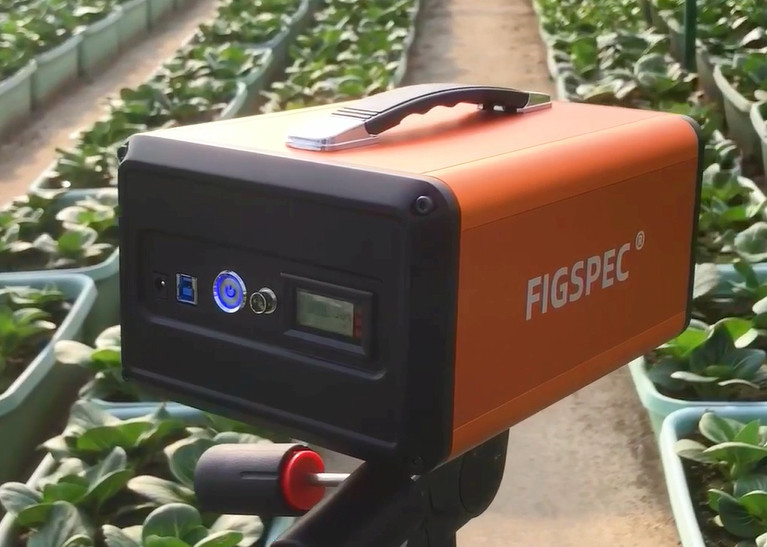

5.86um Pixel Hyperspectral Imaging Camera With CMOS Detector

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number FS-12
Minimum Order Quantity 1
Price negotiable
Packaging Details carton box
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month
Product Details
Spectroscopic Method Grating Spectroscopy Wavelength Range 400-1000nm
Spectral Bands 300 Spectral Sampling/pixel 2.5nm (max. 1.5nm)
Slit Width 30um Pixel Size 5.86um
Imaging Speed Full Spectral Range 41Hz, 390Hz After ROI Detector CMOS
High Light

CMOS Detector Hyperspectral Imaging Camera

,

5.86um Pixel Hyperspectral Imaging Camera

,

400nm Hyperspectral Imaging Camera

Leave a Message
Product Description

Hyperspectral Imaging Camera equal to Specim Hyperspectral Camera with Competitive Price



Hyperspectral Imaging Camera Advantages



1. Spectral range:400-1000nm, spectral sampling/pixel 2.5nm, max. 1.5nm (Changing the slit width can achieve higher spectral resolution, but will affect the signal strength)

2. Imaging speed: Full Spectral range 128Hz,3300Hz after ROI

3. Machine vision, color measurement, near-infrared detection hyperspectral solution

4. Color difference test : print, textile and other industries surface color test, texture detection, with special light source and control system, the repeatability of single pixel of color measurement can reach dE*ab<0.1.

5. Support multi-region ROI





Hyperspectral Imaging Camera Working Principle



5.86um Pixel Hyperspectral Imaging Camera With CMOS Detector 0

Line Scan Measurement



5.86um Pixel Hyperspectral Imaging Camera With CMOS Detector 1

Hyperspectral Imaging Camera Working Principle





Hyperspectral Imaging Camera Technical Parameter



Model FS-10 FS-11 FS-12 FS-13
Illuminant Passive (without illuminant inside device)
Spectroscopic method Grating spectroscopy
Wavelength Range 400-700nm 400-1000nm
Spectral bands 150 300
Spectral sampling/pixel 2.5nm (max. 1.5nm)
Slit width 30um
Transmission Efficiency >50% >60%
Stray light <0.5%
Spatial Samples Max. 1920 (set from software)
Pixel Size 5.86um
Imaging speed Full Spectral range 41Hz, 390Hz after ROI

Full Spectral range 128Hz,

3300Hz after ROI

Full Spectral range 41Hz, 390Hz after ROI

Full Spectral range 128Hz,

3300Hz after ROI

Detector CMOS
SNR(Peak) 600/1
Camera Output USB3.0
Interface C-Mount
Accessory USB3.0 cable
ROI Single Band Freely selectable multiple bands Single Band Freely selectable multiple bands




Hyperspectral Imaging Camera Application



Hyperspectral imaging camera is widely used to scan the sample and get its reflectance under each pixel. It is no limit on the measurement distance. The result can be used for color quality control or material seperation by different content. It can be used in lab or installed in the production line. It is widely used in agriculture industry, food insutry, screen industry, textile industry and many other industries.



5.86um Pixel Hyperspectral Imaging Camera With CMOS Detector 2
