FigSpec FS-50 Multi Spectral Camera With Real-Time Data Acquisition

Name: FigSpec FS-50 Multi Spectral Camera With Real-Time Data Acquisition
Brand: CHN spec
SKU: FS-50
Rating: 4.6 (142 reviews)

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: FS-50

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton box

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                UAV Multi Spectral Camera, Global Shutter Multi Spectral Camera, Real-Time Data Acquisition Multispectral Camera


Visualfield:	25.36°	Ground Resolution:	2.8cm@h120m
Optical Window:	High Transmittance Optical Glass Window	Covering Width:	54m@h120m
Imaging Sensor:	1/1.1 Inch CMOS	Space Resolution:	1920
Sampling Rate:	128 Line/S	Effective Pixels:	1920
Shutter Type:	Global Shutter	Digitalizing Bit:	12bit

Visualfield:	25.36°
Ground Resolution:	2.8cm@h120m
Optical Window:	High Transmittance Optical Glass Window
Covering Width:	54m@h120m
Imaging Sensor:	1/1.1 Inch CMOS
Space Resolution:	1920
Sampling Rate:	128 Line/S
Effective Pixels:	1920
Shutter Type:	Global Shutter
Digitalizing Bit:	12bit

Product Description

FS-50 series multi-spectral camera

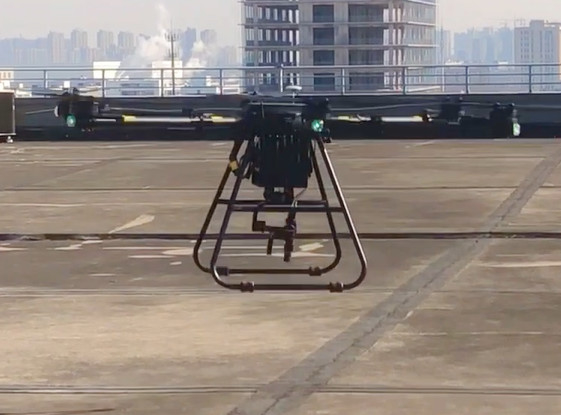

The FigSpec FS-50 series is a new generation of unmanned multi-spectral camera launched by Color Spectrum Technology Company, adapted to the DJI M350/M300RTK flight platform, with 30-180 spectral channels and 2K resolution.

It can meet the application needs of precision agriculture, military defense and homeland security, disaster prevention and forestry monitoring, river and lake ecology, target identification and other industries.

·Ultra-high spectral channels: 30-180 spectral channels (different models)

·2K spatial resolution

·Global shutter, 12bit high precision sampling data

·Ground station real-time preview data acquisition

·DJI X-Port control and power supply, 512GSSD mass storage

·Dji M350/M300 RTK UAV customization, plug and play

·FIGSPEC UAV real-time flight control software, FIGSPEC Merage puzzle software, FIGSPEC Studion image analysis software

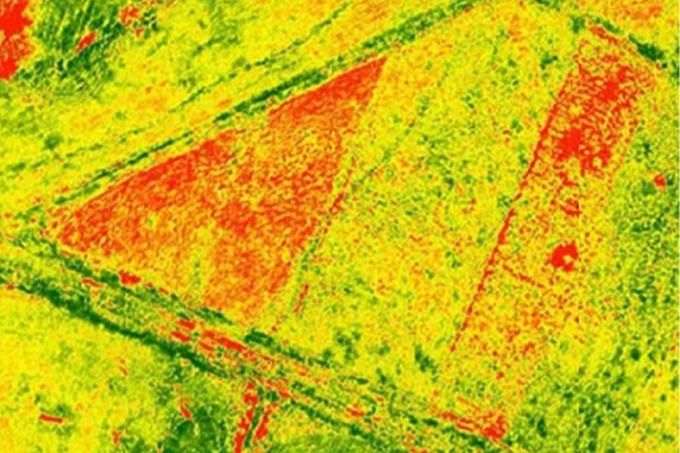

Crop growth assessment

FigSpec Studio software is built with NDVI and other vegetation factors to accurately quantify the state of vegetation canopy at different spatial scales, quantitatively assess the health, stress and growth of crops and vegetation, and provide data support for crop growth assessment, yield prediction, disease and pest detection, etc.

彩谱多光谱相机

Coverage evaluation

Based on the spectral fingerprint information of plants, accurate classification of plants in the region and crop area statistics are carried out to provide quantitative vegetation canopy data to provide data support for scientific research and production of agriculture and forestry ecological industry.

彩谱多光谱相机

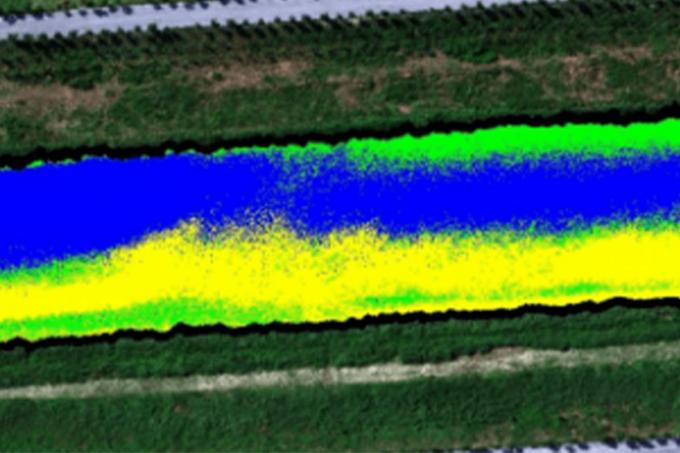

Water quality analysis and monitoring

Using the spectral data and chemical analysis results, the analysis model is constructed to realize the inversion of the classification and water quality parameters of black and odorous water bodies. Combined with spatial information to monitor the impact of domestic sewage and industrial wastewater on surrounding water bodies, help pollution source investigation and water environment assessment.

彩谱多光谱相机

Water eutrophication monitoring

Spectral data are used to form a classification index to monitor water eutrophication and conduct spatial information statistics. Following the evaluation standards of water eutrophication status, it assists in analyzing water pollution sources such as farmland, aquaculture and fishery, and provides data and powerful data collection tools for pollution source investigation and water environment assessment.

彩谱多光谱相机

model	FS-50/30	FS-50/60	FS-50/90	FS-50/120	FS-50/150	FS-50/180
Number of spectral channels	30	60	90	120	150	180
Spectral channel wavelength	400-1000nm output one wavelength every 20nm	400-1000nm output one wavelength every 10nm	400-1000nm output one wavelength every 6.66nm	400-1000nm output one wavelength per 5nm	400-1000nm output one wavelength per 4nm	400-1000nm output one wavelength per 3.33nm
spectrum resolution ratio /Half-wave width	3.5nm	3.5nm	3.5nm	2.5nm	2.5nm	2.5nm
Space resolution	1920
sampling rate	128 line/S
imaging sensor	1/1.1 inch CMOS
effective pixels	1920
Shutter type	global shutter
digitalizing bit	12bit
Visualfield	25.36°
ground resolution	2.8cm@h120m
Covering width	54m@h120m
optical window	High transmittance optical glass window
Main engine size	≤15595119mm
Main engine weight	≤840g
Installation/power supply port	X-Port
Workloss	45w
picture format	12bit.SPE.spe(compatible withenvithird party analysis software such as envi)
Data storage space	512SSD
application software	FIGSPEC UAV,FIGSPEC Merage puzzle software,FIGSPEC Studion image analysis software
photography method	real-time collection
