Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System:: |
8/D,SCI |
Storage Memory:: |
1000 Pcs Sample |
Measurement Time:: |
0.5 Second |
Repeatability:: |
Delta E*ab 0.1 |
Languages:: |
English And Chinese |
Measuring Caliber:: |
8mm |
Instrument Size:: |
77x86x210mm |
Measuring Range:: |
L*:1-100 |
Light Source:: |
LED |
Device Weight:: |
550g (without Battery) |
Illumination System:: |
8/D,SCI |
Storage Memory:: |
1000 Pcs Sample |
Measurement Time:: |
0.5 Second |
Repeatability:: |
Delta E*ab 0.1 |
Languages:: |
English And Chinese |
Measuring Caliber:: |
8mm |
Instrument Size:: |
77x86x210mm |
Measuring Range:: |
L*:1-100 |
Light Source:: |
LED |
Device Weight:: |
550g (without Battery) |

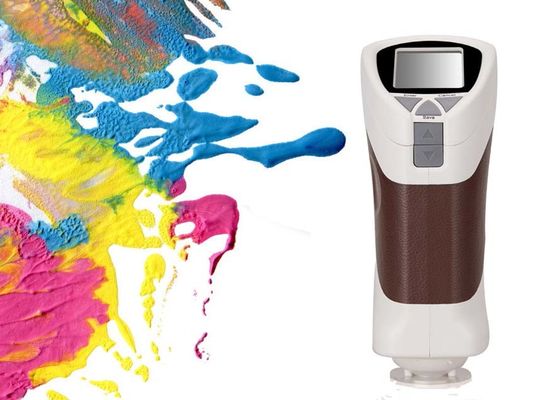

Digital laboratory portable hunterlab spectral pocket paint food fruit colorimeter
1.Color Meter Introduction
Colorimeter is also called color meter. It is widely used in different industries such as plastic cement, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
2.Color Meter Advantages
1).Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
2).Multiple color space display color values : L*a*b,L*c*h,Yxy.
3).Can Test Degree of Whiteness and Yellow Degree
4).Ergonomic Design
5).Free Color Management Software
6).Establish the Prototype Data L*a*b* by manually
7).The device could store 10 standard sample groups and every sample group could store 100 sample data.
3.Color Meter Technical Data
| Type | CS-10 |
| Illumination system | 8/d(8°/diffused illumination) |
| SCI | |
| Testing Port Diameter | About 8mm |
| Display | Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value |
| Measuring conditions | CIE 10° standard observer; CIE D65 light source |
| Measuring range | L*:1-100 |
| Repeatability | Standard deviation within delta E*ab*,below 0.1(testing condition: measure the white calibration board for average) |
| Storage | 10 sets of standard samples; up to 100 under each standard sample |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| languages | Chinese, English |
| Power | Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter |
| port | USB2.0 printer |
| weight | 550g |
| Size | 77×86×210mm |
4.Color Meter Longest Guarantee Time
a. One Year Guarantee Time.
b. If testing result is not correct, we will refund to you.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
5.More Product Pictures of Color Meter
6.Color Meter Free Color Management Software
Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier. (Software english version is also available.)
Packing Material:Canvas bag with carton box
Packing Size:230x230x120mm
Packing Weight:0.56kgs
Delivery time:1-5 days after payment received.
8.Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
9. Our Services Team
Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. If any need or questions about our products, please do not hesitate to contact me. You are warmly welcome to visit and purchase from us.
Q: Are you trading company or manufacturer ?
A: We are factory located in Hangzhou city. Welcome to come to visit and purchase from us.
A: Generally it is 1-3 working days if the goods are in stock.If not, we will need 3-15 working days to prepare the products.
A: Yes, and customer need to pay for the freight.
A: Payment is 100% T/T in advance.
A:Our MOQ is 1 set. If you order more than 5 sets, we will give quantity discount.
