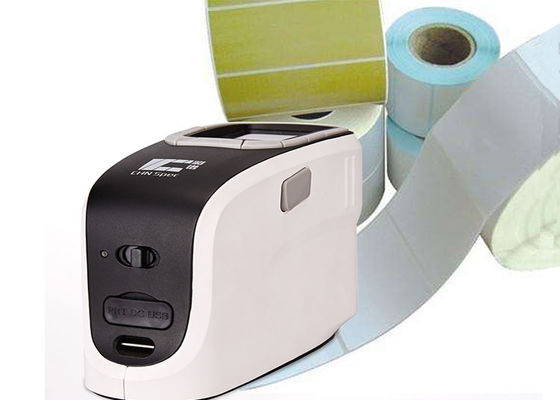

CS -580 CHNSpec Handheld Colorimeter Auto Test Color Machine With CE Certification
|Place of Origin||China|
|Brand Name||CHN spec|
|Minimum Order Quantity||1|
|Packaging Details||Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm|
|Delivery Time||5-7 days|
|Payment Terms||L/C, T/T, Western Union, MoneyGram|
|Supply Ability||1000 per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Illumination Light Source||CLEDs||Sensor||Dual Light Path Sensor Array|
|Wavelength Interval||10nm||Half Spectral Width||5nm|
|Reflectivity Range||0-200%||Reflectivity Resolution||0.01%|
|Measurement Time Interval||2s||Measurement Time||1s|
|Interface||USB||Data Storage||20000 Test Results|
colour matching spectrophotometer,
color spectrum analyzer,
CHNSpec Handheld Colorimeter
CS-580 CHNSpec Auto Test Color Machine Plastic Colorimeter with CE Certification
Plastic Colorimeter Introduction
Plastic colorimeter made by CHNSpec tech adopts high technology from overseas.It tests based on the condition of D/8 that is internationally used.It is designed for measuring material surface color.It is widely used for color measurement of most industry especially for plastic, chemical,textile, plastic,food and other products’ color quality control.It could work with micro printer for printing testing result anywhere.Spectrophotometer can provide reflectacne data of 30 wavelengths spaced at 10nm intervals between 400-700nm.
Plastic Colorimeter Specifications
|Measure Conditions||d/8,SCS optical engine,ETC, SCI/SCE simultaneous measurement|
|Size of Integrating Sphere||Φ40mm,Alvan diffused reflection surface coating|
|Illumination Light source||CLEDs(entire wavelength balanced LED light source)|
|Measure Range / resolution factor||0-200% , 0.0001|
|Measurement Light Source||
|Data being displayed||reflectance data/figure, sample color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area, history data color simulation, manual input standard sample, generate testing report|
|Measurement time interval||2 seconds|
|Color space||CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance|
|Color difference formulas||ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00|
|Other colorimetric indices||
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),
|Repeatability||light splitting reflectivity : standard deviation within 0.08%|
|color values: ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum:0.05|
|Inter-instrument agreement||ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)|
|Work temperature range||0~45℃, relative humidity 80% or below( at 35°C ),no condensation|
Plastic Colorimeter Competitive Advantage
1). Includes PC software to manage data
2). Can connect to micro-printers for printing
3). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
4). Uses LED light source; high capacity rechargeable lithium-ion battery
5). Pre-locating panel design for easy instrument calibration
6). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
7). PC software for easy measurement data management
8). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
Plastic Colorimeter Free Color QC Software
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Plastic Colorimeter Packing List
Packing Material:Canvas bag with carton box
Delivery time:3-20 days after payment received.
|1||Main Instrument||1||Power Line|
|1||Operating Manual||1||USB Cable|
|1||Driving Software||1||Black/White Calibration Tile|
|1||Color QC Software||1||Verification Certification|
|1||Packing List||1||Warranty Card
Plastic Colorimeter Longest Guarantee Time
a. One Year Guarantee Time.
b. If testing data is not correct, we can do refund.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
