CHNSpec Technology （Zhejiang）Co.,Ltd chnspec@colorspec.cn 86-571-85888707-813
Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
8mm |
Storage: |
10000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
8mm |
Storage: |
10000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |

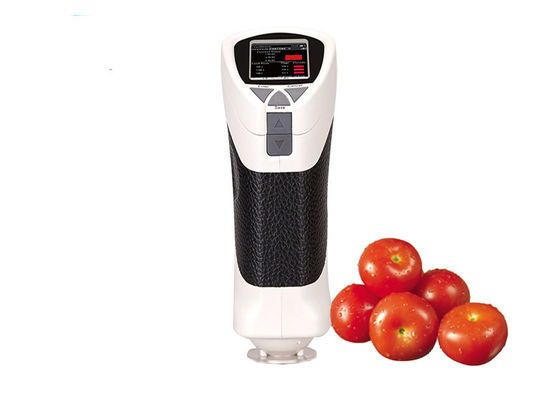

Colorimeter Instrument Color Testing Meter for Whiteness and Yellowness Index
Introduction:
CS-200 colorimeter is specially designed for color measurement of opaque materials. It could test the color difference for paint, plastic, fruit, meat, tomato, colorant,pigment and other solid materials. It measures the sample color space L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
Competitive Advantage
1). Free Color QC Software
2). Ergonomic Design
3). Can Measure Whiteness and Yellow Index
4). Multiple color space display color values : L*a*b,L*c*h,Yxy
5). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability
6). Establish the Prototype Data L*a*b* by manually
7). The device could store 100 standard sample groups and every sample group could store 100 sample data.
Specifications
| Type | CS-200 |
| Illumination system | 8/d(8°/diffused illumination) |
| SCI | |
| Testing Aperture Diameter | 8mm (option 4mm) |
| Measuring conditions | CIE 10° standard observer; CIE D65 light source |
|
Display
|
Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value YI (yellowness index) and WI (whiteness index) |
| Measuring range | L*:1-100 |
| Repeatability | Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board for average) |
| Storage | 100 sets of target; 100 pcs samples under each target |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| languages | Chinese, English |
| Power | Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter |
| port | USB2.0 printer |
Free Colorimeter QC Software
Our colorimeter comes with mature PC software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.
Packing List
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
