Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: inner box: Foam Package outer box: Carton box Size: 25.7x23x12cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
8/d,SCI |
Measuring Caliber: |
8mm |
Storage: |
10000 Test Results |
Measurement Time Interval: |
2 Seconds |
Measurement Time: |
0.5 Seconds |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Device Weight: |
550g (without Battery) |
Illumination System: |
8/d,SCI |
Measuring Caliber: |
8mm |
Storage: |
10000 Test Results |
Measurement Time Interval: |
2 Seconds |
Measurement Time: |
0.5 Seconds |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Device Weight: |
550g (without Battery) |

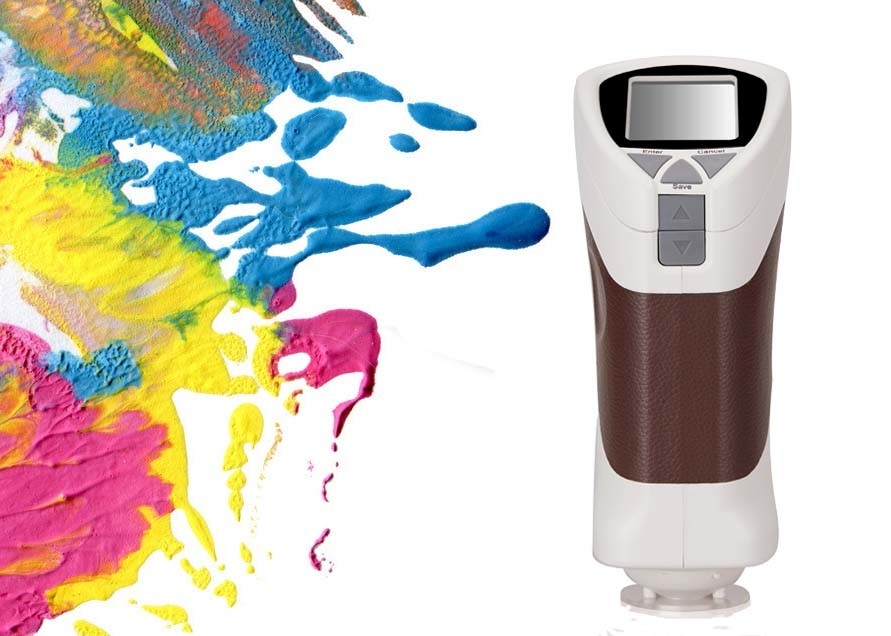

Cheap Food and Fruit Testing Equipment Colorimeter Price
Colorimeter Introduction
Colorimeter is widely used in paint industry for measuring the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space. It can also be used for other industries such as plastic,textile, printing, weaving and dyeing.It could be widely used for testing the materials' color of difference.
Colorimeter Specification
| Type | CS-10 |
| Illumination system | 8/d(8°/diffused illumination) |
| SCI | |
| Testing Aperture and Display |
8mm Chromaticity Value:L*a*b, L*C*h, Delta E*ab, XYZ,Yxy, relative RGB, Color Difference:Delta E*ab, Delta E*ch |
| Measuring conditions | CIE 10° standard observer; CIE D65 light source |
| Measuring range | L*:1-100 |
| Repeatability | Standard deviation within delta E*ab*,below 0.1(testing condition: measure the white calibration board for average) |
| Storage | 10 sets of standard samples; up to 100 under each standard sample |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| languages | Chinese, English |
| Power | Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter |
| port | USB2.0 printer |
| weight | 550g |
| Size | 77×86×210mm |
Colorimeter Advantage
1). Simple operation
2). Large screen for data viewing
3). Low power consumption
4). Free color quality control software
5). Lowest price
6). White/black calibration for accurate test
7). 8mm aperture with vertical structure
8). Easier for color quality control
9). Best choice for color evaluation and data management
10). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
Colorimeter Free Color QC Software
Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.
Colorimeter Packing List
Packing Material:foam with carton box
Packing Size:230x230x240mm
Packing Weight:0.88kgs
Delivery time:3-20 days after payment received
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
Colorimeter Certification
CHNSpec Tech are specialized on manufacturing colorimeters, spectrophotometers, haze meters and gloss meters for products color, haze and glossiness measurement. Our products have gotten 26 patents including 1 American patent for our products. Our instrument stability and precision is very good with CE certification. You are welcome to contact and purchase from us.
