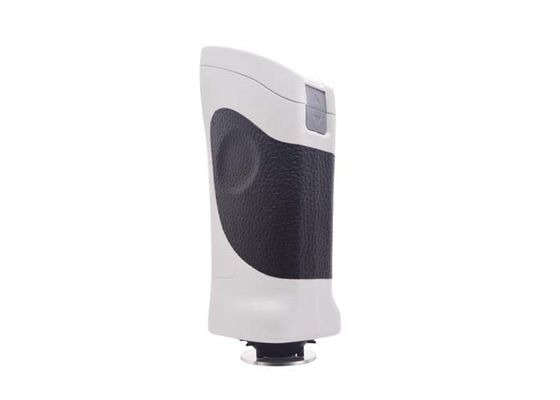

Reliable Colour Measuring Instruments / Color Measurement Equipment Ergonomic Design
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-286 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm |
| Delivery Time | 5-7 days |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Illumination System | D/8,SCI | Measuring Caliber | 11mm (optional 15mm,4mm,6mm) |
|---|---|---|---|
| Storage | 20000 Samples | Instrument Size | 77x86x210mm |
| Measurement Time | 2 Second | Measuring Range | 0-200% |
| Repeatability | Below 0.08 | Measuring Light Source | LED |
| Languages | English And Chinese | Device Weight | 550g (without Battery) |
| Light Source Lifetime | 5 Years, 1.5 Million Times | Interface | USB2.0 |
| High Light | multi parameter colorimeter,colour difference meter |
||
Product Description
Colorimeter Instrument Color Testing Meter for Whiteness and Yellowness
Introduction
Colorimeter instrument is also called spectro colorimeter or colorimeter. It is widely used in different industries such as plastic, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.The colorimeter could be widely used for any industries for color difference measurement especially for plastic, paint, fruit, textile,printing, automobile accessories, etc.
Specifications
| Type | CS-286 |
| Illumination | di/8 |
| Sphere Size | Φ40mm |
| Illumination Light source | CLED |
| Wavelength | 400-700nm |
| Spectrum Resolution | 10nm |
| Measurement Time | 2s |
| Repeatability |
Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) |
| Observe Angles | 2° and 10° |
| Light Source |
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83, TL84,NBF,U30,CWF,U35 |
| Display | Chromaticity value(L*a*b,L*C*h),delta E value,pass/fail,color tendency, average, generate test report,spectrum reflectance figure /data |
| With camera to see the measurement area, spectrum reflectance figure /data, manual input target data | |
| Color Difference | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00 |
| Color Space | CIE-L*a*b,L*C*h, L*u*v ,XYZ,Yxy, reflectance |
| Other | WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73) |
|
metameric index ,staining fastness , Color fastness |
|
| Other Function | camera view, input color swatches |
| Operating Temperature | 5~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Power | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V |
Advantages
1). Spectro colorimeter:The highest precision colorimeter
2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy
3). Patented technology guarantees measurement stability
4). Obtain national metrology certification
5). Ergonomic Design
6). Mass storage memory:100 pcs targets and 200 pcs samples
Colorimeter Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
