Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: cs-580
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Measurement Time Interval: |
2s |
Measurement Time: |
1s |
Interface: |
USB |
Data Storage: |
20000 Test Results |
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Measurement Time Interval: |
2s |
Measurement Time: |
1s |
Interface: |
USB |
Data Storage: |
20000 Test Results |

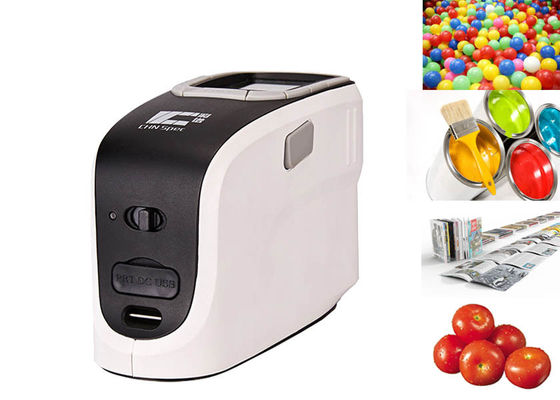

Handy Textile Plastic Spectrophotometer Fabric Whiteness Meter Measurement
Introduction:
Our spectrophotometer is designed for measuring color.It adopts high technology from overseas.It tests based on the condition of D/8 that is internationally used.It is widely used for color measurement of any industry especially for chemical,textile, plastic,food and other products’ color quality control.It could work with micro printer for printing testing result anywhere.Spectrophotometer can provide reflectacne data of 30 wavelengths spaced at 10nm intervals between 400-700nm.
Specifications:
| Type | CS-580 |
| Measure Conditions | d/8,SCS optical engine,ETC, SCI/SCE,simultaneous measurement |
| Size of Integrating Sphere | Φ40mm,Alvan diffused reflection surface coating |
| Illumination Light source | CLEDs(entire wavelength balanced LED light source) |
| Sensor | Double Optical Array Sensor |
| Wavelength Range | 400-700nm |
| Measure Range / resolution factor | 0-200% , 0.0001 |
| Observation Angle | 2°/10° |
| Measurement Light Source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84 |
| Data being displayed | reflectance data/figure, sample color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area, history data color simulation, manual input standard sample, generate testing report |
| Measurement time interval | 2 seconds |
| Measuring Aperture | Φ8mm |
| Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance |
| Color difference formulas | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 |
| Other colorimetric indices |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Tint(ASTM E313,CIE,Ganz), Metamerism index Milm, Stick color fastness, Color fastness |
| Repeatability | light splitting reflectivity : standard deviation within 0.08% |
| color values: ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum:0.05 | |
| Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Display | True color screen that includes all colors |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
Competitive Advantage:
1). Pre-locating panel design for easy instrument calibration
2). PC software for easy measurement data management
3). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
4). Uses LED light source; high capacity rechargeable lithium-ion battery
5). Includes PC software to manage data
6). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
7). Can connect to micro-printers for printing
8). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tile |
| 1 | Color QC Software | 1 | Verification Certification |
| 1 | Packing List | 1 | Warranty Card |
