Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-650
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Illumination Light Source: |
CLEDs |
Sensor: |
Xenon Lamp |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Measurement Time Interval: |
1s |
Measurement Time: |
1s |
Interface: |
USB |
Data Storage: |
20000 Test Results |
Illumination Light Source: |
CLEDs |
Sensor: |
Xenon Lamp |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Measurement Time Interval: |
1s |
Measurement Time: |
1s |
Interface: |
USB |
Data Storage: |
20000 Test Results |

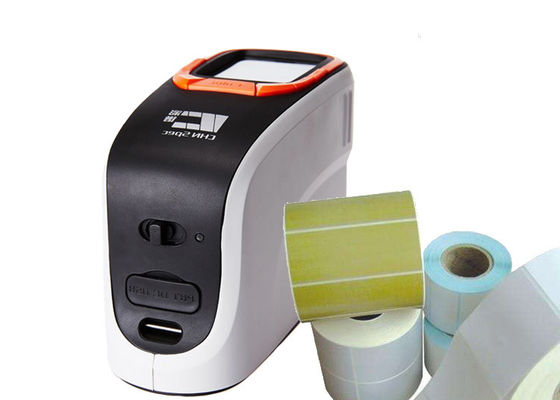

Xenon Lamp Color Matching Spectrophotometer Price With UV Light Source
Introduction:
Our device is widely used for color testing of painting,textile, plastic, food, building material and other products’ color for quality control.Our spectrophotometers adopt high technology from overseas. It tests based on the condition of D/8 that is internationally used. It could connect with color matching software to get formular. Our CS-650 spectrophotometer is with UV light source, so it is suitable for measurement the color of fluorescent products.
Specifications:
| Type | CS-650 |
| Illumination | d/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement.(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards) |
| Size of integrating sphere | Φ40mm,Alvan diffused reflection surface coating |
| Illumination Light source | Halogen lamp |
| Sensor | dual light path sensor array |
| Wavelength range | 360-740nm |
| Reflectivity resolution | 0.01% |
| Observation angle | 2°/10° |
| Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF |
| Data being displayed | SPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report |
| Measurement time interval | 1 seconds |
| Measurement time | 1 second |
| Color space |
CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance |
| Color difference formulas |
ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 |
| Other colorimetric indices |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) |
| Repeatability | light splitting reflectivity:standard deviation within 0.08% |
|
color values:ΔE*ab<=0.02, |
|
| Battery capacity | rechargeable, 10000 continuous tests, 7.4V/6000mAh |
| Light source longevity | 5 years, 1.5 million tests |
| Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Size | 181*73*112mm(L*W*H) |
| Weight | about 550g(does not include battery's weight) |
| Display | True color screen that includes all colors |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
Competitive Advantage:
1). Includes PC software to manage data
2). Obtained Metrology Accreditation Certificate in China
3). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
4). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
5). Can connect to micro-printers for printing
6). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
7). Uses LED light source; high capacity rechargeable lithium-ion battery
8). It is with pantone color number matching function.After measurement it could match 3 pantone color number which is similar color to the sample.
Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tile |
| 1 | Color QC Software | 1 | Verification Certification |
| 1 | Packing List | 1 | Warranty Card |
