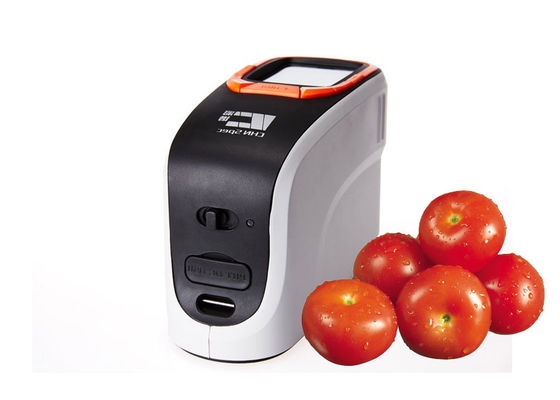

Paint Sphere Portable Color Spectrophotometer Dual Light Path Sensor Array
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-660 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Illumination Light Source | CLEDs | Sensor | Dual Light Path Sensor Array |
|---|---|---|---|
| Wavelength Interval | 10nm | Half Spectral Width | 5nm |
| Reflectivity Range | 0-200% | Reflectivity Resolution | 0.01% |
| Measurement Time Interval | 2s | Measurement Time | 0.5s |
| Interface | USB | Data Storage | 20000 Test Results |
| High Light | colour measurement spectrophotometer,color spectrum analyzer,Paint Sphere Color Spectrophotometer |
||
Product Description
Handheld Paint Sphere Color Spectrophotometer For Packing Material
Introduction:
Our spectrophotometers adopt high technology from overseas. It tests based on the condition of D/8 that is internationally used. Our device is widely used for color testing for any industry especially for painting,textile, plastic cement, food, building material and other products’ color quality control. It could connect with color matching software.
Specifications:
| Type | CS-660A/B |
| Illumination | d/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement.(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards) |
| Size of integrating sphere | Φ40mm,Alvan diffused reflection surface coating |
| Illumination Light source | CLEDs(entire wavelength balanced LED light source) |
| Sensor | dual light path sensor array |
| Wavelength range | 400-700nm |
| Observation angle | 2°/10° |
| Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF |
| Data being displayed | SPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report |
| Measurement time interval | 0.5 seconds |
| Measurement time | 1 second |
| Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance |
| Color difference formulas | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 |
| Other colorimetric indices | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) |
| Repeatability | light splitting reflectivity:standard deviation within 0.08% |
color values:ΔE*ab<=0.015 | |
| Battery capacity | rechargeable, 10000 continuous tests, 7.4V/6000mAh |
| Light source longevity | 5 years, 1.5 million tests |
| Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Size | 181*73*112mm(L*W*H) |
| Weight | about 550g(does not include battery's weight) |
| Display | True color screen that includes all colors |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
Competitive Advantage:
1). Modern and fashionable design based on human engineering
2). Includes PC software to manage data
3). Easy to operate and compact operation interface
4). Pre-locating panel design for easy instrument calibration
5). Large TFT display screen
6). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
7). Uses LED light source; high capacity rechargeable lithium-ion battery
8). Can connect to micro-printers for printing
Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tile |
| 1 | Color QC Software | 1 | Verification Certification |
| 1 | Packing List | 1 | Warranty Card |
Longest Guarantee Time:
a. One Year Guarantee Time.
b. If testing data is not correct, we can do refund.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
