Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |

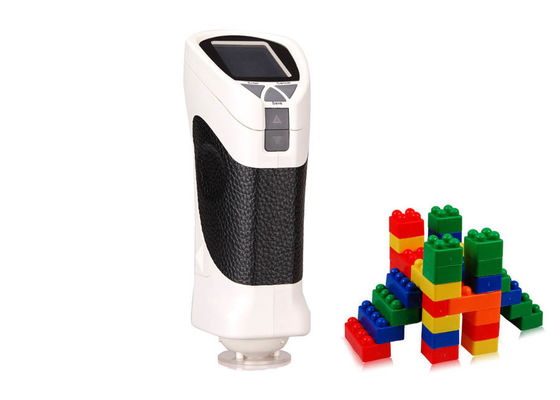

Textile QC Color Difference Testers Portable Dental Colorimeter For Paint
Introduction:
CS-200 Color Checker Introduction is specially designed for chemical powder yellowness or whiteness measurement.It is with sealed aperture to make sure material will not enter into instrument.Its standard accessories contains one holder for powder and cream type material. It could test the color difference for meat,coffee, tomato sauce, colorant,pigment and other materials. It measures the sample color space L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
Specifications:
| Type | CS-200 |
| Illumination system | 8/d(8°/diffused illumination) |
| SCI | |
| Testing Aperture Diameter | 8mm (option 4mm) |
| Measuring conditions | CIE 10° standard observer; CIE D65 light source |
|
Display
|
Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value YI (yellowness index) and WI (whiteness index)
|
| Measuring range | L*:1-100 |
| Repeatability | Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board for average) |
| Storage | 100 sets of standard samples; up to 100 under each standard sample |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| languages | Chinese, English |
| Power | Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter |
| port | USB2.0 printer |
| weight | 550g |
| Size | 77×86×210mm |
Competitive Advantage:
1). Best choice for color evaluation and data management
2). High Quality & Reasonable Price
3). For YI and WI Measurement
4). Higher Accurate and Stable Performance
5). PC Software for Data Management
6). Mass Storage Memory
7). Average for Multi Points Measurement
8). Chinese / English Language Switching
9). National Metrology Accreditation
10). Low power consumption,USB or Bluetooth(optional) for data transfer
Free Colorimeter QC Software:
Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
