Home > Products > Portable Color Spectrophotometer > CLEDs Illumination Color Measuring Device 20000 Test Results Data Storage

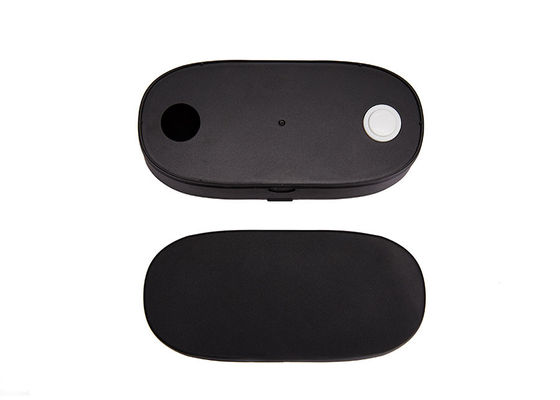

CLEDs Illumination Color Measuring Device 20000 Test Results Data Storage

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-600

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
Highlight:

colour matching spectrophotometer

,

color spectrum analyzer

,

CLEDs Illumination Color Measuring Device

Illumination Light Source:
CLEDs
Sensor:
Dual Light Path Sensor Array
Wavelength Interval:
10nm
Half Spectral Width:
5nm
Reflectivity Range:
0-200%
Reflectivity Resolution:
0.01%
Measurement Time Interval:
0.5s
Interface:
USB
Data Storage:
20000 Test Results
Working Temperature:
0-45℃
Illumination Light Source:
CLEDs
Sensor:
Dual Light Path Sensor Array
Wavelength Interval:
10nm
Half Spectral Width:
5nm
Reflectivity Range:
0-200%
Reflectivity Resolution:
0.01%
Measurement Time Interval:
0.5s
Interface:
USB
Data Storage:
20000 Test Results
Working Temperature:
0-45℃
Product Description

Hot Sale Painting Paper Color Spectrum Measurement Spectrophotometer Price



Introduction:

Our pantone spectrophotometer is designed for color measurmeent.It adopts high technology from overseas. It tests based on the condition of D/8 that is internationally used. It could connect with color matching software to get recipes/formula.Our device is widely used for color measurement for any industry especially for plastic,rubber,painting,textile,food,building material and other products’ color quality control.


Specifications:

Type CS-600A/B (A and B are for different testing diameters.)
Illumination d/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement.(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphere Φ40mm,Alvan diffused reflection surface coating
Illumination Light source CLEDs(entire wavelength balanced LED light source)
Wavelength Range 400-700nm
Observation angle 2°/10°
Measurement light source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayed SPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measurement time 1 second
Color space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunterlab,Munsell MI,CMYK
Color difference formulas ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00, ΔEab(Hunter),555,color classification
Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)
Metamerism index Milm, Stick color fastness, Color fastness, ISO luminance, 8 gloss, A density, T density

Repeatability light splitting reflectivity:standard deviation within 0.08%

color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),
Maximum:0.05

Battery capacity rechargeable, 10000 continuous tests, 7.4V/6000mAh
Light source longevity 5 years, 1.5 million tests
Inter-instrument agreement ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size 181*73*112mm(L*W*H)
Weight about 550g(does not include battery's weight)
Display True color screen that includes all colors
Work temperature range 0~45℃, relative humidity 80% or below( at 35°C ),no condensation



Competitive Advantage:

1). Obtained Metrology Accreditation Certificate in China
2). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
3). Modern and fashionable design based on human engineering

4). Includes PC software to manage data

5). Can connect to micro-printers for printing

6). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate

7). PC software for easy measurement data management


Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
CLEDs Illumination Color Measuring Device 20000 Test Results Data Storage 0


Packing List:

Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.

Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tile
1 Color QC Software 1 Verification Certification
1 Packing List 1 Warranty Card








Company Information:



Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. If any need or questions about our products, please do not hesitate to contact me. You are warmly welcome to visit and purchase from us.
