550g Weight Colour Matching Device , Color Measurement Instruments High Efficiency

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-280
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Illumination System D/8,SCI Measuring Caliber 11mm (optional 15mm,4mm,6mm)
Storage 1000 Test Results Instrument Size 77x86x210mm
Measurement Time 2 Second Measuring Range 0-200%
Repeatability Below 0.08 Measuring Light Source LED
Languages English And Chinese Device Weight 550g (without Battery)
High Light

colour measurement device

,

color measurement instruments

Leave a Message
Product Description

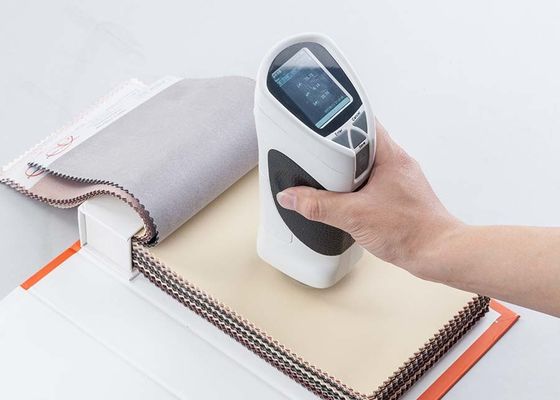

Portable CIE LAB Spectro Colorimeter Measure Manufacturer For Food



Introduction:

Colorimeter is also called color measurement Instrument.It is widely used in different industries such as skin,comestic,textile,plastic,printing, paint,weaving,dyeing,etc.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.The colorimeter could be widely used for any industries for color difference measurement especially for paint, textile,printing, automobile accessories, etc.


Specifications:



Type CS-280 CS-280+
Illumination di/8(Diffused Illumination, 8 degree viewing)
(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard)
Size of integrating sphere Φ40mm, Avian diffused reflection surface coating
Sensor array sensor
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Measurement Aperture 11mm,optional 4mm,6mm,15mm
Repeatability Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50 and D65
Display Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report
  With camera to see the measurement area
Color Difference Formula ΔE*ab,ΔE*CH
Color Space CIE-L*a*b,L*C*h CIE-L*a*b,L*C*h,XYZ,Yxy
Other

WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby)
YI(ASTM D1925,ASTM E313-00,ASTM E313-73)

Data Storage 20000 samples
Light Source Lifetime 5 years, 1.5 million times
Other Function without camera view, input color swatches
Screen Panchromatic True Color Screen
Language Chinese and English
Interface USB2.0
Operating Temperature 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Storage temperature range -25℃ to 55℃,relative humidity 80% or below(at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size 77×86×210mm
Weight About 550g
Standard Accessories adapter, operating manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, portable bag, electronic color charts
Optional Micro Printer
Color Matching System Not matched



Competitive Advantage:

1). Adopt CLEDs light source---spectrally balanced LED light source
2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy
3). Spectro colorimeter:The highest precision colorimeter
4). Automatic gloss compensation technology
5). Patented technology guarantees measurement stability
6). Every test calibration technology
7). Mass storage memory:100 pcs targets and 200 pcs samples


Colorimeter Free Color QC Software:

Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
550g Weight Colour Matching Device , Color Measurement Instruments High Efficiency 0





Packing List:



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.

Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List





Longest Guarantee Time

brightness tester

a. One Year Guarantee

b. If testing result is not correct, we will refund to you

c. Provide testing report for every device to assure the data authority which saves calibration cost for 1 year.
