Home > Products > Paint Matching Spectrophotometer > USB 2.0 Interface Image Color Analyzer , Paint Spectrophotometer Equipment For Automobile Accessories

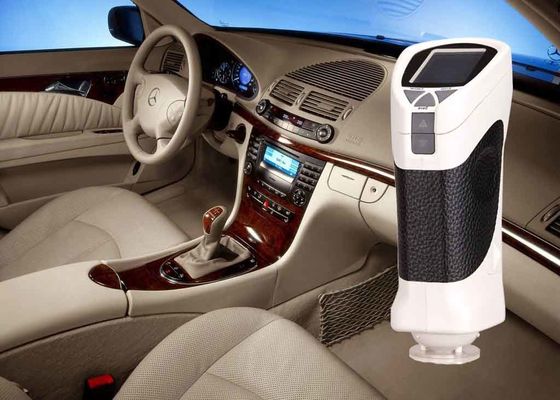

USB 2.0 Interface Image Color Analyzer , Paint Spectrophotometer Equipment For Automobile Accessories

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-286

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm

Delivery Time: 5-7 days

Payment Terms: T/T, Western Union, MoneyGram,Paypal

Supply Ability: 1000 per month

Get Best Price
Product Details
Highlight:

colour measurement device

,

color measurement instruments

Illumination System:
D/8,SCI
Measuring Caliber:
11mm (optional 15mm,4mm,6mm)
Storage:
20000 Test Results
Instrument Size:
77x86x210mm
Measurement Time:
2 Second
Measuring Range:
0-200%
Repeatability:
Below 0.08
Measuring Light Source:
LED
Languages:
English And Chinese
Device Weight:
550g (without Battery)
Illumination System:
D/8,SCI
Measuring Caliber:
11mm (optional 15mm,4mm,6mm)
Storage:
20000 Test Results
Instrument Size:
77x86x210mm
Measurement Time:
2 Second
Measuring Range:
0-200%
Repeatability:
Below 0.08
Measuring Light Source:
LED
Languages:
English And Chinese
Device Weight:
550g (without Battery)
Product Description

High Quality Visible Light Spectrophotometer For Automobile Accessories





Introduction:



Color meter is also called colorimeter. It is widely used in different industries such as plastic cement, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.The colorimeter could be widely used for any industries for color difference measurement especially for plastic, paint, fruit, textile,printing, automobile accessories, etc.





Specifications:



Type CS-286
Illumination di/8(Diffused Illumination, 8 degree viewing)
Size of integrating sphere Φ40mm, Avian diffused reflection surface coating
Illumination Light source CLED
Sensor array sensor
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Measurement Aperture 11mm,optional 4mm,6mm,15mm
Repeatability Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF,U35
Display Chromaticity value(L*a*b,L*C*h),delta E value,pass/fail,color tendency, average, generate test report,spectrum reflectance figure /data
With camera to see the measurement area, spectrum reflectance figure /data, manual input target data
Color Difference Formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
Color Space CIE-L*a*b,L*C*h, L*u*v ,XYZ,Yxy, reflectance
Other WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73)



metameric index ,staining fastness , Color fastness

Data Storage 20000 samples
Light Source Lifetime 5 years, 1.5 million times
Other Function camera view, input color swatches
Screen Panchromatic True Color Screen
Language Chinese and English
Interface USB2.0
Operating Temperature 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size 77×86×210mm
Weight About 550g
Standard Accessories adapter, operating manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, portable bag, electronic color charts
Optional Micro Printer





Competitive Advantage:



1). Patented technology guarantees measurement stability

2). Mass storage memory:100 pcs targets and 200 pcs samples

3). accuracyObtain national metrology certification

4). Spectro colorimeter:The highest precision colorimeter

5). Ergonomic Design

6). Adopts spectral measurement working theory which greatly improve colorimeter





Colorimeter Free Color QC Software:



Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.

USB 2.0 Interface Image Color Analyzer , Paint Spectrophotometer Equipment For Automobile Accessories 0







Packing List:



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.

Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List





Longest Guarantee Time

brightness tester

a. One Year Guarantee

b. If testing result is not correct, we will refund to you

c. Provide testing report for every device to assure the data authority which saves calibration cost for 1 year.
