Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-280
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |

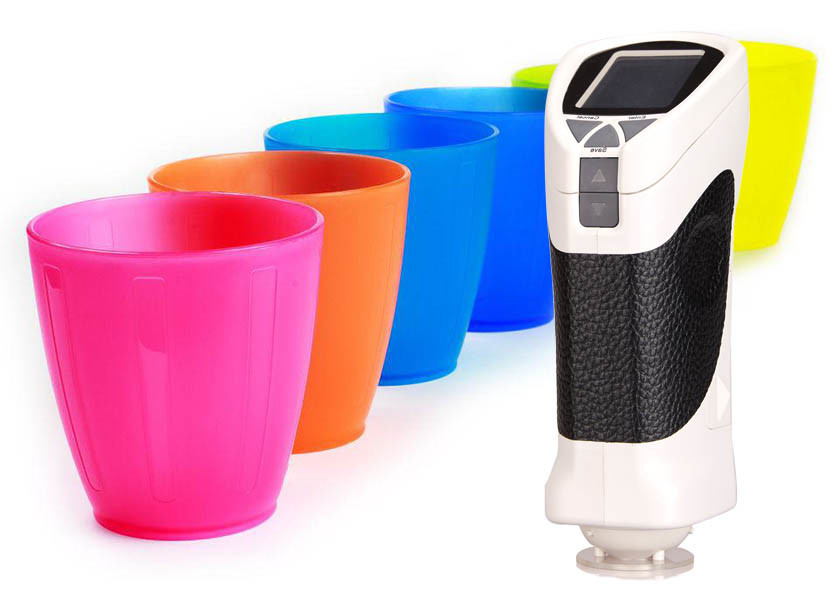

Hot Sale Colorimeter Spectrophotometer For Paper Plastic Measurement
Introduction:
Colorimeter is also called color measurement Instrument.It is widely used in different industries such as skin,comestic,textile,plastic,printing, paint,weaving,dyeing,etc.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.The colorimeter could be widely used for any industries for color difference measurement especially for paint, textile,printing, automobile accessories, etc.
Specifications:
| Type | CS-280 | CS-280+ |
| Illumination | di/8(Diffused Illumination, 8 degree viewing) (conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard) |
|
| Size of integrating sphere | Φ40mm, Avian diffused reflection surface coating | |
| Sensor | array sensor | |
| Wavelength | 400-700nm | |
| Spectrum Resolution | 10nm | |
| Measurement Time | 2s | |
| Measurement Aperture | 11mm,optional 4mm,6mm,15mm | |
| Repeatability | Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) | |
| Observe Angles | 2° and 10° | |
| Light Source | A,C,D50 and D65 | |
| Display | Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report | |
| With camera to see the measurement area | ||
| Color Difference Formula | ΔE*ab,ΔE*CH | |
| Color Space | CIE-L*a*b,L*C*h | CIE-L*a*b,L*C*h,XYZ,Yxy |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) |
|
| Data Storage | 20000 samples | |
| Light Source Lifetime | 5 years, 1.5 million times | |
| Other Function | without | camera view, input color swatches |
| Screen | Panchromatic True Color Screen | |
| Language | Chinese and English | |
| Interface | USB2.0 | |
| Operating Temperature | 5~45℃, relative humidity 80% or below( at 35°C ),no condensation | |
| Power | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V | |
| Optional | Micro Printer | |
| Color Matching System | Not matched | |
Competitive Advantage:
1). Obtain National Metrology Certification
2). Patented Technology for stability
3). Adopt CLEDs light source---spectrally balanced LED light source
4). Optional accessories for different functions
5). Highest precision colorimeter
6). Adopt spectral measurement theory for high accuracy
7). Automatic gloss compensation technology
8). Every test calibration technology
9). SCS optional engine
Colorimeter Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
Longest Guarantee:
a. One Year Guarantee
b. If testing result is not correct, we will refund to you
c.Provide testing report for every device to assure the data authority which saves calibration cost for 1 year.
