Digital Dying Colour Testing Equipment , Data Colour Spectrophotometer 0 - 45℃ Working Temp

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-600

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

colour measurement spectrophotometer

,

color spectrum analyzer

,

Digital Dying Colour Testing Equipment

Illumination Light Source:
CLEDs
Sensor:
Dual Light Path Sensor Array
Wavelength Interval:
10nm
Half Spectral Width:
5nm
Reflectivity Range:
0-200%
Reflectivity Resolution:
0.01%
Measurement Time Interval:
0.5s
Interface:
USB
Data Storage:
20000 Test Results
Working Temperature:
0-45℃
Illumination Light Source:
CLEDs
Sensor:
Dual Light Path Sensor Array
Wavelength Interval:
10nm
Half Spectral Width:
5nm
Reflectivity Range:
0-200%
Reflectivity Resolution:
0.01%
Measurement Time Interval:
0.5s
Interface:
USB
Data Storage:
20000 Test Results
Working Temperature:
0-45℃
Product Description

Digital Dying Spectrophotometer Color Measuring Device For Plastic


Introduction:

Our pantone spectrophotometer is designed for color measurmeent.It adopts high technology from overseas. It tests based on the condition of D/8 that is internationally used. Our device is widely used for color measurement for any industry especially for plastic,rubber,painting,textile,food,building material and other products’ color quality control.It could connect with color matching software to get recipes/formula.


Specifications:


TypeCS-600A/B (A and B are for different testing diameters.)
Illuminationd/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement.(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphereΦ40mm,Alvan diffused reflection surface coating
Illumination Light sourceCLEDs(entire wavelength balanced LED light source)
Wavelength Range400-700nm
Observation angle2°/10°
Measurement light sourceA,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayedSPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measurement time1 second
Color spaceCIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunterlab,Munsell MI,CMYK
Color difference formulasΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00, ΔEab(Hunter),555,color classification
Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)
Metamerism index Milm, Stick color fastness, Color fastness, ISO luminance, 8 gloss, A density, T density

Repeatabilitylight splitting reflectivity:standard deviation within 0.08%

color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),
Maximum:0.05

Battery capacityrechargeable, 10000 continuous tests, 7.4V/6000mAh
Light source longevity5 years, 1.5 million tests
Inter-instrument agreementΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size181*73*112mm(L*W*H)
Weightabout 550g(does not include battery's weight)
DisplayTrue color screen that includes all colors
Work temperature range0~45℃, relative humidity 80% or below( at 35°C ),no condensation



Competitive Advantage:

1). Obtained Metrology Accreditation Certificate in China
2). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
3). Modern and fashionable design based on human engineering
4). Easy to operate and compact operation interface
5). Large data storage space
6). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
7). Can connect to micro-printers for printing
8). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
9). Uses LED light source; high capacity rechargeable lithium-ion battery
Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.

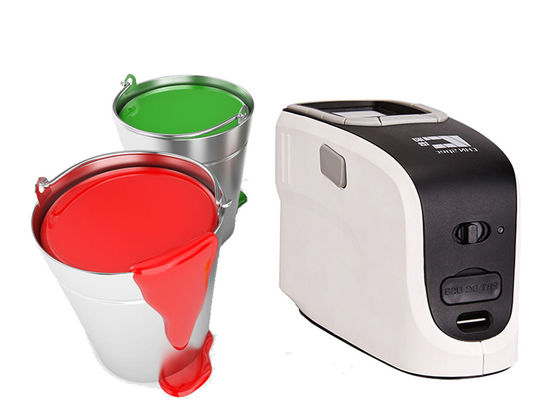

Digital Dying Colour Testing Equipment , Data Colour Spectrophotometer 0 - 45℃ Working Temp 0


Packing List:

Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.

Qty.NameQty.Name
1Main Instrument1Power Line
1Operating Manual1USB Cable
1Driving Software1Black/White Calibration Tile
1Color QC Software1Verification Certification
1Packing List1Warranty Card
