CHNSpec Technology （Zhejiang）Co.,Ltd chnspec@colorspec.cn 86-571-85888707-813
Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-260
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |

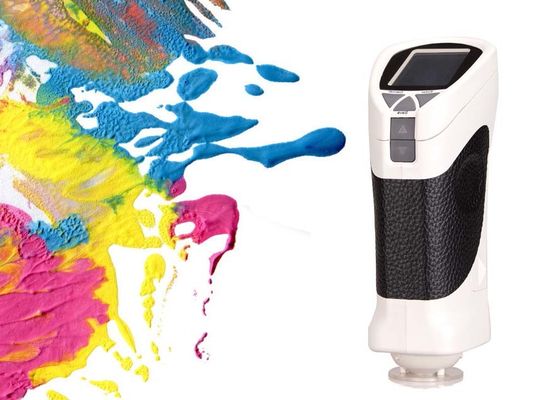

High Quality Pantone Color Reader Instrument Paper Colorimeter For Sale
Introduction:
Colorimeter is also called color difference tester and widely used in different industries for color difference test such as paper, electroplating oxide, paint, plastic cement, printing, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.Our colorimter could work with micro printer to print the testing result anywhere and anytime.
CS-260 is with build-in pantone color chart.After color measurement,it will match the most similar pantone color number automatically.
Specifications:
| Type | CS-260 |
| Color Swatches | Pantone |
| Illumination system | 8/d(8°/diffused illumination) |
| SCI | |
| Testing Port Diameter | About 8mm |
| Measuring conditions | CIE 10° standard observer; CIE D65 light source |
| Measuring range | L*:1-100 |
| Repeatability | Standard deviation within delta E*ab*, below 0.08(testing condition: measure the white calibration board 80 times for average) |
| Storage | 100 sets of standard samples; up to 100 under each standard sample |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| languages | Chinese, English |
| Power | Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter |
| port | USB2.0 printer |
| weight | 550g |
| Size | 77×86×210mm |
Competitive Advantage:
1). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
2). Test different points on sample and get the average value. It is widely used for color control whose color is not uniform.
3). The device could store 100 standard sample groups and every sample group could store 100 sample data.
4). Establish the Prototype Data L*a*b* by manually
5). Free Color Management Software
6). Ergonomic Design
7). Multiple color space display color values : L*a*b,L*c*h,Yxy.
Free Colorimeter QC Software:
Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
Application
The colorimeter could be widely used for any industries for color difference measurement especially for plastic, paint, fruit, textile,printing, automobile accessories, etc.
