Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-210
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
8mm |
Storage: |
10000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
0.5 Second |
Measuring Range: |
L*:1-100 |
Repeatability: |
Standard Deviation Below 0.1 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
8mm |
Storage: |
10000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
0.5 Second |
Measuring Range: |
L*:1-100 |
Repeatability: |
Standard Deviation Below 0.1 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |

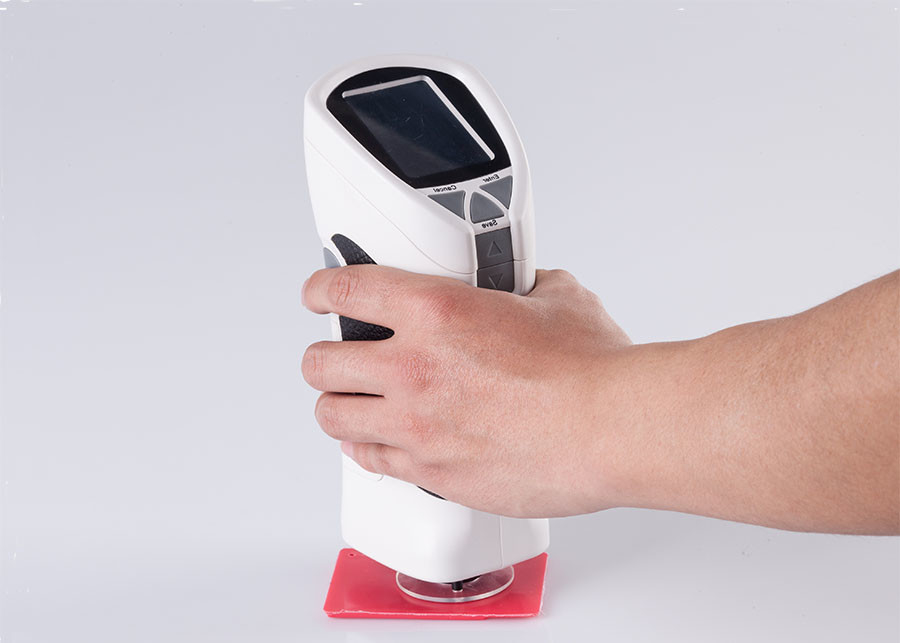

Professional Camera View Paint Color Difference Analysis Meter Colorimeter
Introduction:
Food color tester is widely used in different industries such as food,fruit, paint, plastic, printing, weaving and dyeing.It measures the sample color value L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.Our colorimter could work with micro printer to print the testing result anywhere and anytime.
Competitive Advantage:
CS-210 color tester includes a camera to view the testing area which can easily avoid testing errors.
1). Can Test Degree of Whiteness and Yellow Degree
2). Multiple color space display color values : L*a*b,L*c*h,Yxy.
3). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
4). Free Color Management Software
5). Can connect to micro-printers for printing
6). The device could store 10 standard sample groups and every sample group could store 100 sample data.
7). Establish the Prototype Data L*a*b* by manually
Specifications:
| Type | CS-210 |
| Illumination system | 8/d(8°/diffused illumination) |
| SCI | |
| Testing Port Diameter | About 8mm |
| Measuring conditions | CIE 10° standard observer; CIE D65 light source |
| Measuring range and Display |
L*:1-100 Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value Whiteness:Hunter and Ganz Yellow:YI |
| Repeatability | Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board 80 times for average) |
| Storage | 100 sets of standard samples; up to 100 under each standard sample |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| languages | Chinese, English |
| Power | Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter |
| Port | USB2.0 printer |
| Weight | 550g |
| Size | 77×86×210mm |
| Other Function | Build-in Micro Camera |
Free Colorimeter QC Software:
Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier. (Software english version is also available.)
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
Company Information:
Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. I believe our quality products will be your better choice. You are warmly welcome to visit and purchase from us.
