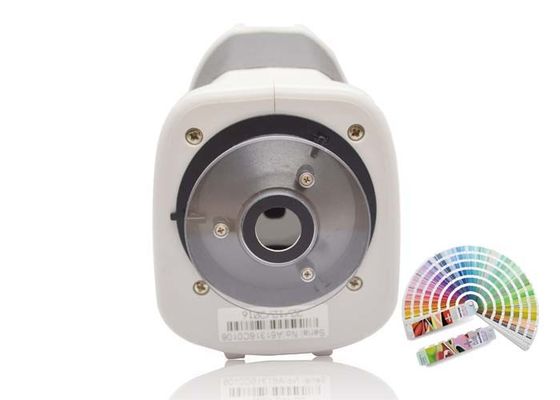

Whiteness Measurement Portable Spectrophotometer Colorimeter USB 2.0 Interface

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-286

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm

Delivery Time: 5-7 days

Payment Terms: T/T, Western Union, MoneyGram,Paypal

Supply Ability: 1000 per month

Get Best Price
Product Details
Highlight:

handheld colorimeter

,

multi parameter colorimeter

Illumination System:
D/8,SCI
Measuring Caliber:
15mm (optional 11mm,4mm,6mm)
Storage:
20000 Test Results
Instrument Size:
77x86x210mm
Measurement Time:
2 Second
Measuring Range:
0-200%
Repeatability:
Below 0.08
Measuring Light Source:
LED
Languages:
English And Chinese
Device Weight:
550g (without Battery)
Illumination System:
D/8,SCI
Measuring Caliber:
15mm (optional 11mm,4mm,6mm)
Storage:
20000 Test Results
Instrument Size:
77x86x210mm
Measurement Time:
2 Second
Measuring Range:
0-200%
Repeatability:
Below 0.08
Measuring Light Source:
LED
Languages:
English And Chinese
Device Weight:
550g (without Battery)
Product Description

Top Quality Whiteness Measurement Textile Color Difference Analysis Colorimeter





Textile Color Difference Analysis Colorimeter Specifications



Type CS-286
Illumination di/8(Diffused Illumination, 8 degree viewing)
Size of integrating sphere Φ40mm
Illumination Light source CLED
Sensor array sensor
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Measurement Aperture 11mm,optional 4mm,6mm,15mm
Repeatability Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF,U35
Display

Chromaticity value(L*a*b,L*C*h),delta E value,pass/fail,color tendency, average, generate test report,spectrum reflectance figure /data

with Camera, reflectance figure, manual input target value

Color Difference Formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
Color Space CIE-L*a*b,L*C*h, L*u*v ,XYZ,Yxy, reflectance
Other

WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73)

metameric index ,staining fastness , Color fastness

Pantone color number matching function

Light Source Lifetime 5 years, 1.5 million times
Interface USB2.0
Storage Temperature -25~55℃, relative humidity 80% or below( at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size 77×86×210mm





Textile Color Difference Analysis Colorimeter Advantage



1). Spectro colorimeter:The highest precision colorimeter;

2). Patented technology guarantees measurement stability;

3). It comes with verification certification from 3rd party;

4). Large storage memory:100 pcs targets and 200 pcs samples;

5). Free Color QC software;

6). It can be used for color measurement of any kind of textile such as fabric, fiber, yarn,etc.





Textile Color Difference Analysis Colorimeter Packing List



Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received



Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List
