Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-280 plus
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
20000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Other Function: |
With Camera |
Interface: |
USB2.0 |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
20000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Other Function: |
With Camera |
Interface: |
USB2.0 |

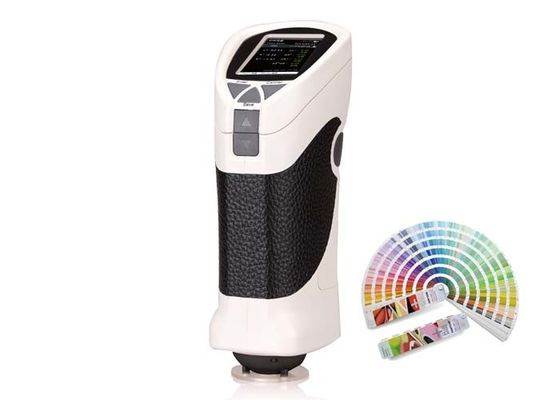

Portable Tristimulus Color Difference Meter for CIE Lab RGB Measurement
Color difference meter is also called colorimeter or color measurement Instrument.It is widely used in different industries such as textile,plastic cement, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
Color Difference Meter Technical Data
| Type | CS-280 | CS-280+ |
| Illumination | di/8(Diffused Illumination, 8 degree viewing) (conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard) |
|
| Size of integrating sphere | Φ40mm | |
| Sensor | array sensor | |
| Wavelength | 400-700nm | |
| Spectrum Resolution | 10nm | |
| Measurement Time | 2s | |
| Measurement Aperture | 11mm,optional 4mm,6mm,15mm | |
| Repeatability | Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) | |
| Observe Angles | 2° and 10° | |
| Light Source | A,C,D50 and D65 | |
| Display | Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report | |
| With camera to see the measurement area | ||
| Color Difference Formula | ΔE*ab,ΔE*CH | |
| Color Space | CIE-L*a*b,L*C*h | CIE-L*a*b,L*C*h,XYZ,Yxy |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73) |
|
| Data Storage | 20000 samples | |
| Light Source Lifetime | 5 years, 1.5 million times | |
| Other Function | without | camera view, input color swatches |
| Power | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V | |
| Size | 77×86×210mm | |
Color Difference Meter Longest Guarantee
a. One Year Guarantee for whole instrument
Color Difference Meter Free Color QC Software
Device is with free color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report. It will help the chemist finish the job much easier.
Packing Material: canvas bag with carton box
Packing Size: 250x210x200mm
Packing Weight: 1.8kgs
Delivery time: 1-5 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
