Handheld Colour Difference Meter Delta E Painting 10nm Spectrum Resolution
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-280 plus |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm |
| Delivery Time | 5-7 days |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Illumination System | D/8,SCI | Measuring Caliber | 11mm (optional 15mm,4mm,6mm) |
|---|---|---|---|
| Storage | 20000 Test Results | Instrument Size | 77x86x210mm |
| Measurement Time | 2 Second | Measuring Range | 0-200% |
| Repeatability | Below 0.08 | Measuring Light Source | LED |
| Languages | English And Chinese | Device Weight | 550g (without Battery) |
| Other Function | With Camera | Interface | USB2.0 |
| High Light | handheld colorimeter,multi parameter colorimeter |
||
Product Description

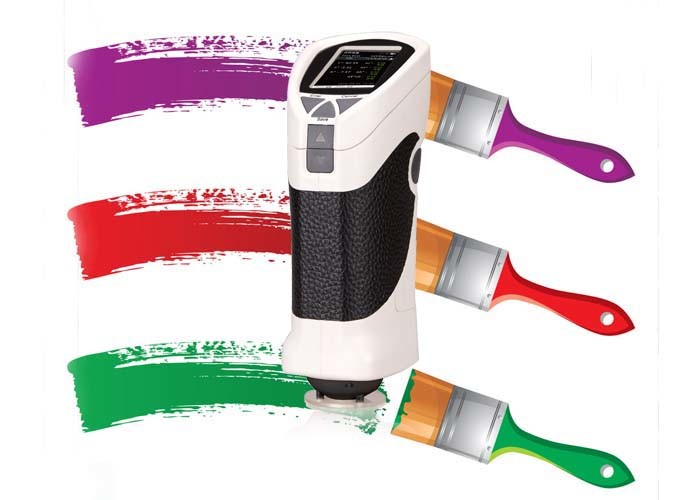

Handheld Color Difference Delta E Paint Color Meter Colorimeter
Paint Color Meter Colorimeter Introduction
Paint color meter is a instrument that measures how much paint color is absorbed by the sample. It determines paint color based on the red, blue, and green components of light absorbed by the sample.It can measures and get the sample color value L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
Paint Color Meter Colorimeter Specification
| Type | CS-280+ |
| Illumination | d/8 |
| Size of integrating sphere | Φ40mm |
| Sensor | array sensor |
| Wavelength | 400-700nm |
| Spectrum Resolution | 10nm |
| Measurement Time | 2s |
| Measurement Aperture | 11mm,optional 4mm,6mm,15mm |
| Repeatability | Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) |
| Observe Angles | 2° and 10° |
| Light Source | A,C,D50,D65 |
| Display |
Chromaticity value(L*a*b,L*C*h),delta E value,pass/fail,color tendency, average, generate test report,spectrum reflectance figure /data With Camera to view the measurement area |
| Color Space | CIE-L*a*b,L*C*h,XYZ,Yxy |
| Color Difference | ΔE*ab,ΔE*CH |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73) |
| Light Source Lifetime | 5 years, 1.5 million times |
| Operating Temperature | 5~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Power | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V |
Paint Color Meter Colorimeter Packing List
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
Paint Color Meter Colorimeter Advantage
1). High precision colorimeter;
2). Free Color QC software;
3). More than 10 patents to guarantees measurement stability;
4). Instrument comes with verification certification;
5). Large storage memory:100 pcs targets and 200 pcs samples;
Paint Color Meter Colorimeter Software
Instrument is with color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report. It will help the chemist finish the job much easier.
