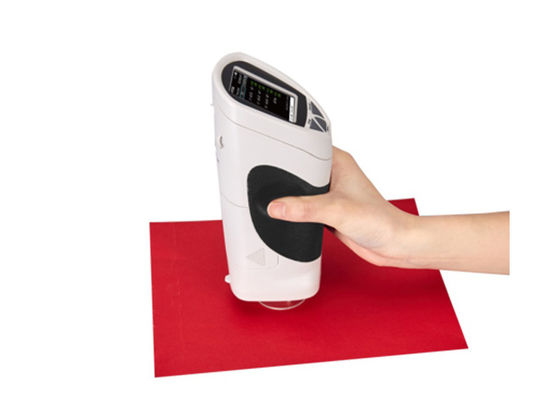

Easy Operation Handheld Colorimeter , Lab Color Meter Repeatability Below 0.08
|Place of Origin||China|
|Brand Name||CHN spec|
|Minimum Order Quantity||1|
|Packaging Details||Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm|
|Delivery Time||5-7 days|
|Payment Terms||T/T, Western Union, MoneyGram,Paypal|
|Supply Ability||1000 per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Illumination System||D/8,SCI||Measuring Caliber||11mm (optional 15mm,4mm,6mm)|
|Storage||1000 Test Results||Instrument Size||77x86x210mm|
|Measurement Time||2 Second||Measuring Range||0-200%|
|Repeatability||Below 0.08||Measuring Light Source||LED|
|Languages||English And Chinese||Device Weight||550g (without Battery)|
color testing equipment
Easy Operation Build-In Pantone Color Reader Textile Colorimeter For Sale
Colorimeter is widely used in different industries for color difference test such as paper, electroplating oxide, paint, plastic cement, printing, weaving and dyeing. It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.Our colorimter could work with micro printer to print the testing result anywhere and anytime.
CS-260 is with build-in pantone color chart.After color measurement,it will match the most similar pantone color number automatically.
|Illumination system||8/d(8°/diffused illumination)|
|Testing Port Diameter||About 8mm|
|Measuring conditions||CIE 10° standard observer; CIE D65 light source|
|Repeatability||Standard deviation within delta E*ab*, below 0.08(testing condition: measure the white calibration board 80 times for average)|
|Storage||100 sets of standard samples; up to 100 under each standard sample|
|Measuring time||About 0.5 seconds|
|Measuring light source||LED|
|Power||Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter|
1). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
2). Multiple color space display color values : L*a*b,L*c*h,Yxy.
3). Can Test Degree of Whiteness and Yellow Degree
4). Free Color Management Software
5). Establish the Prototype Data L*a*b* by manually
6). Test different points on sample and get the average value. It is widely used for color control whose color is not uniform.
7). CS-260 could match the color with the build-in pantone color chart to get the most similar pantone color number. It will be more convenient for the worker to check.
Free Colorimeter QC Software:
Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.
Packing Material:Canvas bag with carton box
Delivery time:3-20 days after payment received.
|1||Main Instrument||1||Power Line|
|1||Operating Manual||1||USB Cable|
|1||Driving Software||1||Black/White Calibration Tiles|
|1||Color QC Software||1||Packing List|
