Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: cs-580
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Measurement Time Interval: |
2s |
Measurement Time: |
1s |
Interface: |
USB |
Data Storage: |
20000 Test Results |
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Wavelength Interval: |
10nm |
Half Spectral Width: |
5nm |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Measurement Time Interval: |
2s |
Measurement Time: |
1s |
Interface: |
USB |
Data Storage: |
20000 Test Results |

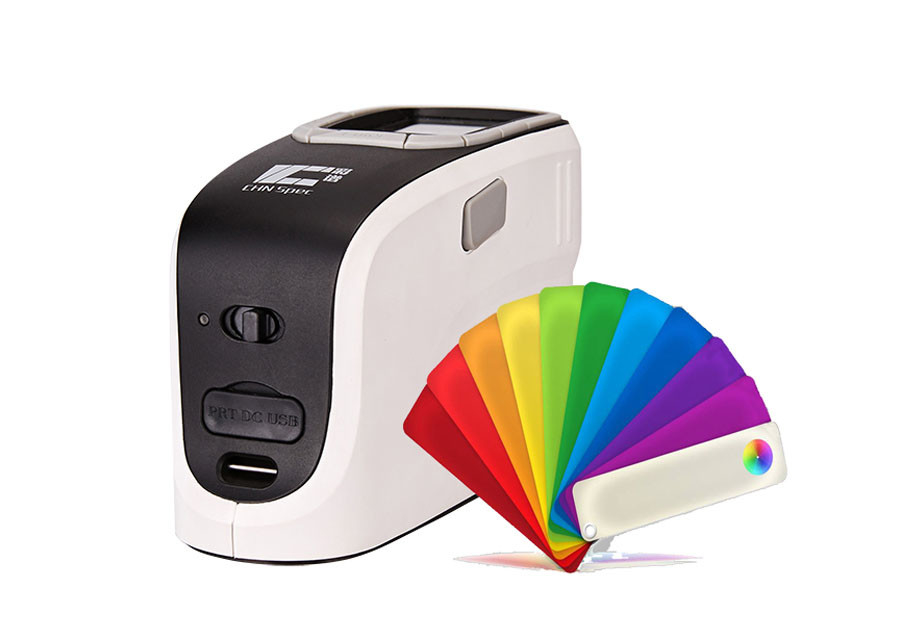

Low Price Portable Color Spectrophotometer Printing Color Difference Meter
Introduction:
Our spectrophotometer is designed for measuring color.It adopts high technology from overseas.It tests based on the condition of D/8 that is internationally used.It is widely used for color measurement of any industry especially for chemical,paint,textile, plastic,food,building material and other products’ color quality control.It could work with micro printer for printing testing result anywhere.Spectrophotometer can provide reflectacne data of 30 wavelengths spaced at 10nm intervals between 400-700nm.
Specifications:
Type | CS-580 |
Measure Conditions | d/8(Diffused lighting, observe angle:8 degrees) SCS optical engine(light splitting and integration system),ETC(every test calibration), SCI(specular reflection included)/SCE(specular reflection excluded),simultaneous measurement(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards) |
Size of Integrating Sphere | Φ40mm,Alvan diffused reflection surface coating |
Illumination Light source | CLEDs(entire wavelength balanced LED light source) |
Sensor | Double Optical Array Sensor |
Wavelength Range | 400-700nm |
Measure Range / resolution factor | 0-200% , 0.0001 |
Observation Angle | 2°/10° |
Measurement Light Source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84 |
Data being displayed | reflectance data/figure, sample color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area, history data color simulation, manual input standard sample, generate testing report |
Measurement time interval | 2 seconds |
Measuring Aperture | Φ8mm |
Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance |
Color difference formulas | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 |
Other colorimetric indices |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), |
Repeatability | light splitting reflectivity : standard deviation within 0.08% |
color values: ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum:0.05 | |
Interface | USB |
Data storage | 20000 test results |
Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
Packing Size | 181*73*112mm(L*W*H) |
Weight | about 550g(does not include battery's weight) |
Display | True color screen that includes all colors |
Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
Standard accessories | DC adapter, Lithium battery, operate manual, color management software, drive software, electronic operate manual, color management guide, USB cable, black/white calibration box, protective cover, spire lamella, portable bag, electronic color charts |
Optional accessories | powder molding device, micro printer, measurement and test report |
Color matching system | not match |
UV light source | Without |
Applications:
It can be applied to laboratories, factories and others field that need color testing;
Allows medium and small companies to obtain high performance color management system;
The following are some of the application of our Spectrophotometers:
Competitive Advantage:
1). Obtained Metrology Accreditation Certificate in China
2). Large data storage space

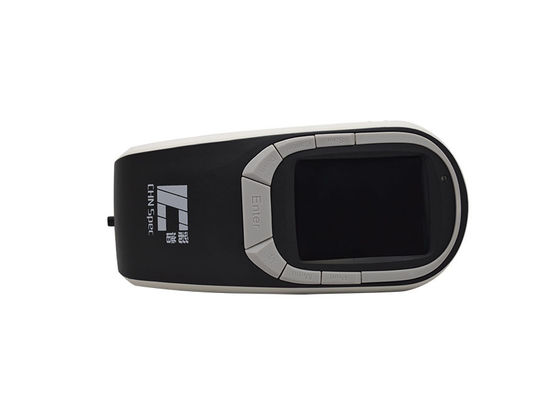

3). Large TFT display screen
4). Modern and fashionable design based on human engineering
5). Easy to operate and compact operation interface
6). Pre-locating panel design for easy instrument calibration
7). Uses LED light source; high capacity rechargeable lithium-ion battery
8). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
9). Includes PC software to manage data
10). Can connect to micro-printers for printing
11). Testing aperture can be custom made into 4mm to measure the curved surface material
