Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-280
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |

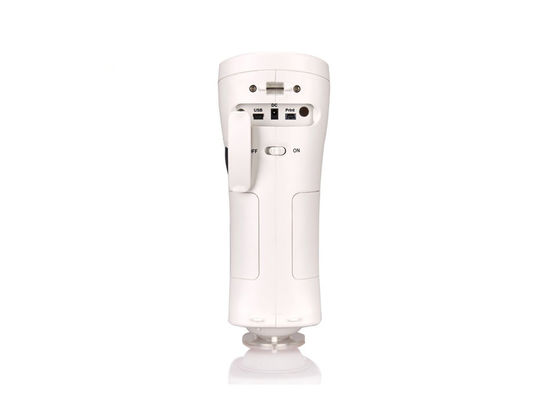

Whiteness Color Data Laboratory Colorimeter For Skin Comestic Industry
Introduction:
Colorimeter is also called color measurement Instrument.It is widely used in different industries such as skin,comestic,textile,plastic,printing, paint,weaving,dyeing,etc.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
Specifications:
| Type | CS-280 | CS-280+ |
| Illumination | d/8(Diffused Illumination, 8 degree viewing) | |
| Size of integrating sphere | Φ40mm | |
| Illumination Light source | CLED | |
| Wavelength | 400-700nm | |
| Spectrum Resolution | 10nm | |
| Measurement Time | 2s | |
| Measurement Aperture | 11mm,optional 4mm,6mm,15mm | |
| Repeatability | Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) | |
| Observe Angles | 2° and 10° | |
| Light Source | A,C,D50 and D65 | |
| Display | Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report | |
| With camera to see the measurement area | ||
| Color Difference Formula | ΔE*ab,ΔE*CH | |
| Color Space | CIE-L*a*b,L*C*h | CIE-L*a*b,L*C*h,XYZ,Yxy |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) |
|
| Data Storage | 20000 samples | |
| Light Source Lifetime | 5 years, 1.5 million times | |
| Other Function | without | camera view, input color swatches |
| Language | Chinese and English | |
| Interface | USB2.0 | |
| Operating Temperature | 5~45℃, relative humidity 80% or below( at 35°C ),no condensation | |
| Storage temperature range | -25℃ to 55℃,relative humidity 80% or below(at 35°C ),no condensation | |
| Power | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V | |
| Size | 77×86×210mm | |
| Weight | About 550g | |
Competitive Advantage:
1). Spectro colorimeter:The highest precision colorimeter
2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy
3). Patented technology guarantees measurement stability
4). Obtain national metrology certification
5). Ergonomic Design
6). Mass storage memory:100 pcs targets and 200 pcs samples
7). Optional accessories for different functions
8). SCS optional engine
9). Automatic gloss compensation technology
10). Every test calibration technology
11). Adopt CLEDs light source---spectrally balanced LED light source
Colorimeter Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Canvas bag with carton box
Packing Size:230x230x240mm
Packing Weight:2.4kgs
Delivery time:3-20 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
