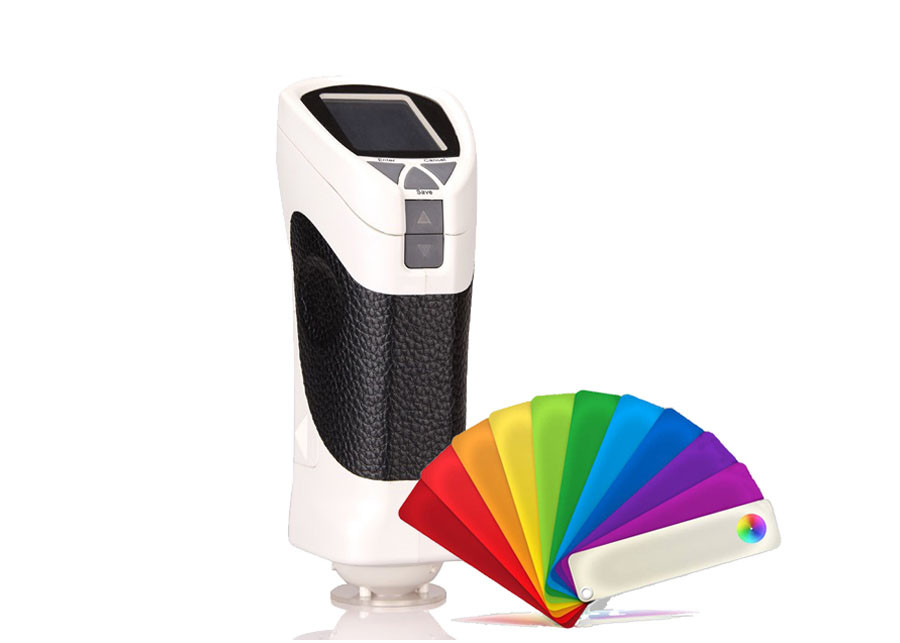

D / 8 Laboratory Paint Matching Spectrophotometer 2 Second Measurement Time

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-288
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 1000 per month
Product Details
Illumination System D/8,SCI Measuring Caliber 11mm (optional 15mm,4mm,6mm)
Storage 1000 Test Results Instrument Size 77x86x210mm
Measurement Time 2 Second Measuring Range 0-200%
Repeatability Below 0.08 Measuring Light Source LED
Languages English And Chinese Device Weight 550g (without Battery)
High Light

colour measurement device

,

color measurement instruments

Leave a Message
Product Description

High Quality D/8 Laboratory Colorimeter Ganz Whiteness Spectro Meter


Introduction:

Spectro meter is also called color meter. It is widely used in different industries such as plastic cement, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.It is also suitable for Ganz whiteness, CIE/ISO whiteness,ASTM whiteness,Hunter whiteness and other whiteness measurement.


D / 8 Laboratory Paint Matching Spectrophotometer 2 Second Measurement Time 0


Specifications:



Type CS-288
Illumination di/8(Diffused Illumination, 8 degree viewing)
(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard)
Size of integrating sphere Φ40mm, Avian diffused reflection surface coating
Illumination Light source CLED
Sensor array sensor
Wavelength 400-700nm
Spectrum Resolution 10nm
Measurement Time 2s
Measurement Aperture 11mm,optional 4mm,6mm,15mm
Repeatability Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles 2° and 10°
Light Source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF,U35
Display Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report, spectrum reflectance figure /data
With camera to see the measurement area, spectrum reflectance figure /data, manual input target data
Color Difference Formula ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
Color Space CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,Reflectance
Other WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73)
metameric index ,staining fastness , Color fastness
Data Storage 20000 samples
Light Source Lifetime 5 years, 1.5 million times
Other camera view, input color swatches, mobile phone APP
Screen Panchromatic True Color Screen
Language Chinese and English
Interface USB2.0,Bluetooth
Operating Temperature 5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Storage temperature range -25℃ to 55℃,relative humidity 80% or below(at 35°C ),no condensation
Power Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size 77×86×210mm
Weight About 550g
Standard Accessories adapter, operating manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, portable bag, electronic color charts
Optional Micro Printer
Color Matching System Not matched
UV Light Source without



Competitive Advantage:

1). Spectro colorimeter:The highest precision colorimeter
2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy
3). Patented technology guarantees measurement stability
4). Obtain national metrology certification
5). Ergonomic Design
6). Mass storage memory:100 pcs targets and 200 pcs samples
7). Optional accessories for different functions
8). SCS optional engine
9). Automatic gloss compensation technology
10). Every test calibration technology
11). Adopt CLEDs light source---spectrally balanced LED light source
D / 8 Laboratory Paint Matching Spectrophotometer 2 Second Measurement Time 1

Colorimeter Free Color QC Software:

Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.It will help the color analysis worker finish the job much easier. (Software english version is also available.)
D / 8 Laboratory Paint Matching Spectrophotometer 2 Second Measurement Time 2
