Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: FS-13
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton box
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Color: |
Orange |
Wavelength Range: |
400-1000nm |
Spectral Sampling/pixel: |
2.5nm (max. 1.5nm) |
Slit Width: |
30um |
Imaging Speed: |
Full Spectral Range 128Hz, 3300Hz After ROI |
Camera Output: |
USB3.0 |
Interface: |
C-Mount |
ROI: |
Freely Selectable Multiple Bands |
Color: |
Orange |
Wavelength Range: |
400-1000nm |
Spectral Sampling/pixel: |
2.5nm (max. 1.5nm) |
Slit Width: |
30um |
Imaging Speed: |
Full Spectral Range 128Hz, 3300Hz After ROI |
Camera Output: |
USB3.0 |
Interface: |
C-Mount |
ROI: |
Freely Selectable Multiple Bands |

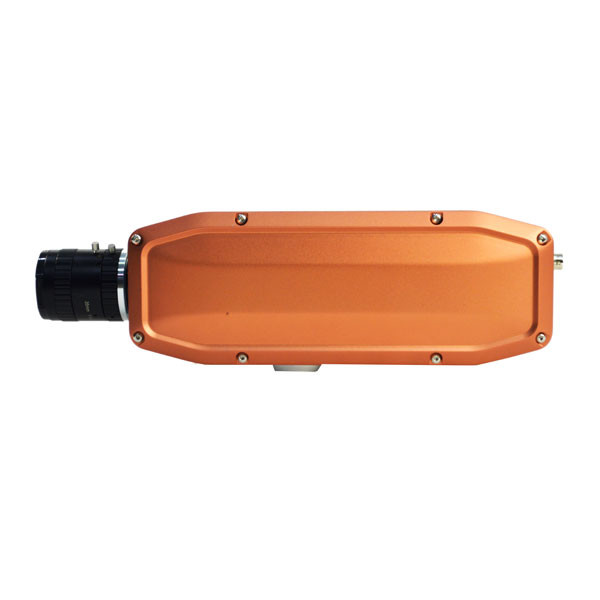

Low Cost FS Series Imaging Hyperspectral Camera With 400-1000nm Wavelength Made By CHN Spec Tech
Low Cost Imaging Hyperspectral Camera FS Series with 400-1000nm Wavelength Made by CHN Spec Tech
Hyperspectral Camera Application
Hyperspectral camera FS series is designed for industrial and laboratory use. It work in a line-scan mode in the visible and near-infrared (VNIR) area. It is widely used to scan the sample and get its reflectance under each pixel. The result can be used for color quality control or material seperation by different content. It can be used in lab or installed in the production line. It is widely used in agriculture industry, food insutry, screen industry, textile industry and many other industries.
Hyperspectral Camera Advantages
1. Machine vision, color measurement, visible light / near-infrared detection hyperspectral solution
2. Spectral range:400-700nm / 400-1000nm, spectral sampling/pixel 2.5nm, max. 1.5nm (Changing the slit width can achieve higher spectral resolution, but will affect the signal strength)
3. Imaging speed: Full Spectral range 128Hz,3300Hz after ROI
4. Support multi-region ROI
5. Color difference test : print, textile and other industries surface color test, texture detection, with special light source and control system, the repeatability of single pixel of color measurement can reach dE*ab<0.1.
Hyperspectral Camera Working Principle
Hyperspectral Camera Technical Data
| Model | FS-10 | FS-11 | FS-12 | FS-13 |
| Illuminant | Passive (without illuminant inside device) | |||
| Spectroscopic method | Grating spectroscopy | |||
| Wavelength Range | 400-700nm | 400-1000nm | ||
| Spectral bands | 150 | 300 | ||
| Spectral sampling/pixel | 2.5nm (max. 1.5nm) | |||
| Slit width | 30um | |||
| Transmission Efficiency | ＞50% | ＞60% | ||
| Stray light | ＜0.5% | |||
| Spatial Samples | Max. 1920 (set from software) | |||
| Pixel Size | 5.86um | |||
| Imaging speed | Full Spectral range 41Hz, 390Hz after ROI |
Full Spectral range 128Hz, 3300Hz after ROI |
Full Spectral range 41Hz, 390Hz after ROI |
Full Spectral range 128Hz, 3300Hz after ROI |
| Detector | CMOS | |||
| SNR(Peak) | 600/1 | |||
| Camera Output | USB3.0 | |||
| Interface | C-Mount | |||
| Accessory | USB3.0 cable | |||
| ROI | Single Band | Freely selectable multiple bands | Single Band | Freely selectable multiple bands |
