D/8 Specular component Included SCI Handheld Color Meter Max

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number colometer max
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month
Product Details
Sensor Dual Light Path Sensor Array Wavelength Interval 10nm
Half Spectral Width 5nm Reflectivity Range 0-200%
Measurement Time 1s Interface USB
Battery Capacity 4.2VV/760mAh Rechargeable 10,000contim Uous Tests Weight 90g
Wavelength Range 400-700nm Observer 2.10
High Light

colour matching spectrophotometer

,

Pulse Xenon Lamp Color Spectrum Analyzer

,

10nm Portable Color Spectrophotometer

Leave a Message
Product Description

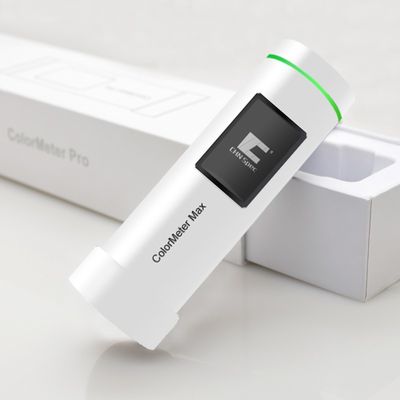

ColorMeter MAX

D/8 Specular component Included SCI Handheld Color Meter Max 0D/8 Specular component Included SCI Handheld Color Meter Max 1D/8 Specular component Included SCI Handheld Color Meter Max 2D/8 Specular component Included SCI Handheld Color Meter Max 3D/8 Specular component Included SCI Handheld Color Meter Max 4D/8 Specular component Included SCI Handheld Color Meter Max 5D/8 Specular component Included SCI Handheld Color Meter Max 6D/8 Specular component Included SCI Handheld Color Meter Max 7

ColorMeter MAX is an enhanced version of the ColorMeter series. It is a powerful color measuring tool. Excellent performance configuration makes color measurement more accurate. The instrument can be wirelessly connected with Android or IOS devices, which greatly expands its application. It will take you into a new world of color management, which can replace the color card of printing, coating, textile, etc., realize the function of color test and find similar color; the instrument can pass the national metrology (Level II), and repeatability ≤0.05, better than ColorMeter Pro.



Part 1. Instrument Function Introduction

1. Measure Color Value

  • Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate.
  • Adopt spectral sensor to provide reflectance curve/data which make its performance much better than colorimeter.
  • It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds of illuminants.
  • “Pass” or “Fail” judgment can be directly seen from instrument screen.
  • It can pass the national metrology (Level II), repeatability ≤0.05, test accuracy 0.01 for accurate reading.





2. Portable and Massive Color Card Database

  • It supports connecting with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards
  • No need to carry big and heavy color card, we can find color card database from Colormeter Max APP and find the closed/similar color easier and faster.



3. Artificial Intelligence for Accurately Measure Color

  • AI-based color search engine for accurately measure color;
  • Color can be collected anywhere and anytime.





4. Innovation Design for Auto Black and White Calibration

  • Auto instrument calibration for easier and correct color test
  • APP will remind for calibration if instrument works for long time
  • From APP we can do manual calibration and set calibration interval
  • Only 1s to see the test result which greatly improves working efficiency



5. Single Instrument for Test and Save Test Value

  • 1.14 inches IPS display screen to show color information.
  • Data can be saved on instrument and instrument data can be synced into APP.



Operate on Instrument Operate by App



6. Cloud database, more convenient to view and upload

  • Official color card databases are available;
  • Personal users can update color information to cloud and share between different instruments which make color management much easier.
  • Enterprise users can create and manage their own color card library and formula information in the cloud and share the information to their customers and suppliers through the unique invitation code.



Part 2. Packing List



Name Qty.
Instrument 1
Type-C Cable 1
Operate Manual 1

Part 3. Technical Data

Model ColorMeter MAX
Illumination and Viewing System D/8, SCI (specular component included)
Color Spaces, Color Difference and Indices

Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index

(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength

Light Source LED (Full Wavelength Balanced LED Light Source)
Test Aperture 8mm
Wavelength Interval 10nm
Wavelength Range 400-700nm
Repeatability ΔE≤0.05 (when a white tile is measured 30 times at 5-second intervals after calibration)
Measurement Time 1s
Interface USB
Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer 2°,10°
Display Screen IPS Full Color Screen(135*240,1.14inch)
Battery 4.2V/760mAh,Rechargeable, 10,000 continuous tests
Language English and Chinese
Calibration Auto
Software Support Andriod,IOS,Windows
Weight About 90g
Instrument Size Diameter 31mm , Height 102mm
Pass National Metrology (Level II) Yes
Test Accuracy 0.01

Part 4. Detail Pictures



Part 5 Technical Support

1. One Year Warranty.
