Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE

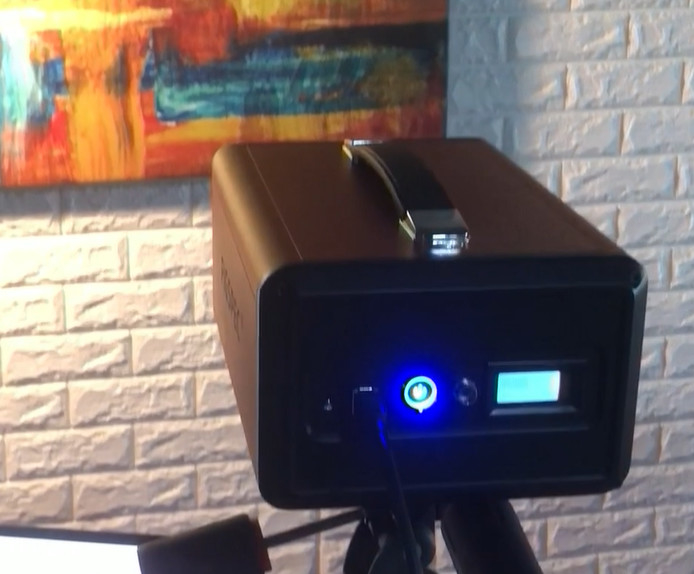

Model Number: FS-20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton box
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 1000 per month
Spectroscopic Method: |
Grating |
Spectral Region: |
400-700nm |
Spectral Resolution: |
2.5nm |
Slit Width: |
25um |
Pixel Size: |
5.86um*5.86um |
Detector Type: |
CMOS |
SNR: |
600/1 |
Spectroscopic Method: |
Grating |
Spectral Region: |
400-700nm |
Spectral Resolution: |
2.5nm |
Slit Width: |
25um |
Pixel Size: |
5.86um*5.86um |
Detector Type: |
CMOS |
SNR: |
600/1 |
| Model | FS-20 | FS-22 | FS-23 | FS-25 | ||
| Spectroscopic method | Grating | Grating | Grating | Grating | ||
| Image resolution | 1920*1920 | 1920*1920 | 1920*1920 | 320*320 | ||
| Dynamic range | 12 bits | 12 bits | 12 bits | 14 bits | ||
| Imaging speed | ≤15 seconds | ≤15 seconds | ≤5 seconds | ≤5 seconds | ||
| Spectal channels number | 600 | 1200 | 1200 | 254 | ||
| Spectral region | 400-700nm | 400-1000nm | 400-1000nm | 900-1700nm | ||
| Spectral resolution | 2.5nm | 2.5nm | 2.5nm | 8nm | ||
| Slit width | 25um | 25um | 25um | 25um | ||
| Transmission efficiency | 60% | 60% | 60% | 60% | ||
| Stray light level | 0.5% | 0.5% | 0.5% | 0.5% | ||
| Pixel size | 5.86um*5.86um | 5.86um*5.86um | 5.86um*5.86um | 30um*30um | ||
| Detector type | CMOS | CMOS | CMOS | InGaAs | ||
| Senscar imaging surface size | 11.3*7.1mm | 11.3*7.1mm | 11.3*7.1mm | 9.6mm x7.68mm | ||
| Standard lens focal length | 25mm | 25mm | 25mm | 25mm | ||
| Minimum working distance | 100mm | 100mm | 100mm | 100mm | ||
| Field angle | 25° | 25° | 25° | 17° | ||
| Mirimum exposure time | 34us | 34us | 21us | 1us | ||
| Maximum exposure time | 10 seconds | 10 seconds | 10 seconds | 1 seconds | ||
| SNR | 600/1 | 600/1 | 600/1 | 600/1 | ||
| Data interface | USB3.0 | USB3.0 | USB3.0 | Gigabit network | ||
| Camera lens interface | C | C | C | C | ||
| Accessories | USB3.0 transmission line | USB3.0transmission line | USB3.0 transmission line | Gigabit network transmission line | ||
