FigSpec FS-50 Hyperspectral Imaging Camera For Water Assessment And Environmental Protection Decisions

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: FS-50

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton box

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

Global Shutter Hyperspectral Imaging Camera

,

Data Support Hyperspectral Imaging Camera

,

Water Assessment Hyperspectral Imaging Camera

Effective Pixels:
1920
Space Resolution:
1920
Imaging Sensor:
1/1.1 Inch CMOS
Covering Width:
54m@h120m
Digitalizing Bit:
12bit
Visualfield:
25.36°
Application Software:
FIGSPEC UAV,FIGSPEC Merage Puzzle Software,FIGSPEC Studion Image Analysis Software
Sampling Rate:
128 Line/S
Installation/power Supply Port:
X-Port
Ground Resolution:
2.8cm@h120m
Optical Window:
High Transmittance Optical Glass Window
Shutter Type:
Global Shutter
Photography Method:
Real-time Collection
Effective Pixels:
1920
Space Resolution:
1920
Imaging Sensor:
1/1.1 Inch CMOS
Covering Width:
54m@h120m
Digitalizing Bit:
12bit
Visualfield:
25.36°
Application Software:
FIGSPEC UAV,FIGSPEC Merage Puzzle Software,FIGSPEC Studion Image Analysis Software
Sampling Rate:
128 Line/S
Installation/power Supply Port:
X-Port
Ground Resolution:
2.8cm@h120m
Optical Window:
High Transmittance Optical Glass Window
Shutter Type:
Global Shutter
Photography Method:
Real-time Collection
Product Description

FS-50 series multi-spectral camera

The FigSpec fs-50 series is a new generation of pilotless multispectral cameras from color spectrum technology, suitable for the dji M350/M300RTK flight platform, with 30-180 spectral channels and 2K resolution.

·Ultra-high spectral channels: 30-180 spectral channels (different models)
·2K spatial resolution
·Global shutter, 12bit high precision sampling data
·Ground station real-time preview data acquisition
·DJI X-Port control and power supply, 512GSSD mass storage
·Dji M350/M300 RTK UAV customization, plug and play
·FIGSPEC UAV real-time flight control software, FIGSPEC Merage puzzle software, FIGSPEC Studion image analysis software

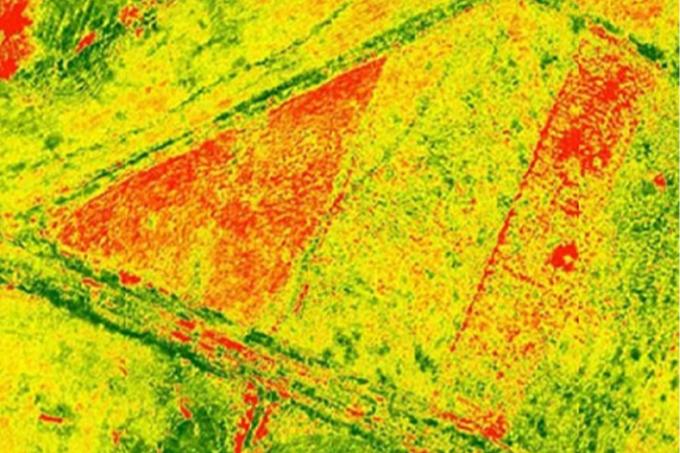

Crop growth assessment
  FigSpec Studio software is built with NDVI and other vegetation factors to accurately quantify the state of vegetation canopy at different spatial scales, quantitatively assess the health, stress and growth of crops and vegetation, and provide data support for crop growth assessment, yield prediction, disease and pest detection, etc.

彩谱多光谱相机


Coverage evaluation
  Based on the spectral fingerprint information of plants, accurate classification of plants in the region and crop area statistics are carried out to provide quantitative vegetation canopy data to provide data support for scientific research and production of agriculture and forestry ecological industry.

彩谱多光谱相机

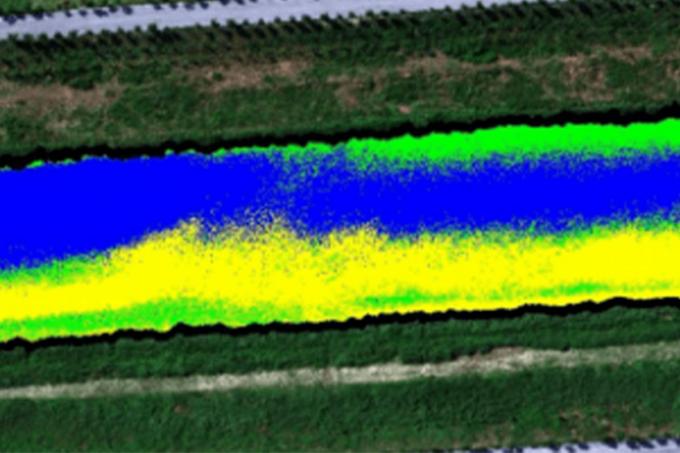

Water quality analysis and monitoring
  Using the spectral data and chemical analysis results, the analysis model is constructed to realize the inversion of the classification and water quality parameters of black and odorous water bodies. Combined with spatial information to monitor the impact of domestic sewage and industrial wastewater on surrounding water bodies, help pollution source investigation and water environment assessment.

彩谱多光谱相机

Water eutrophication monitoring
  Spectral data are used to form a classification index to monitor water eutrophication and conduct spatial information statistics. Following the evaluation standards of water eutrophication status, it assists in analyzing water pollution sources such as farmland, aquaculture and fishery, and provides data and powerful data collection tools for pollution source investigation and water environment assessment.

彩谱多光谱相机


model


FS-50/30


FS-50/60


FS-50/90


FS-50/120


FS-50/150


FS-50/180


Number of spectral channels


30

60 90 120 150 180


Spectral channel wavelength


400-1000nm

output one

wavelength

every 20nm


400-1000nm

output one

 wavelength

every 10nm


400-1000nm

output one

wavelength

every 6.66nm


400-1000nm

output one

wavelength

per 5nm


400-1000nm

output one

wavelength

per 4nm


400-1000nm

output one

wavelength

per 3.33nm


spectrum resolution ratio /Half-wave width

3.5nm

3.5nm

3.5nm

2.5nm

2.5nm 2.5nm


Space resolution


1920


sampling rate


128 line/S


imaging sensor


1/1.1 inch CMOS


effective pixels


1920


Shutter type


global shutter


digitalizing bit


12bit

Visualfield


25.36°


ground resolution


2.8cm@h120m


Covering width


54m@h120m


optical window


High transmittance optical glass window


Main engine size


≤155*95*119mm


Main engine weight


≤840g


Installation/power supply port


X-Port

Workloss


45w


picture format


12bit.SPE.spe(compatible withenvithird party analysis software such as envi)


Data storage space


512SSD


application software


FIGSPEC UAV,FIGSPEC Merage puzzle software,FIGSPEC Studion image analysis software


photography method


real-time collection
