FigSpec FS-50 Series Multi Spectral Camera For Precision Agriculture And Military Defense
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Imaging Sensor | 1/1.1 Inch CMOS | Covering Width | 54m@h120m |
|---|---|---|---|
| Space Resolution | 1920 | Digitalizing Bit | 12bit |
| Visualfield | 25.36° | Sampling Rate | 128 Line/S |
| Ground Resolution | 2.8cm@h120m | Optical Window | High Transmittance Optical Glass Window |
| Effective Pixels | 1920 | Shutter Type | Global Shutter |
| Application Software | FIGSPEC UAV,FIGSPEC Merage Puzzle Software，FIGSPEC Studion Image Analysis Software | Photography Method | Real-time Collection |
| Installation/power Supply Port | X-Port | ||
| High Light | Precision Hyperspectral Imaging Camera,Precision Agriculture Multispectral Imaging Camera,Military Defense Multi Spectral Camera |
||
Product Description
FS-50 series multi-spectral camera
The FigSpec FS-50 series is a new generation of unmanned multi-spectral camera launched by Color Spectrum Technology Company, adapted to the DJI M350/M300RTK flight platform, with 30-180 spectral channels and 2K resolution.
·Ultra-high spectral channels: 30-180 spectral channels (different models)
·2K spatial resolution
·Global shutter, 12bit high precision sampling data
·Ground station real-time preview data acquisition
·DJI X-Port control and power supply, 512GSSD mass storage
·Dji M350/M300 RTK UAV customization, plug and play
·FIGSPEC UAV real-time flight control software, FIGSPEC Merage puzzle software, FIGSPEC Studion image analysis software

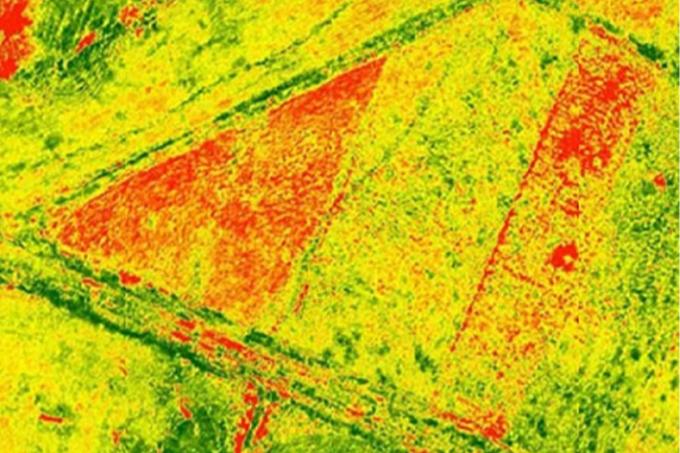

Crop growth assessment
FigSpec Studio software is built with NDVI and other vegetation factors to accurately quantify the state of vegetation canopy at different spatial scales, quantitatively assess the health, stress and growth of crops and vegetation, and provide data support for crop growth assessment, yield prediction, disease and pest detection, etc.

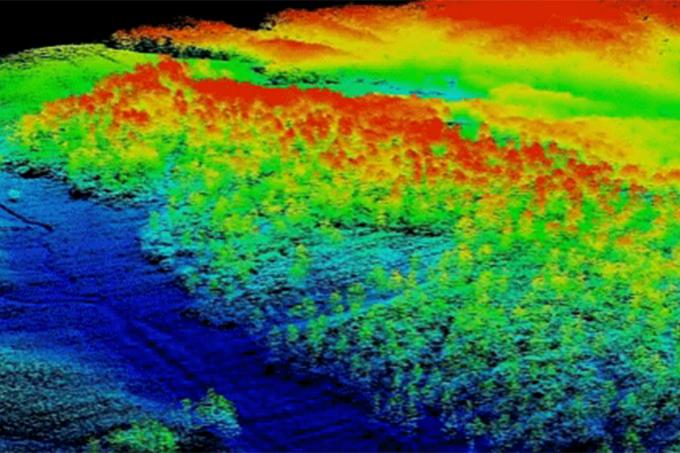

Coverage evaluation
Based on the spectral fingerprint information of plants, accurate classification of plants in the region and crop area statistics are carried out to provide quantitative vegetation canopy data to provide data support for scientific research and production of agriculture and forestry ecological industry.

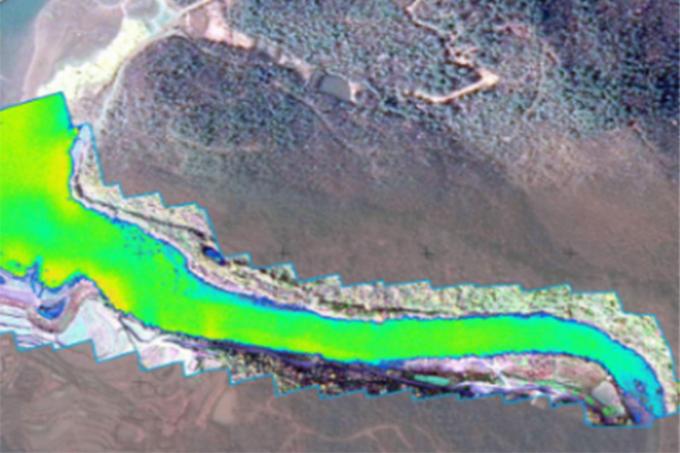

Water quality analysis and monitoring
Using the spectral data and chemical analysis results, the analysis model is constructed to realize the inversion of the classification and water quality parameters of black and odorous water bodies. Combined with spatial information to monitor the impact of domestic sewage and industrial wastewater on surrounding water bodies, help pollution source investigation and water environment assessment.

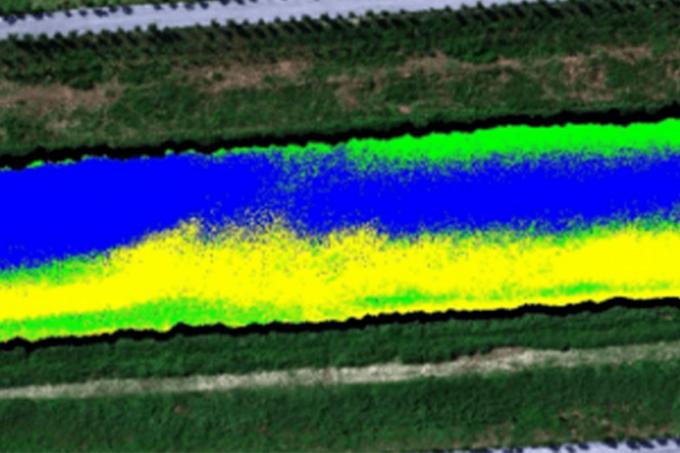

Water eutrophication monitoring
Spectral data are used to form a classification index to monitor water eutrophication and conduct spatial information statistics. Following the evaluation standards of water eutrophication status, it assists in analyzing water pollution sources such as farmland, aquaculture and fishery, and provides data and powerful data collection tools for pollution source investigation and water environment assessment.
|
|
|
|
|
|
|
|
|
|
|
60 | 90 | 120 | 150 | 180 |
|
|
output one wavelength every 20nm |
output one wavelength every 10nm |
output one wavelength every 6.66nm |
output one wavelength per 5nm |
output one wavelength per 4nm |
output one wavelength per 3.33nm |
|
|
3.5nm |
3.5nm |
3.5nm |
2.5nm |
2.5nm | 2.5nm |
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
Visualfield |
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
Workloss |
|
|||||
|
|
|
|||||
Data storage space |
|
|||||
|
|
|
|||||
|
|
|
|||||
