Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: FS-19 Series
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton box
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 1000 per month
Spectral Range: |
900-1700nm |
Spectral Method: |
Transmission Grating |
Transmission Efficiency: |
＞60% |
Number Of Spatial Pixels: |
640 |
Spectral Range: |
900-1700nm |
Spectral Method: |
Transmission Grating |
Transmission Efficiency: |
＞60% |
Number Of Spatial Pixels: |
640 |

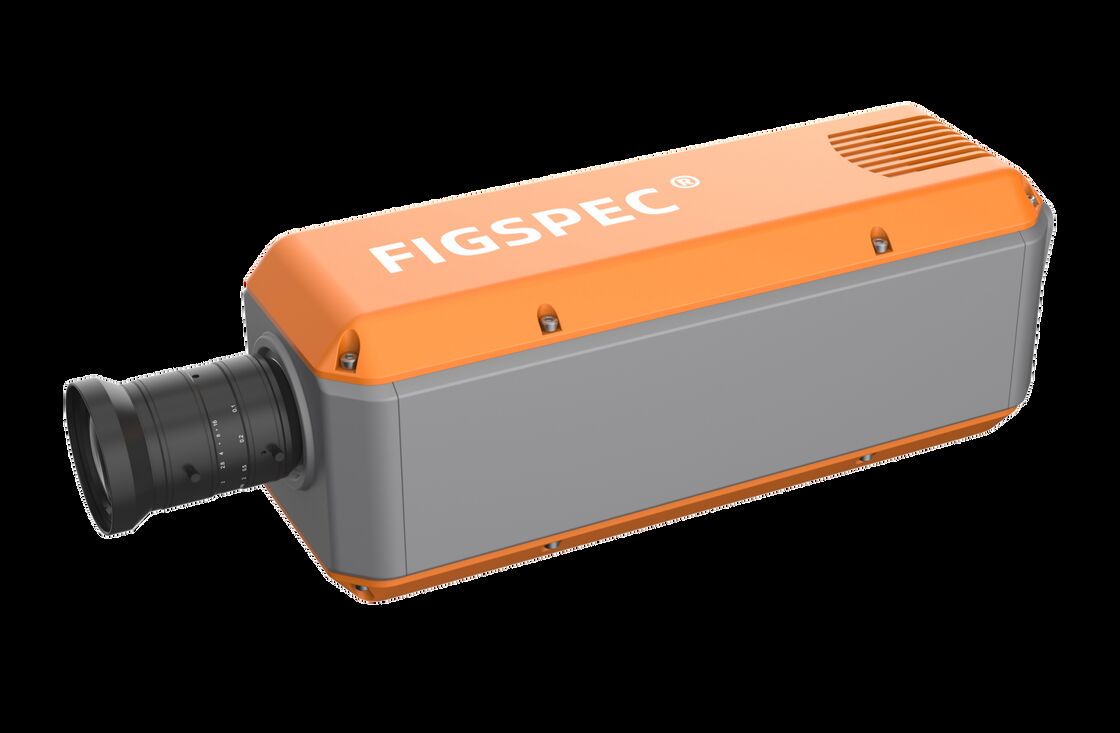

FS-19S/19MY/19M/19X is an online high-speed short-wave infrared hyper-spectral camera specially launched by CHNSpec for the industrial sorting field. Its high frequency characteristics meet the requirements of the indus-trial field for scanning speed. Its sturdy structure and compact body also make its installation scenario more flexible.
Application fields
Parameters
| Product number | FS-19S | FS-19-MY | FS-19M | FS-19X |
| Lighting method | Passive lighting (excluding light source) | |||
| Spectral method | Transmission grating | |||
| Spectral range | 900-1700nm | |||
| Number of spectral bands | 200 | 150 | 100 | |
| Spectral resolution | ＜8nm | ＜9nm | ＜13nm | |
| Slit width | 25um | |||
| Transmission efficiency | ＞60% | |||
| Stray light | ＜0.5% | |||
| Number of spatial pixels | 640 | |||
| Pixel size | 15um | |||
| Lens focal length | Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses) | |||
| Field of view | 62°(8mm focal length lens), 77°(6mm lens) | |||
| Imaging speed | 724fps |
8 spectral channels > 7800fps 16 spectral channels > 4900fps |
2400fps | 3500fps |
| Detector | InGaAs | |||
| SNR(Peak) | 600/1 | |||
| Camera output | Cameralink | GigE | Cameralink | |
| Camera interface | C-Mount | |||
| Accessories | Lens, data cable, power supply, data acquisition card | |||
| Technical Support | SDK can be provided to support secondary development | |||
| ROI | Single region | Multiple regions | Single region | |
| Size | Length*Width*Height: 347mm*122mm*136mm | |||
