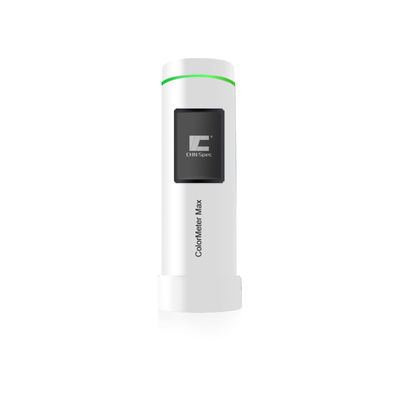

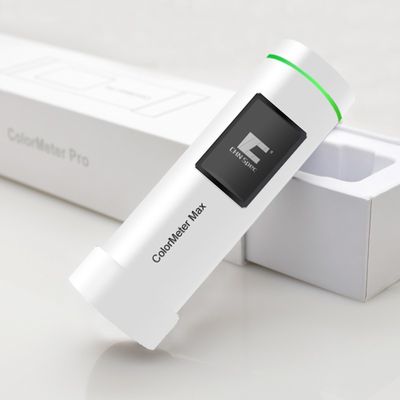

Single Machine Portable Colorimeter Max With Measurements And Data

Color Meter Max

Colormeter Max colorimeter is different from the traditional colorimeter. It is compact and can be put in the user's pocket, which is more convenient to carry; meanwhile, it adopts the D/8 structure of general spectrophotometer, which makes the measurement more accurate; the instrument can be connected wirelessly with Android or IOS devices, which can manage the color on the cell phone; it has the color number search function to find the color you want. It is widely used for color control in plastic, printing, packaging, textile, garment and other industries.

ColorMeter Max will take you into a new world of color management; It can be widely used to measure color value, color difference value and find similar color from color cards for printing industry, paint industry, textile industry, etc.

• Color difference instrument with more accurate color measurement

• A more accurate color difference meter with a massive color card database

• Automatic calibration,

• Single machine is available, and there are many measurements and data

• Cloud database, easier to view and upload

Product Features

Adopt D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI to make measurement more accurate

Adopt spectral sensor to provide reflectance data which make its performance much better than colorimeter

Auto Calibration

Data uploading background in the cloud can be edited for the second time

Single machine or connected to the APP/PC can measure, and display the measurement results directly

Find similar color, support customer to upload their own color information

Android, ios, Windows (SE version not supported) operating systems

Products Description

Colormeter Max colorimeter is different from the traditional colorimeter. It is compact and can be put in the user's pocket, which is more convenient to carry; meanwhile, it adopts the D/8 structure of general spectrophotometer, which makes the measurement more accurate; the instrument can be connected wirelessly with Android or IOS devices, which can manage the color on the cell phone; it has the color number search function to find the color you want. It is widely used for color control in plastic, printing, packaging, textile, garment and other industries.

• Color difference instrument with more accurate color measurement

• A more accurate color difference meter with a massive color card database

• Automatic calibration,

• Single machine is available, and there are many measurements and data

• Cloud database, easier to view and upload

Part 1. Instrument Function Introduction
1. Measure Color Value
 Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate.
 Adopt spectral sensor to provide reflectance data which make its performance much better than colorimeter.
 To get correct L*a*b, L*Ch, RGB, Hex and other color value under light source D65 or D50.
 It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds of illuminants.

Operate on Instrument

Operate on Mobile Phone APP

2. Measure Color Difference Value
 “Pass” or “Fail” judgment can be seen from both instrument and APP.
 ΔE *ab, ΔE * CH and other color difference formulas, display color difference value, color difference evaluation results.
 Connect to App for color difference evaluation, color difference tolerance and parameters can be set in APP.


3. Portable and Massive Color Card Database
 Bluetooth to connect with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards.
 No need to carry big and heavy color card, we can find color card database from Colormeter Pro APP and find the closed/similar color easier and faster.

4. Artificial Intelligence for Accurately Measure Color
 AI-based color search engine for accurately measure color;
 Color can be collected anywhere and anytime.

5. Innovation Design for Auto Black and White Calibration
 Auto instrument black and white calibration for easier and correct color test
 APP will remind for calibration if instrument works for long time
 From APP we can do manual calibration and set calibration interval.

6. Single Instrument for Test and Save Test Value
 1.14 inches IPS display screen to show color information.
 Data can be saved on instrument and instrument data can be synced into APP.

7. Cloud database, more convenient to view and upload
 Official color card databases are available.
 Personal users can update color information to cloud and share between different instruments which make color management much easier.
 Enterprise users can create and manage their own color card library and formula information in the cloud and share the information to their customers and suppliers through the unique invitation code.

8. Packing List

9. Technical Data

※ Measure the standard deviation of whiteboard 30 times every 5S

※※Measured average value of 12 color bricks of BCRA Ⅱ series
