SE Portable Color Meter Measure Color Value, Whiteness / Yellowness Index, Color Fastness, Mobile APP

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: Color Meter Se

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton Box

Delivery Time: 5-7 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

Measure Color Value Portable Spectrophotometer

,

SE Portable Color Meter

,

Mobile APP Portable Color Meter

Stability※:
ΔE≤0.1
Wavelength Range:
400-700nm
Lighting Source:
LED (Full Wavelength Balanced LED Light Source)
Illumination And Viewing System:
D/8,Specular Component Included(SCI)
Measurement Time:
1.5s
Wavelength Interval:
10nm
Interface:
USB,Bluetooth
Aperture:
8mm
Inter-instrument Agreement:
ΔE*00<0.4
Stability※:
ΔE≤0.1
Wavelength Range:
400-700nm
Lighting Source:
LED (Full Wavelength Balanced LED Light Source)
Illumination And Viewing System:
D/8,Specular Component Included(SCI)
Measurement Time:
1.5s
Wavelength Interval:
10nm
Interface:
USB,Bluetooth
Aperture:
8mm
Inter-instrument Agreement:
ΔE*00<0.4
Product Description

Color Meter Se For Measuring Color Difference With Mobile Phone APP Build-In RAL NCS Pantone Color Shades



The colorimeter SE differs from conventional colorimeters. It is compact and can be placed in the user pocket, making it more convenient to carry; At the same time, the D/8 structure of a universal spectrophotometer is adopted, making the measurement more accurate; This instrument can be wirelessly connected to Android or iOS devices and can manage the colors on the phone; It has a color number search to find the desired color. Widely used for color control in industries such as plastics, printing, packaging, textiles and clothing.



ColorMeter Se will take you into a new world of color management; It can be widely used to measure color value, color difference value and find similar color from color cards for printing industry, paint industry, textile industry, etc.





Part 1. Instrument Function Introduction
1. Measure Color Value
 Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate.
 Adopt spectral sensor to provide reflectance data which make its performance much better than colorimeter.
 To get correct L*a*b, L*Ch, RGB, Hex and other color value under light source D65 or D50.
 It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds of illuminants.

SE Portable Color Meter Measure Color Value, Whiteness / Yellowness Index, Color Fastness, Mobile APP 0



SE Portable Color Meter Measure Color Value, Whiteness / Yellowness Index, Color Fastness, Mobile APP 1

Operate on Instrument





SE Portable Color Meter Measure Color Value, Whiteness / Yellowness Index, Color Fastness, Mobile APP 2

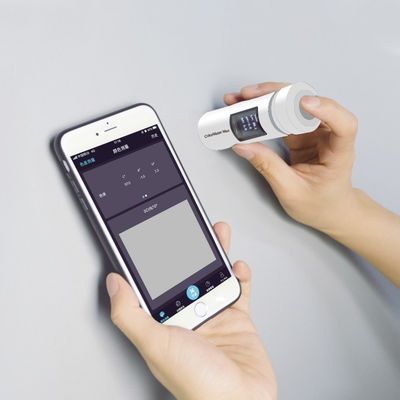

Operate on Mobile Phone APP





2. Measure Color Difference Value
 “Pass” or “Fail” judgment can be seen from both instrument and APP.
 ΔE *ab, ΔE * CH and other color difference formulas, display color difference value, color difference evaluation results.
 Connect to App for color difference evaluation, color difference tolerance and parameters can be set in APP.





3. Portable and Massive Color Card Database
 Bluetooth to connect with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards.
 No need to carry big and heavy color card, we can find color card database from Colormeter Pro APP and find the closed/similar color easier and faster.





SE Portable Color Meter Measure Color Value, Whiteness / Yellowness Index, Color Fastness, Mobile APP 3





4. Artificial Intelligence for Accurately Measure Color
 AI-based color search engine for accurately measure color;
 Color can be collected anywhere and anytime.



SE Portable Color Meter Measure Color Value, Whiteness / Yellowness Index, Color Fastness, Mobile APP 4





5. Innovation Design for Auto Black and White Calibration
 Auto instrument black and white calibration for easier and correct color test
 APP will remind for calibration if instrument works for long time
 From APP we can do manual calibration and set calibration interval.




6. Single Instrument for Test and Save Test Value
 1.14 inches IPS display screen to show color information.
 Data can be saved on instrument and instrument data can be synced into APP.




7. Cloud database, more convenient to view and upload
 Official color card databases are available.
 Personal users can update color information to cloud and share between different instruments which make color management much easier.
 Enterprise users can create and manage their own color card library and formula information in the cloud and share the information to their customers and suppliers through the unique invitation code.





8. Packing List

SE Portable Color Meter Measure Color Value, Whiteness / Yellowness Index, Color Fastness, Mobile APP 5



Name Qty.
Instrument 1
Type-C Cable 1
Operate Manual 1





9. Technical Data



name

ColorMeter SE

(Basic Edition)

ColorMeter Pro

(Professional edition)

ColorMeter Max

(Enhanced version)

Illumination and Viewing system


D/8,Specular Component Included(SCI)

Measurement index


CIE-Lab,△E*ab,reflectance curve




Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color


Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM


E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby),


Yellowness Index,(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM)


Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density


CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength





Lighting source


LED (Full Wavelength Balanced LED Light Source)

Aperture
8mm
Wavelength interval
/

10nm
Wavelength range
/

400-700nm
Stability
ΔE≤0.1

ΔE≤0.05
Inter-instrument agreement
ΔE*00<0.4

ΔE*00<0.2
Measurement time
1.5s

1s
Interface
USB (charging only), Bluetooth

USB,Bluetooth
Light source conditions
D65


A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,


CWF,U30,U35,DLF,NBF,TL83,TL84

Observer
10°

2° and 10°
Screen
IPS full color screen(135*240,1.14inch)
Battery


5000 consecutive measurements can


be made with a single full charge


A single full charge can be measured 10000 times continuously
Calibration
Automatic calibration
Language
Chinese, English
Software support
Andriod,iOS

Andriod,iOS,Windows
Weight
About 90g
Volume
Diameter: 31mm, height: 102mm

※ Measure the standard deviation of whiteboard 30 times every 5S

※※Measured average value of 12 color bricks of BCRA Ⅱ series
