Home > Products > Portable Color Spectrophotometer > CR30 Portable Color Spectrophotometer One-Key Measurement Android /IOS / Windows

CR30 Portable Color Spectrophotometer One-Key Measurement Android /IOS / Windows

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CR30

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton box

Delivery Time: 5-7 days

Payment Terms: T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

One-Key Measurement Portable Color Spectrophotometer

,

Windows Handheld Color Spectrophotometer

Lighting Source:
LED(Full Band Balanced LED Light Source)
Accuracy:
0.1
Geometry:
45/0
Observer:
2°,10°
Test Time:
1.0s
Interface:
USB,Bluetooth
Test Index:
RGB, Hex, Lab, LCH, HSB, LRV, Spectral Reflectance, CIE LAB, CIE LCH, Hunterlab, CIE Luv, XYZ, YXY, RGB,Chromatic Aberration( Δ E*ab, Δ E*cmc, Δ E*94, Δ E*00), Whiteness (ASTM E313-00, ASTM E313-73, CIE / ISO, AATCC, Hunter, Taubebergerstensby), Yellown
Wavelength Interval:
10nm
Illumination Aperture:
4mm
Illuminants:
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Lighting Source:
LED(Full Band Balanced LED Light Source)
Accuracy:
0.1
Geometry:
45/0
Observer:
2°,10°
Test Time:
1.0s
Interface:
USB,Bluetooth
Test Index:
RGB, Hex, Lab, LCH, HSB, LRV, Spectral Reflectance, CIE LAB, CIE LCH, Hunterlab, CIE Luv, XYZ, YXY, RGB,Chromatic Aberration( Δ E*ab, Δ E*cmc, Δ E*94, Δ E*00), Whiteness (ASTM E313-00, ASTM E313-73, CIE / ISO, AATCC, Hunter, Taubebergerstensby), Yellown
Wavelength Interval:
10nm
Illumination Aperture:
4mm
Illuminants:
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Product Description

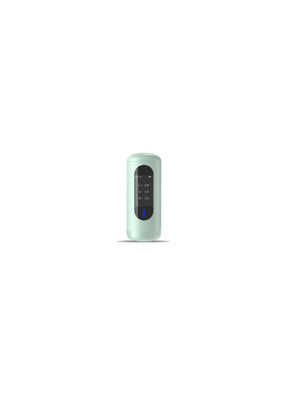

CR 30 Spectral Colorimeter

Products Description

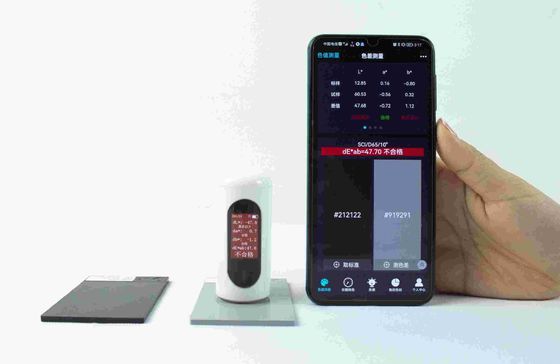

The CR-30 colorimeter adopts 45°/0 measurement structure, which is more consistent with the human eye evaluation color. Colorimeter has small volume and is easy to carry; The instrument can be wirelessly connected to Android or IOS devices, and color management can be done on the phone.

  • Automatic calibration

  • 45 ° / 0 measuring structure

  • Single machine or connected mobile phone measurement

  • Lipstick size volume, more convenient to carry



Product Features

Automatic calibration, one-key measurement, get results in 1s

Adopt 45°/0 geometry that is more in line with the color evaluation by the human eye

Can be used standalone or connect to App

Software supported: Android, iOS, Windows QC software

Magnetic calibration box

Lipstick-size, more convenient to carry

Technical Parameters


Name

CR10
(No screen Professional Edition)

CR20
(Professional version with screen)

CR30
(Screen enhanced)

Geometry
45/0
Test Index


RGB,Hex,Lab,LCh,HSB,LRV,
CMYK(A,T,E,M),XYZ,Yxy,
ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00


RGB, hex, lab, LCH, HSB, LRV, spectral reflectance, CIE LAB, CIE LCH, hunterlab, CIE luv, XYZ,
YXY, RGB,Chromatic aberration( Δ E*ab, Δ E*cmc, Δ E*94, Δ E*00),

Whiteness (ASTM e313-00, ASTM e313-73, CIE / ISO, AATCC, hunter, taubebergerstensby),
Yellowness (ASTM d1925, ASTM e313-00, ASTM e313-73),Blackness (my, DM),


color fastness, color fastness, tint (ASTM e313-00),Color density CMYK (a, t, e, m),
homochromatic spectrum index milm, Munsell, hiding power, power (dye strength, coloring power)

Lighting source
LED(Full band balanced LED light source)
Illumination aperture
4mm
Wavelength interval
10nm
Wavelength range
400nm-700nm
Short term repeatability
ΔE*00≤0.1

ΔE*00≤0.05
Inter-instrument agreement
ΔE*00<0.5

ΔE*00<0.4
Accuracy
0.1

0.01
Test time
1.0s
Interface
USB,Bluetooth
Illuminants
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer
2°,10°
Screen
No screen

IPS full color screen(135*240,1.14inch)
Battery capacity
5000 consecutive measurements can be made with a single full charge

A single full charge can be measured 10000 times continuously
Language
Chinese, English
Calibration
Automatic calibration
Software support
Andriod,IOS,Wechat applet,Windows
Weight
About 75g
Size
Diameter: 33mm, height: 84mm
Storage
App mass storage


※ Measure the standard deviation of whiteboard 30 times every 5S
※※ Measured average value of 12 color bricks of BCRA Ⅱ series


Standard accessories
Instrument * 1, USB data cable * 1, manual * 1
