Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: FS-50
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton box
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Visualfield: |
25.36° |
Covering Width: |
54m@h120m |
Sampling Rate: |
128 Line/S |
Ground Resolution: |
2.8cm@h120m |
Digitalizing Bit: |
12bit |
Space Resolution: |
1920 |
Imaging Sensor: |
1/1.1 Inch CMOS |
Effective Pixels: |
1920 |
Shutter Type: |
Global Shutter |
Optical Window: |
High Transmittance Optical Glass Window |
Visualfield: |
25.36° |
Covering Width: |
54m@h120m |
Sampling Rate: |
128 Line/S |
Ground Resolution: |
2.8cm@h120m |
Digitalizing Bit: |
12bit |
Space Resolution: |
1920 |
Imaging Sensor: |
1/1.1 Inch CMOS |
Effective Pixels: |
1920 |
Shutter Type: |
Global Shutter |
Optical Window: |
High Transmittance Optical Glass Window |

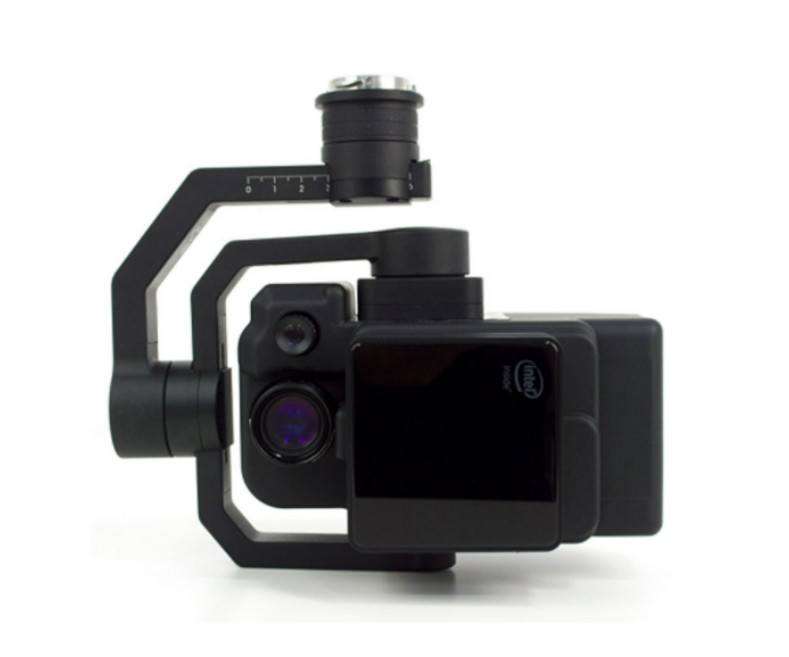

FS-50 series multi-spectral camera
FigSpec FS-50 series is a new generation of UAV-based multi-spectral camera launched by Color Spectrum Technology Company, adapted to DJI M350/M300RTK flight platform, with 30-480 spectral channels and 2K resolution.
It can meet the application needs of precision agriculture, military defense and homeland security, disaster prevention and forestry monitoring, river and lake ecology, target identification and other industries.
Ultra-high spectral channels: 30-480 spectral channels (different models)
2K spatial resolution
Global shutter, 12bit high precision sampling data
Ground station real-time preview data acquisition
DJI X-Port control and power supply, 512GSSD mass storage
Dji M350/M300 RTK UAV customization, plug and play
FIGSPEC UAV real-time flight control software, FIGSPEC Merage puzzle software, FIGSPEC Studion image analysis software
|
|
|
|
|
|
|
|
|
|
|
60 | 90 | 120 | 150 | 180 |
|
|
output one wavelength every 20nm |
output one wavelength every 10nm |
output one wavelength every 6.66nm |
output one wavelength per 5nm |
output one wavelength per 4nm |
output one wavelength per 3.33nm |
|
|
3.5nm |
3.5nm |
3.5nm |
2.5nm |
2.5nm | 2.5nm |
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
Visualfield |
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
|
|
|||||
|
Workloss |
|
|||||
|
|
|
|||||
Data storage space |
|
|||||
|
|
|
|||||
|
|
|
|||||
