High Accurancy Benchtop Spectrophotometer CS -821N For Textile Color Matching Masterbatch Granules Color Measurement
Benchtop Spectrophotometer CS-821N to Aanalyzer Data Color of Masterbatch Granules ,Textile ,Painting and Coating Color Management
Part 1. Desk-top Spectrophotometer Introduction
CS-821N is the bench-top spectrophotometer with excellent repeatability. Instrument is with auto calibration function to guarantee the short term and long term repeatability even after drastic changes in the environment.
It is an smart, simple operate and high precise spectrophotometer. It adopts 7 inches touch screen, full wavelength range, Android operate system. Illumination : reflectance D/8° and transmittance D/0°(UV included / UV excluded), high accuracy for color measurement, large storage memory, PC software, because of above advantages, it is used in laboratory for color analysis and communication.
Part 2. Desk-top Spectrophotometer Parameter
| Illumination/ Viewing System |
Reflectance: d/8(Diffused illumination, 8 degree viewing) Simultaneous measurement of SCI/SCE, conform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 condition C, ASTM E1164,ASTM-D1003-07 Transmittance d/0(Diffused illumination, 0 degree viewing ) |
| Sensor | Silicon Photodiode Array |
| Grating Method | Concave Grating |
| Sphere Diameter | 152mm |
| Wavelength | 360-780nm |
| Wavelength Pitch | 10nm |
| Half Band Width | 5nm |
|
Reflectance Range Resolution |
0-200% 0.01% |
| Light Source | Pulse Xenon Lamp and LED |
| UV Measurement | Include UV, 400nm cut, 420nm cut, 460nm cut |
| Measurement Time |
SCI/SCE < 2s SCI+SCE < 4s |
| Measurement Aperture |
Reflectance: XLAV Φ30mm, LAV 18mm,MAV Φ11mm,SAV Φ6mm Transmittance:Φ25mm (Auto aperture size recognition) |
| Transmittance Sample Size | No limit on sample width and height, thickness ≤50mm |
| Long Term Repeatability | XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 (20℃±10℃ arbitrary temperature change, white tile is measured every hour within 24 hours) |
| Repeatability | XLAV Spectrum Reflectance/Transmittance: standard deviation within 0.1% |
| XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 * When a white calibration plate is measured 30 x at 10-second intervals after white calibration | |
| Inter-Instrument Agreement | XLAV ΔE*ab 0.15 (BCRA Series II, Average measurement of 12 tiles, at 23℃) |
| Observer | 2° and 10° |
| Illuminants | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84 |
| Language | English, Russian, Spanish, Portuguese, Japanese, Thai, Korean, German, French, Polish, Chinese (simple and traditional), |
| Display | Reflectance and Transmittance graph/value, color value, color difference values, pass/fail, color simulation, color assessment, haze, liquid chromaticity values, color tendency |
| Color Spaces | L*a*b, L*C*h, Hunter Lab, Yxy, XYZ |
| Other Indices |
WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313-00),Metamerism index milm, stain fastness, color fastness, ISO brightness, R457, A density, T density, E density, M Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze, Total Transmittance, Opacity, Color Strength |
| Color Difference | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(hunter),555 shade sort |
| Storage Memory | 8 GB U Disk for data storage and transfer |
| Screen Size | 7 Inches Touch Screen |
| Operate System | Android |
| Power Adaptor | 12V/3A |
| Operate Temperature | 5-40℃(40-104F), relative humidity 80% (at 35℃) no condensation |
| Storage Temperature | -20-45℃(-4-113F), relative humidity 80% (at 35℃) no condensation |

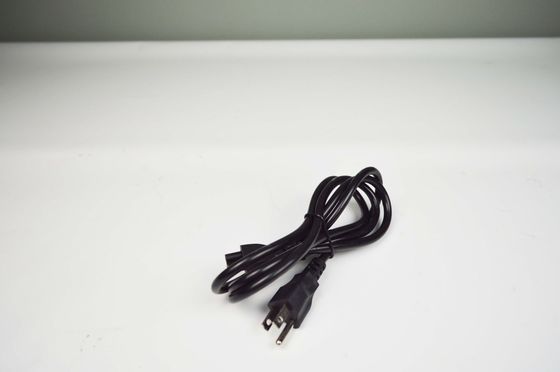

| Accessories | Power Adaptor, USB Cable, fixture for transmittance, U disk (PC software), Black Calibration Cavity, White and Green Calibration Tile, Reflectance Test Support,30mm,18mm,11mm and 6mm apertures, reflectance sample fixture, Glass Cell 40x10mm |

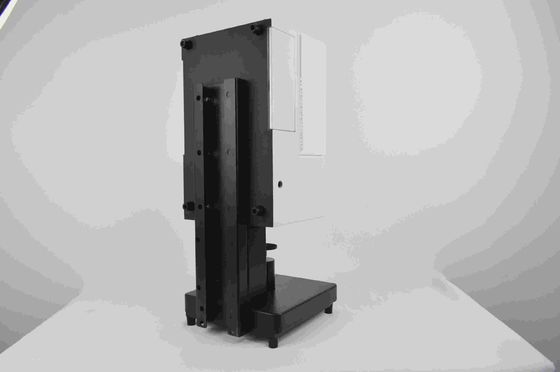

| Optional Accessories | Heating Fixture for Transmittance, Vertical Support and Pneumatic ram for downward measurement, Reflectance fixture for small size sample, Reflectance Glass Cell Support, Corrosion-Resistant Protective Plate (non-removable), Sample Holder for Fiber, Film Fixture, Transmittance Fixture for Small Aperture, Trolley Case, European Standard Plug, American Standard Plug |
| Interface | RS-232,USB,USB-B |
| Other Function |

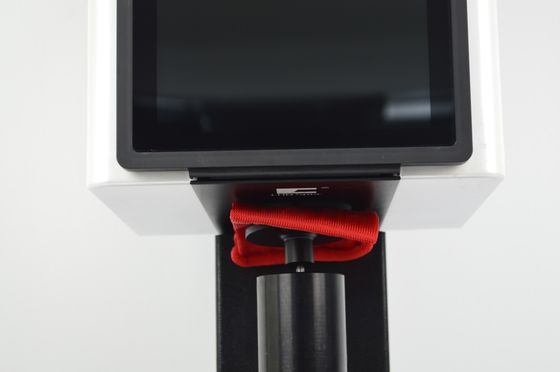

1. Camera to view measurement area; 2. Support horizontal, vertical and downward measurement method (need optional accessories to support for downward measurement); 3. Auto humidity and temperature compensation function. |
Part 3. Desk-top Spectrophotometer Advantages
1. Automatic calibration
2. Excellent long-term repeatability, ensure excellent measurement repeatability even after environment changes
3. It has two lamps: pulsed xenon and LED
4. 24 kinds of illuminants and more than 40 measurement indices
5. Temperature and humidity compensation function
6. Seven -inch touch screen, Android operate system
7. Dual optical paths spectrum analysis technology
8. Support SCI+SCE simultaneous rapid measurement
Instrument adopts D/8 geometry which is highly recommends by CIE (International Commission on Illumination) to meet color measurement of different industries. It supports both SCI (specula component included) and SCE (specular component excluded) mode for better detect of color change. Fast SCI+SCE measurement, test time only need less than 4s.
9. Rotatable Touch Screen with Android Operate System
Screen position and direction can be adjusted according to the instrument test methods.

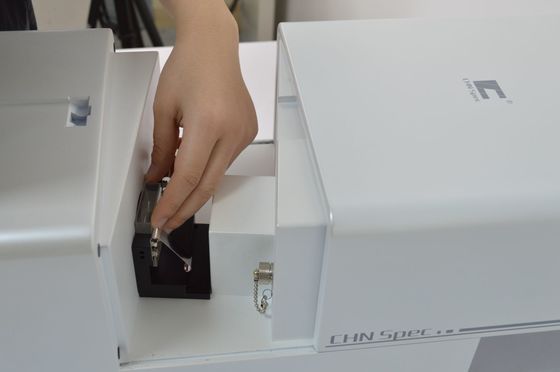

10. Open Transmittance Measurement Area, no limit on sample size
11. Different Kinds of Accessories for simple measurement
It contains 15 kinds of standard and 12 kinds of optional accessories to measure different kinds of materials
12. Accessory Drawer to Protect and Store Accessories
13. Switchable Reflectance Apertures (30mm,18mm,11mm and 6mm)
14. Four Kinds of UV Test Modes for Fluorescence Material Measurement
Part 4. Bench-top Spectrophotometer Structure
Part 6. More Pictures of Benchtop Spectrophotometer
