Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE Certificate
Model Number: DS-806
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton box with foam package
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 per month1、Product features
Wavelength Range: |
400-700nm |
Wavelength Interval: |
10nm |
Measurement Aperture: |
50mm |
Operating Temperature Range: |
5–40°C, Relative Humidity ≤80% (at 35°C), No Condensation |
Storage Temperature Range: |
-20–45°C, Relative Humidity ≤80% (at 35°C), No Condensation |
Data Interface: |
USB |
Wavelength Range: |
400-700nm |
Wavelength Interval: |
10nm |
Measurement Aperture: |
50mm |
Operating Temperature Range: |
5–40°C, Relative Humidity ≤80% (at 35°C), No Condensation |
Storage Temperature Range: |
-20–45°C, Relative Humidity ≤80% (at 35°C), No Condensation |
Data Interface: |
USB |
1. Product Features

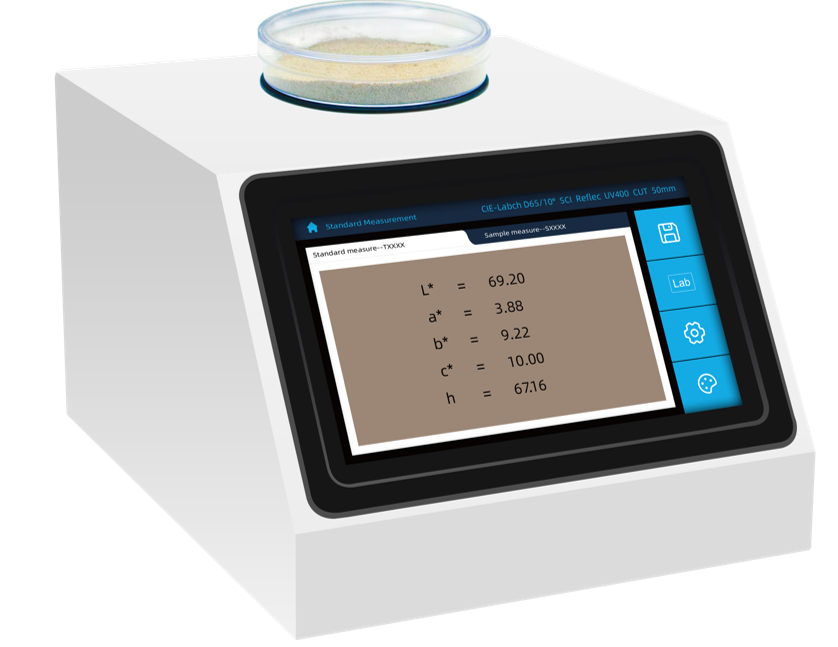

50mm ultra-large aperture, suitable for measuring coffee beans of various irregular shapes
7-inch touchscreen, simple and user-friendly operation
One-click measurement of SCAA, HCCI, and roasting degree
Capable of measuring color values and performing color difference comparison for coffee beans
2. Technical Parameters
| Model | DS-806 |
| Illumination Method | D/8, including specular reflection light (SCI) |
| Integrating Sphere Diameter | 100mm |
| Light Source | Full-spectrum balanced LED light source |
| Wavelength Range | 400-700nm |
| Reflectance Measurement Range | 0-200%, resolution 0.01% |
| Wavelength Interval | 10nm |
| Measurement Aperture | 50mm |
| Observation Light Source | D65 |
| Standard Observer | 10° Standard Observer |
| Measurement Time | Approx. 1 second |
| Color Space | CIE LAB |
| Chromaticity Indexes | SCAA value, HCCI index, Roasting Degree |
| Color Difference Formula | ΔE*ab |
| Repeatability | Standard deviation ΔE*ab within 0.03 (Condition: after calibration and warm-up, measure the white plate 30 times at 3s intervals and take the average) |
| Inter-instrument Error | ΔE*ab ≤ 0.4 (Based on the average value of 12 BCRA II color tiles) |
| Maximum Data Storage | 10,000 records |
| Dimensions | 202*264*152mm |
| Weight | Approx. 3kg |
| Power Supply | 100~240V 50/60HZ |
| Measurement Mode | Single measurement, average measurement |
| Light Source Lifetime | 10 years / 2 million measurements |
| Display | 7-inch IPS full-view LCD screen |
| System Languages | Simplified Chinese, English |
| Data Interface | USB |
| Operating Temperature Range | 5-40°C, relative humidity ≤80% (at 35°C), no condensation |
| Storage Temperature Range | -20-45°C, relative humidity ≤80% (at 35°C), no condensation |
| Standard Accessories | Petri dish, black cavity, white calibration plate, data cable, power cable |
