UV-enhanced Silicon Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement

Place of Origin China
Brand Name CHNSpec
Certification CE
Model Number CS810
Minimum Order Quantity 1
Price negotiable
Packaging Details cartoon box
Delivery Time 5-7days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 1000pcs per month
Product Details
Wavelength 400-700nm Detector Dual Optical Sensor Array
Illumination Light Source CLEDs Mesurement Range 0-200%
Resolution 0.01% Repeatability Transmittance 0.08%
Repeatability Chromaticity Value 0.015 Inter-instrument Agreement 0.2
High Light

spectrophotometer colour matching

,

colour measurement spectrophotometer

Leave a Message
Product Description

Bench-top Spectrophotometer CS-810 Introduction


CS-810 Transmittance spectrophotometer is good performance and specially designed for testing the transparent material’s transmittance, absorbance, chromaticity value and other parameters.

The instrument adopts the geometry of D/0, integration of the full band LED composite light source, double beam optical system, ETC every-test calibration technology, which makes the instrument reaches a resolution of 0.0001, deviation of the transmittance within 0.08% and chromatic value △E*ab 0.015.



UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 0UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 1UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 2UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 3UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 4UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 5UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 6UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 7UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 8UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 9UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 10UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 11UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 12UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 13



Brief Introduction
1. D� Geometry

UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 14


2. It is suitable for testing clear, transparent and translucent products such as glass, oil, plastic and other materials color.


UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 15UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 16UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 17
3. Adopt UV enhanced silicon photodiode
Extend the transmittance measurement range from 0~100% to 0~200%

UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 18UV-enhanced Silicon  Photodiode Transmittance Spectrophotometer For Glass and Liquid Color Measurement 19

4. It can also be used for measure APHA/Pt-Co, Gardner, ASTM color, Yellowness Index for liquid and transparent materials.

5. Color QC software
Our spectrophotometer comes with free color QC software, which is applicable in various industries for management of color data. It is used for store test result, generate test report and print test report after connect with printer.

7. Technical Data

TypeCS-810
Illuminationd/0(Diffused illumination, 0°viewing)
SCS optical engine(light splitting and integration system),( conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphereΦ40mm,Alvan diffused reflection surface coating
Illumination Light sourceCLEDs(entire wavelength balanced LED light source)
Sensordual light path sensor array
Wavelength range400-700nm
Wavelength Pitch10nm
Half Band Width5nm
Reflectance Range0-200%
Reflectance Resolution0.01%
Observer Angle2°/10°
Illuminants

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
CWF,U30,DLF,NBF,TL83,TL84

Data being displayedTransmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports
Measurement time interval1 second
Measurement time1 second
Color spacesCIE-L*a*b,L*C*h,CIE-L*u*v, XYZ, Yxy, Transmittance, Hunter-lab
Color difference formulas

ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00

ΔE*ab (Hunter)

Other indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),
YI(ASTM D1925,ASTM E313-00,ASTM E313-73),
Tint(ASTM E313-00,CIE,Ganz) , APHA, Pt-Co, Gardner, Saybolt, Astm color

RepeatabilityTransmittance : standard deviation within 0.08%
Chromaticity values: Δ E*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals, Maximum: 0.03)
InterfaceUSB
Data Storagemass storage
Light source Lifetime5 years, 1.5 million tests
Size475*340*150mm(L*W*H)
Weightabout 7kg
Work temperature range0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Storage temperature range-25℃ to 55℃,relative humidity 80% or below(at 35°C ), no condensation
Standard accessoriesPower adaptor , color QC software, driving software, USB cable, black calibration tile, 40*10mm cuvette

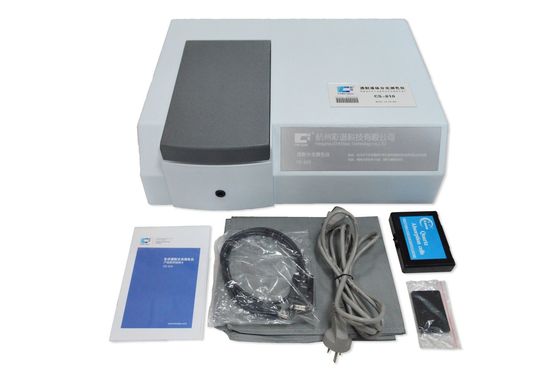

8. Packing List


Qty.NameQty.Name
1Main Instrument1Power Cable
1Operating Manual1USB Cable
1Driving Software1Black Calibration Tile
1Color QC Software1Glass Cell 40x10mm


9. Longest Warranty Time:1 year
a. One Year Guarantee Time.
b. If testing data is not correct, we can do refund.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
