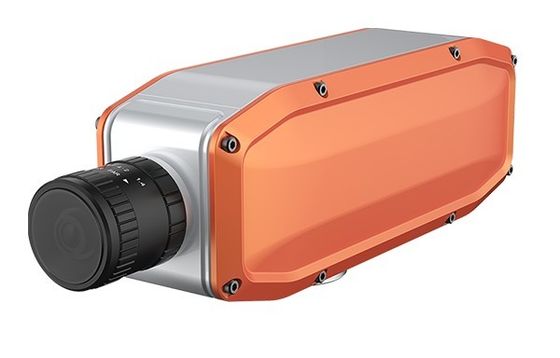

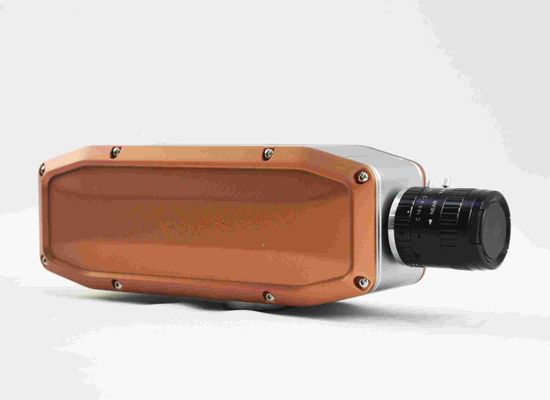

FS-12 Imaging Hyperspectral Camera With 400-1000nm Wavelength Colorimeter
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Illuminant||Passive (without Illuminant Inside Device)||Spectroscopic Method||Grating Spectroscopy|
|Wavelength Range||400-1000nm||Spectral Bands||1200|
|Spectral Sampling/pixel||2.5nm (max. 1.5nm)||Slit Width||25um|
|Transmission Efficiency||＞60%||Spatial Pixel Number||1920|
|Imaging Speed||Full Spectral Range 41Hz, 390Hz After ROI||SNR(Peak)||600/1|
1000nm Hyperspectral Imaging Camera,
FS11 Imaging Hyperspectral Camera,
400nm Hyperspectral Imaging Camera
Cheaper FS11 Imaging Hyperspectral Camera With 400-1000nm Wavelength Colorimeter
FigSpec Series Cheap Hyperspectral Imaging Camera Price With Visible Wavelength Range 400-700nm
FigSpec FS Series Cheap Hyperspectral Imaging Camera Price with Visible / NIR Wavelength Range 400-700nm and 400-1100nm
Hyperspectral Camera Introdcution
The FX series hyperspectral camera adopts a high light transmittance optical design (F/1.7), which raises the camera's light-gathering ability to a new level.Only need a line light source to meet the equipment needs.However, other spectroscopic technologies (adjustable filters and linear filters, etc.) require a larger area of light source and tens of times the intensity of the light source when the data obtained has the same signal-to-noise ratio.Covering 400-100nm, using scan imaging method, the full-spectral imaging speed can reach 670FPS, and it has a band selection (ROI) function to achieve higher speed.
Hyperspectral camera FS series is designed for industrial and laboratory use. It work in a line-scan mode in the visible and near-infrared (VNIR) area. It is widely used to scan the sample and get its reflectance under each pixel. The result can be used for color quality control or material seperation by different content. It can be used in lab or installed in the production line. It is widely used in agriculture industry, food insutry, screen industry, textile industry and many other industries.
Hyperspectral Camera Advantages
1. Machine vision, color measurement, visible light / near-infrared detection hyperspectral solution
2. Spectral range:400-700nm / 400-1000nm, spectral sampling/pixel 2.5nm, max. 1.5nm (Changing the slit width can achieve higher spectral resolution, but will affect the signal strength)
3. Imaging speed: Full Spectral range 41Hz,390Hz after ROI
4. Support multi-region ROI
5. Color difference test : print, textile and other industries surface color test, texture detection, with special light source and control system, the repeatability of single pixel of color measurement can reach dE*ab<0.1.
Hyperspectral Camera Working Principle
Hyperspectral Camera Technical Data
