Machine Test Color Device To Measure Plastic Color Lab And Color Difference Delta E Ab Color Spectrophotometer

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton box

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

40mm Integrating Sphere Color Spectrophotometer

,

Measure Plastic Color Spectrophotometer

,

Black Color Spectrophotometer

Color:
Black
Geometry:
Geometry
Integrating Sphere Diameter:
40mm
Light Source:
LED
Reflectance Range:
400-700nm
Repeatability:
0.08
Inter-instrument Agreement:
0.25
Measurement Time:
2s
Software Support:
Android/ IOS / Windows
Calibration:
Auto
Color:
Black
Geometry:
Geometry
Integrating Sphere Diameter:
40mm
Light Source:
LED
Reflectance Range:
400-700nm
Repeatability:
0.08
Inter-instrument Agreement:
0.25
Measurement Time:
2s
Software Support:
Android/ IOS / Windows
Calibration:
Auto
Product Description

Machine Test Color Device to Measure Plastic Color Lab and Color Difference Delta E ab Color Spectrophotometer





Color Spectrophotometer CS-500 Introduction

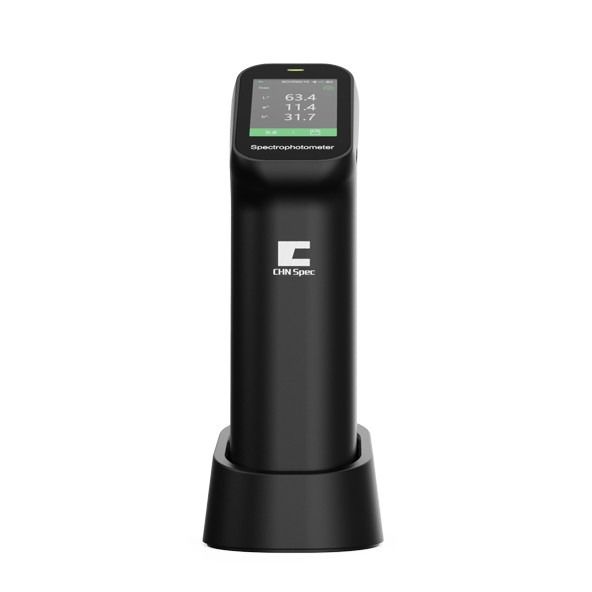

Portable spectrophotometer CS-500 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation... it will fully upgrade the user experience.



Machine Test Color Device To Measure Plastic Color Lab And Color Difference Delta E Ab Color Spectrophotometer 0





Color Spectrophotometer CS-500 Features



1). 20 kinds of color indexes and 26 kinds of illuminants



Spectrophotometer CS-500 supports 26 kinds of illuminants such as D65/D50,etc. It can get the value of reflectance, CIE-Lab,CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.





2). Excellent inter-instrument Agreement



inter-instrument agreement <0.3 which ensures test results consistency of multiple devices.



Machine Test Color Device To Measure Plastic Color Lab And Color Difference Delta E Ab Color Spectrophotometer 1





3). Auto calibration



The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.





4). Multi-function calibration base

The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one. When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.



Machine Test Color Device To Measure Plastic Color Lab And Color Difference Delta E Ab Color Spectrophotometer 2Machine Test Color Device To Measure Plastic Color Lab And Color Difference Delta E Ab Color Spectrophotometer 3





5). Connect to the mobile device App to expand more functions

Connect to APP to find the similar color from different color swatches. Personal color database can also be established in the cloud and samples saved in cloud can be set into target for color different test. From APP, we can also obtain instrument data or download data to the instrument.



Machine Test Color Device To Measure Plastic Color Lab And Color Difference Delta E Ab Color Spectrophotometer 4





Color Spectrophotometer CS-500 Parameters





Model Spectrophotometer CS-500
Geometry D/8 , SCI
Light Source LED
Color Spaces and Indices

Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-

73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM

D1925,ASTM E313-00,ASTM E313-73), Blackness

(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength

Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer Angles 2°,10°
Sensor 256 pixel CMOS sensor
Wavelength Interval 10nm
Wavelength Range 400-700nm
Reflectance Resolution 0.01%
Repeatability

Chromaticity value:

Max. :dE*ab< 0.1

Average :dE*ab< 0.05

Standard deviation within ΔE*ab 0.03 (when a white tile is measured 30 times at 5-seconds interval)

Reflectance:

Standard deviation < 0.1%

Illumination Area/Aperture MAV:Φ8mm/Φ11mm
Inter-instrument agreement

ΔE*ab<0.3

(BCRA Series Ⅱ, average measurement of 12 tiles,MAV/SCI)

Test Time About 2s
Storage APP mass storage
Battery Rechargeable, 8000 times continuous tests, 3.7V/3000mAh
Screen IPS Full Color Screen,2.4 inches
Interface USB,Bluetooth
Software Android, IOS, Windows
Instrument Size L x W x H (77.8mm x 53.2mm x 185.7mm)




Color Spectrophotometer CS-500 Application
