Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-280
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Illumination System: |
D/8,SCI |
Measuring Caliber: |
11mm (optional 15mm,4mm,6mm) |
Storage: |
1000 Test Results |
Instrument Size: |
77x86x210mm |
Measurement Time: |
2 Second |
Measuring Range: |
0-200% |
Repeatability: |
Below 0.08 |
Measuring Light Source: |
LED |
Languages: |
English And Chinese |
Device Weight: |
550g (without Battery) |
Food Laboratory Colorimeter for Food Color Quality Control
High Precise Color Measurement Car Accessories Spectro Colorimeter

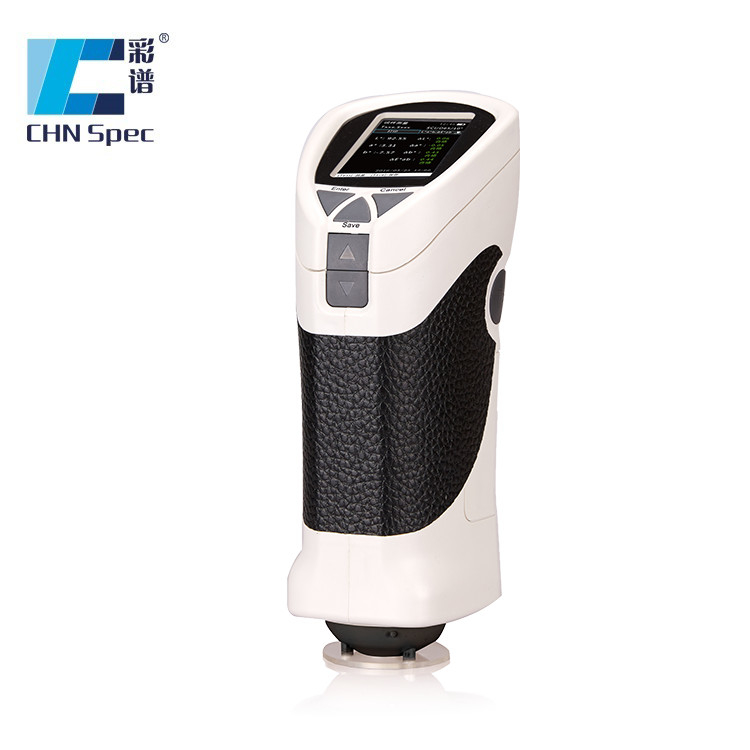

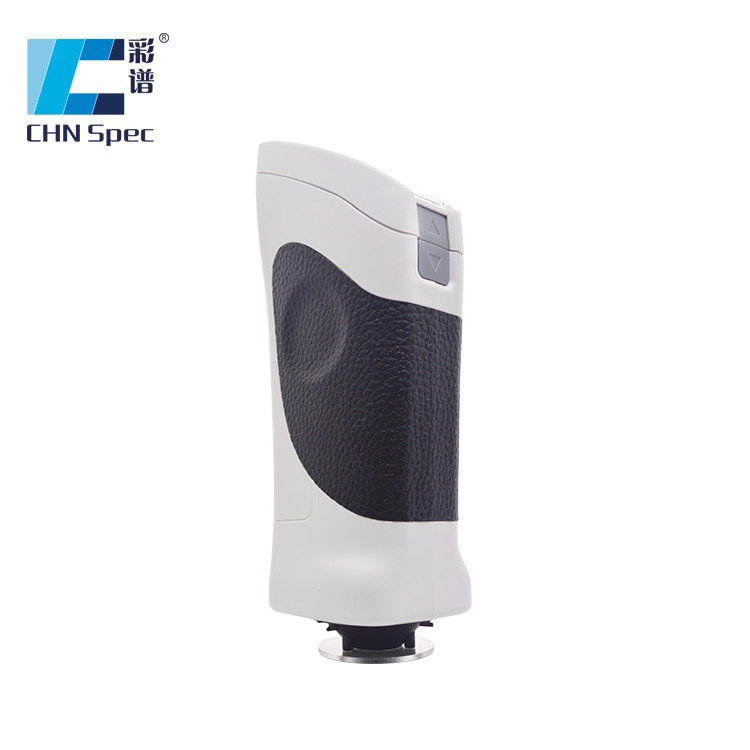

Spectro Colorimeter Introduction
Colorimeter is also called color measurement Instrument.It is widely used in different industries such as skin,comestic,textile,plastic,printing, paint,weaving,dyeing,etc.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
Spectro Colorimeter Advantages
1). The highest precision colorimeter
2). Adopts spectral measurement working theory which greatly improve colorimeter accuracy
3). Patented technology guarantees measurement stability
4). Obtain national metrology certification
5). Ergonomic Design
6). Mass storage memory:100 pcs targets and 200 pcs samples
Spectro Colorimeter Technical Data
| Type | CS-280 | CS-280+ |
| Illumination | di/8(Diffused Illumination, 8 degree viewing) | |
|
Integrating Sphere Size |
Φ40mm | |
| Sensor | array sensor | |
| Wavelength | 400-700nm | |
| Spectrum Resolution | 10nm | |
| Repeatability | Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) | |
| Observe Angles | 2° and 10° | |
| Light Source | A,C,D50 and D65 | |
| Display | Chromaticity value(L*a*b,L*C*h), delta E value, pass/fail, color tendency, average, generate test report | |
| With camera to see the measurement area | ||
| Color Difference | ΔE*ab,ΔE*CH | |
| Color Space | CIE-L*a*b,L*C*h | CIE-L*a*b,L*C*h,XYZ,Yxy |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73) |
|
| Data Storage | 20000 samples | |
| Light Source Lifetime | 5 years, 1.5 million times | |
| Other Function | without | camera view, input color swatches |
| Language | Chinese and English | |
| Interface | USB2.0 | |
| Power | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V | |
| Size | 77×86×210mm | |
| Weight | About 550g | |
Spectro Colorimeter Longest Guarantee
a. One Year Guarantee
Packing Material:canvas bag with carton box
Packing Size:290x250x230mm
Packing Weight:1.98kgs
Delivery time:1-5 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tiles |
| 1 | Color QC Software | 1 | Packing List |
