Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-810
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Size: 54x45x31cm Material: inner box: canvas bag outer box: Carton box
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Machine Weight: |
7kgs |
Machine Packing Size: |
350*300*200mm(L*W*H) |
Usage: |
Textile Color Reading Machine |
Interface: |
USB |
Data Storage: |
20000 Test Results |
Display: |
5 Inches Color Screen |
Illumination Light Source: |
CLEDs |
Sensor: |
Dual Light Path Sensor Array |
Reflectivity Range: |
0-200% |
Reflectivity Resolution: |
0.01% |
Machine Weight: |
7kgs |
Machine Packing Size: |
350*300*200mm(L*W*H) |
Usage: |
Textile Color Reading Machine |
Interface: |
USB |
Data Storage: |
20000 Test Results |
Display: |
5 Inches Color Screen |

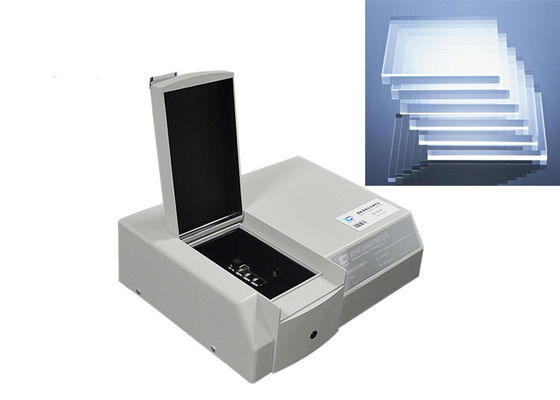

Benchtop Transparent Plastic Spectrophotometer Absorbance For Oil Color Measurement
Introduction:
CS-810 liquid spectrophotometer is designed for oil color measurement.The instrument adopts the measurement structure of D/0, integration of the full band LED composite light source, double beam optical system, ETC every-test calibration technology, which makes the instrument reaches a resolution of 0.0001, deviation of the transmittance within 0.08% and chromatic value : delta E*ab 0.015.
Specifications:
| Type | CS-810 |
| Illumination | d/0(Diffused illumination, 0°viewing) SCS optical engine(light splitting and integration system),( conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards) |
| Size of integrating sphere | Φ40mm,Alvan diffused reflection surface coating |
| Illumination Light source | CLEDs(entire wavelength balanced LED light source) |
| Sensor | dual light path sensor array |
| Wavelength range | 400-700nm |
| Wavelength interval | 10nm |
| Half spectral width | 5nm |
| Observation angle | 2°/10° |
| Measurement light source |
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 CWF,U30,DLF,NBF,TL83,TL84 |
| Data being displayed | Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports |
| Measurement time interval | 2 seconds |
| Measurement time | 0.5 seconds |
| Color space | CIE-L*a*b,L*C*h,CIE-L*u*v, XYZ, Yxy, Transmittance, Hunterlab, Munsell MI, CMYK |
| Color difference formulas |
ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555color classification |
| Other colorimetric indices | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Tint(ASTM E313-00,CIE,Ganz),Metamerism index Milm, Stick color fastness, Color fastness, APHA, Pt-Co, Gardner |
| Repeatability | light splitting reflectivity: standard deviation within 0.08% |
| color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals,Maximum:0.03) | |
| Interface | USB |
| Data storage | mass storage |
| Light source longevity | 5 years, 1.5 million tests |
| Size | 475*340*150mm(L*W*H) |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
Competitive Advantage:
1). D Structure---Diffused illumination and 0 degree viewing
2). Adopt UV enhanced silicon photodiode---Expend the transmission from 0~100% to 0~200%
3). can measure Pt-Co,Gardner Index and Saybolt color,Yellowness Index(YI) and whiteness index(WI)
4). It is suitable for testing the glass and liquid yellow degree (YI),transmission for Polycarbonate Sheets/glass/film, absorbance, chromaticity, etc.
5). Free Color QC Software
Our spectrophotometer comes with the color QC software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.
Packing List:
Packing Material:Foam with plastic bag
Outer Box: Carton box
Packing Size:540x450x310mm
Packing Weight:7kgs
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black Calibration Tile |
| 1 | Color QC Software | 1 | Glass Cell 40x10mm |
Longest Guarantee Time:
a. One Year Guarantee Time.
b. If testing data is not correct, we can do refund.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
