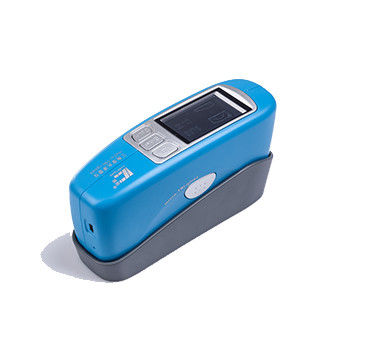

3000mAh Gloss Meter For Paint

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-300
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size:25x23x12cm
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month
Product Details
Test Angle 60 Degree Test Range 0-1000GU
Resolution 0.1GU Accuracy Conform To JJG 696 Standard For First Class Gloss Meter
Test Time Less Than 0.5s Data Storage 100 Standard Samples; 10000 Test Samples
Size 165*51*77mm Instrument Weight 400g
Language Chinese And English Battery Capacity 3000mAh
High Light

1000GU gloss meter 60 degree

,

3000mAh paint gloss measurement

,

3000mAh Portable Gloss Meter

Leave a Message
Product Description

Single Angle 60 Degree Instrument for Gloss Measuring Gloss Meter





Gloss Measuring Gloss Meter Introduction



Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics,granite tiles, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on.



Gloss Measuring Gloss Meter Advantage



1). High Precision

Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure highly precise of the measured data.Our gloss meters conform to JJG 696 standard for first class gloss meters. Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.



2). Super Stability (Patent Right No.: ZL2012201796876)

Every gloss meter made by us has done the following test:

412 calibration tests;

43200 stability tests;

110 hours of accelerated aging test;

17000 vibration test.



3). Comfortable Grab Feeling

The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and do not cause allergy. This design is for better user experience.



4). Large Battery Capacity

We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.





Gloss Measuring Gloss Meter Technical Data



Model CS-300
Test Angle 60°
Test light spot(mm) 60°:9*15
Test range 60°:0-1000GU
Resolution 0.1GU
Test modes Simple mode, standard mode and sample testing mode
Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for first class gloss meter
Test time 0.5s
Data storage 100 standard samples; 10000 test samples
Size(mm) 165*51*77 (L*W*H)
Weight About 400g
Language Chinese and English
Battery capacity 3000mAh lithium battery
Port USB, Bluetooth (optional)
Upper-PC Software Include
Working Temperature 0-40℃
Working Humidity <85%, no condensation
Accessories 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification





Gloss Measuring Gloss Meter Application



The single angle glossmeters could be widely used for measuring the glossiness of building material, electroplate, plastic products,metal products, ceramic products and automobile accessories, etc.



Ceramic Gloss Meter





Gloss Measuring Gloss Meter Packing List


Packing Material:Foam with carton box

Packing Size:250x230x120mm

Packing Weight:0.88kgs

Delivery Time:1-5 working days



Ceramic Gloss Meter



Qty. Name Qty. Name
1 Main Instrument 1 Charger Head
1 Operating Manual 1 USB Cable
1 PC Software 1 Verification Certification
1 Packing List 1 Operating Manual
