Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-300
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:25x23x12cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Test Angle: |
60° |
Test Range: |
60°:0-1000GU |
Resolution: |
0.1GU |
Accuracy: |
Conform To JJG 696 Standard For First Class Gloss Meter |
Test Time: |
Less Than 0.5s |
Data Storage: |
100 Standard Samples; 10000 Test Samples |
Size: |
165*51*77mm |
Single Machine Weight: |
400g |
Language: |
Chinese And English |
Battery Capacity: |
3000mAh Lithium Battery |
Test Angle: |
60° |
Test Range: |
60°:0-1000GU |
Resolution: |
0.1GU |
Accuracy: |
Conform To JJG 696 Standard For First Class Gloss Meter |
Test Time: |
Less Than 0.5s |
Data Storage: |
100 Standard Samples; 10000 Test Samples |
Size: |
165*51*77mm |
Single Machine Weight: |
400g |
Language: |
Chinese And English |
Battery Capacity: |
3000mAh Lithium Battery |

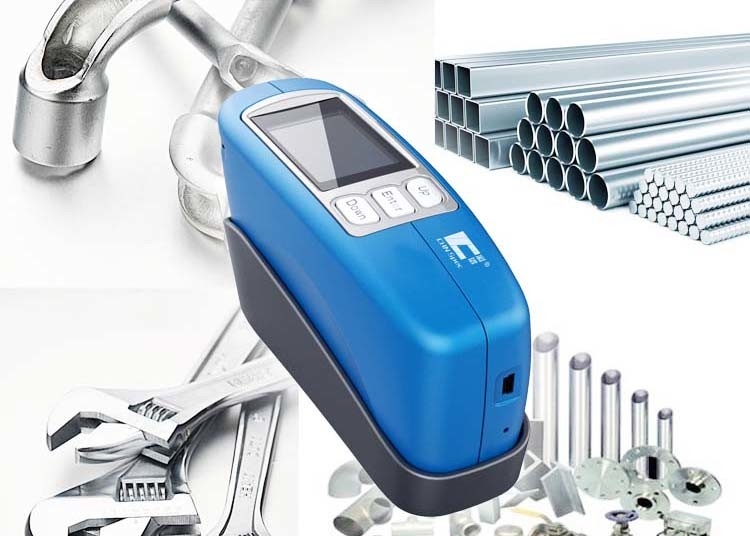

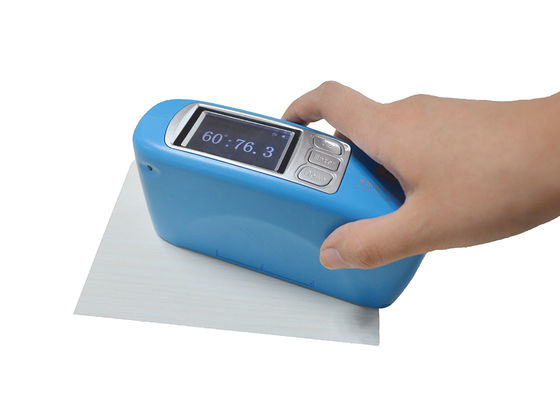

Single Angle 60 Degree Sheen Gloss Meter For Electroplate And Metal products
Introduction:
Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics,granite tiles, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on. And The single angle glossmeters could be widely used for measuring the glossiness of building material, electroplate, plastic products,metal products, ceramic products and automobile accessories, etc.
Specifications:
Model | CS-300 |
Test Angle | 60° |
Test light spot(mm) | 60°:9*15 |
Test range | 60°:0-1000GU |
Resolution | 0.1GU |
Test modes | Simple mode, standard mode and sample testing mode |
Repeatability |
0-100GU:0.2GU 100-2000GU:0.2%GU |
Accuracy | Conform to JJG 696 standard for first class gloss meter |
Test time | 0.5s |
Data storage | 100 standard samples; 10000 test samples |
Size(mm) | 165*51*77 (L*W*H) |
Weight | About 400g |
Language | Chinese and English |
Battery capacity | 3000mAh lithium battery |
Port | USB, Bluetooth (optional) |
Upper-PC Software | Include |
Working Temperature | 0-40℃ |
Working Humidity | <85%, no condensation |
Accessories | 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification |
Competitive Advantage:
1). High Precision
Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.
2). Super Stability (Patent Right No.: ZL2012201796876)
Every gloss meter made by us has done the following test:
43200 stability tests;
412 calibration tests;
43200 stability tests.
3). Comfortable Grab Feeling
The shell is made by Dow Corning TiSLV material, a desirable elastic material, a desirable elastic material.
4). Large Battery Capacity for 50000 continuous tests
We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.
Free Color QC Software:
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List:
Packing Material:Foam with carton box
Packing Size:230x220x120mm
Packing Weight:0.56kgs
Delivery Time:1-5 working days according to the type and quality ordered.
Qty. | Name | Qty. | Name |
1 | Main Instrument | 1 | Charger Head |
1 | Operating Manual | 1 | USB Cable |
1 | PC Software | 1 | Verification Certification |
1 | Packing List | 1 | Operating Manual |
