Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE Certificate
Model Number: FS-2A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton box with foam package
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 per month1、Product features
Spectral Range: |
900-2500nm |
Scaning Method: |
Built-in Push-broom |
Camera Interface: |
USB3.0 |
Operating Temperature: |
0-40°C |
Spectral Range: |
900-2500nm |
Scaning Method: |
Built-in Push-broom |
Camera Interface: |
USB3.0 |
Operating Temperature: |
0-40°C |

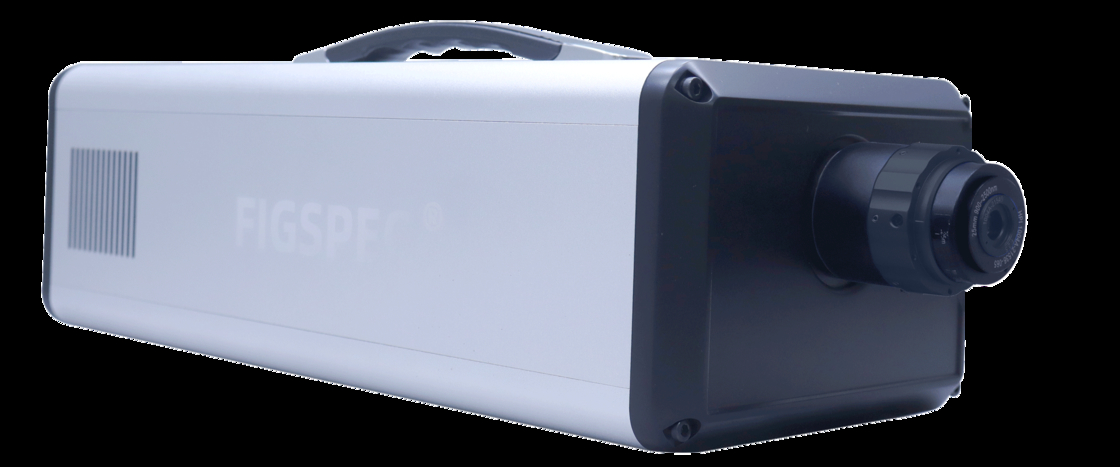

The FigSpec® series adopts a high-diffraction-efficiency transmission grating spectroscopic module combined with a high-sensitivity area array camera, integrated with built-in push-broom scanning and an auxiliary imaging camera. This design eliminates the need for an external scanning mechanism and complex focusing, making operation far more convenient. Compatible with standard C- mount lenses, it enables rapid acquisition of spectral imagery.
Shortwave Near Infrared:
Typical Application
Technical Parameters
|
Spectral
Range
|
900-2500nm |
|
Dispersion
Element
|
Transmission Grating |
|
Scaning
Method
|
Built-in Push-broom |
|
Number of Spectral
Channels
|
≥250 |
|
Number of Spatial
Channels
|
≥640×640 |
|
Spectral Sampling
Interval
|
≤6.5nm |
|
Spectral Resolution
(FWHM)
|
≤10nm |
|
F-Number
|
F/2.5 |
|
Detector
Type
|
MCT |
|
Srnsor
Size
|
≥9.6×7.68mm |
|
Pixel
Size
|
≥15um×15um |
|
Effective
Bit Depth
|
≥14bits |
|
Lens Focal
Length
|
25mm |
|
Field of View
(FOV)
|
21.7°@f=25mm |
|
Instantaneous FOV
(IFOV)
|
0.59mrad@f=25mm |
|
Cooling
Method
|
Stirling Cooling |
|
Effective Slit
Length
|
≥9.6mm |
|
Slit
Width
|
≤25um |
|
Frame
Rate
|
200fps |
|
Operating
Temperature
|
0-40°C |
|
Storage
Temperature
|
0-50°C |
|
Camera
Interface
|
USB3.0 |
|
Application
Software
|
FIGSPEC CAM, FIGSPEC Studio, Image Analysis Software
|
|
Data
Format
|
Compatible with SPE, HDR, SCP formats
|
|
Auxiliary Imaging
Fuction
|
Auxiliary viewfinder camera for monitoring the shooting area
|
|
Power
Supply
|
Built-in battery
|
